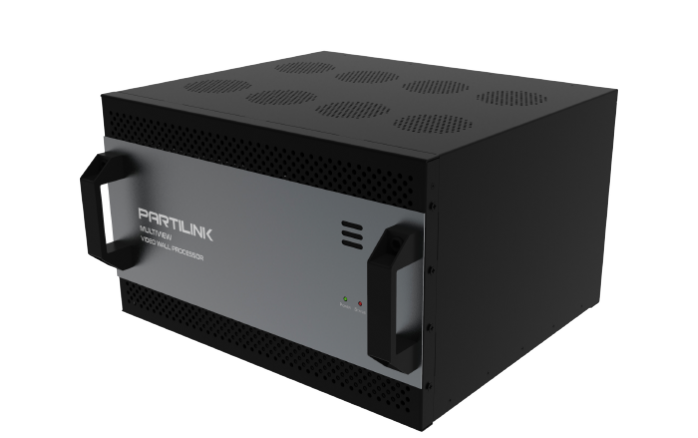

4x4 PiP MULTIVIEW VIDEO WALL PROCESSOR

V43-H04H16(4x4)
Ref: V43-H04H16
For simultaneous display of four HDMI 2.0/1.4 sources on a 16 screens video wall with output resolutions up to 4K UHD
4K @60Hz 3840 × 2160 4:4:4 user-friendly web UI, RS232, RS485, RS422 and telnet.



Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • 18 gbps (bandwidth)
  • HDMI 2.0
  • Stereo 192kbps
  • HDCP 2.2
  • Frame synchronization
  • User Friendly
  • No Virus Risk
  • RS485
  • 24-7 nonstop working
  • web user interface over IP
  • Scaler
  • Customized layout
  • Multiview
  • Videowall
  • picture on picture
  • Cross-screen Displaying
  • flip
  • Shipping Now
Try me

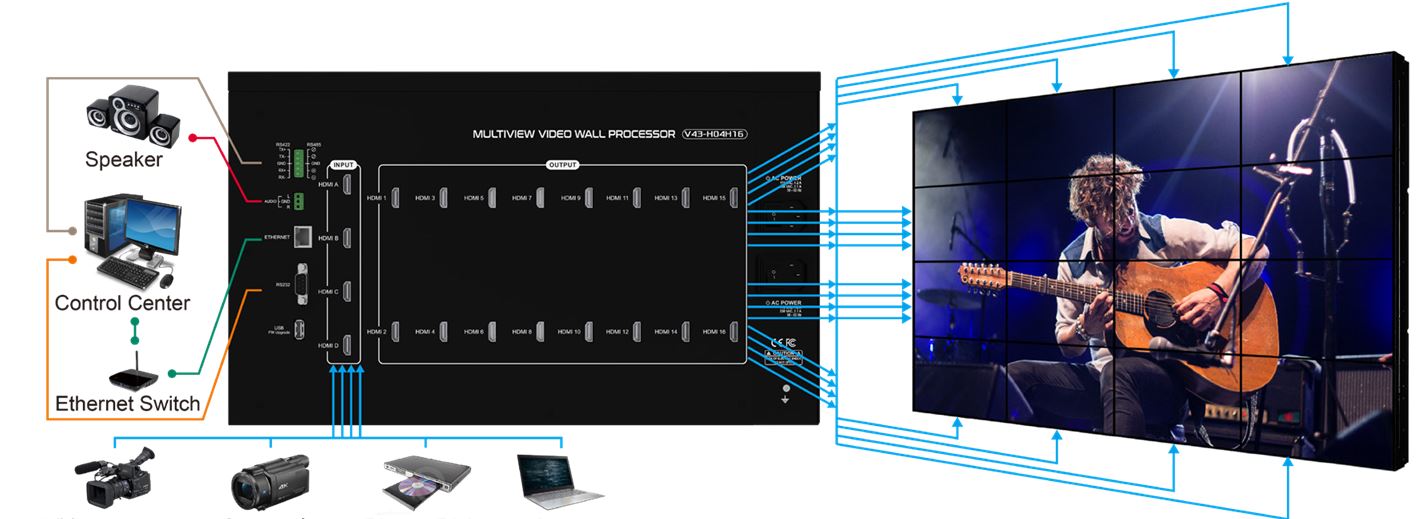

OVERVIEW
The Partilink 4x16 Multiview Video Wall Processor is an all-in-one  video wall system with multiview, scaling, customizing screen layouts, audio management and matrix. Its user-friendly web UI, RS232, RS485, RS422 and telnet. Modular and robust design made the video wall control effectively.








FEATURES
-Fast switching between input channels and combined multiple source images on video wall
-Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2 sources
-Input resolution up to 4K@60Hz, 4:4:4 color sampling
-Output resolution up to 4K@60Hz, 4:4:4 color sampling
-Upscaling up to 4K@60Hz, 4:4:4 color sampling and able to downscale as well

-PiP, PoP, quad-view flip and multiple customized screen layout configurations for video wall and matrix display
-Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen layout
-Stereo audio output
-Control by web UI, RS232, RS485, RS422 and telnet
-Firmware upgrade via USB port
-Redundant power supply
​​​​
APPLICATION
-Hospitality in lobby, hospital, clinic
-Conference room presentation
-Advertising in shopping mall, supermarket, restaurant,
-Broadcast in airport, bus or train station, classroom, Casino
-Rental and staging
-Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
-Integrating with DVR, IP camera as a surveillance system
-Monitoring in bank and stock market

MODEL NO.

V43-H04H16

HARDWARE

System Structure

pure hardware

Operating System

no CPU and operating system

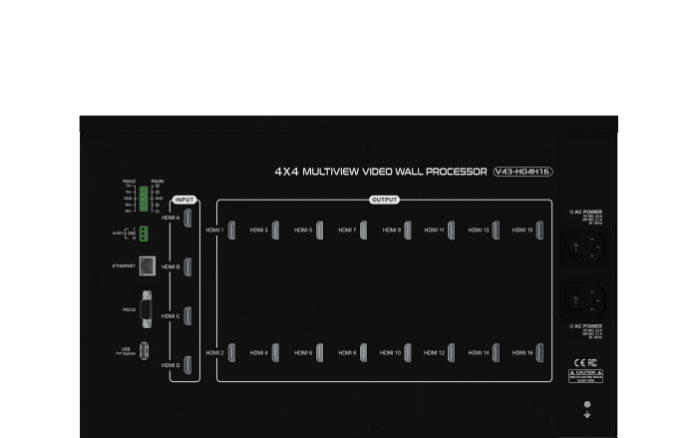

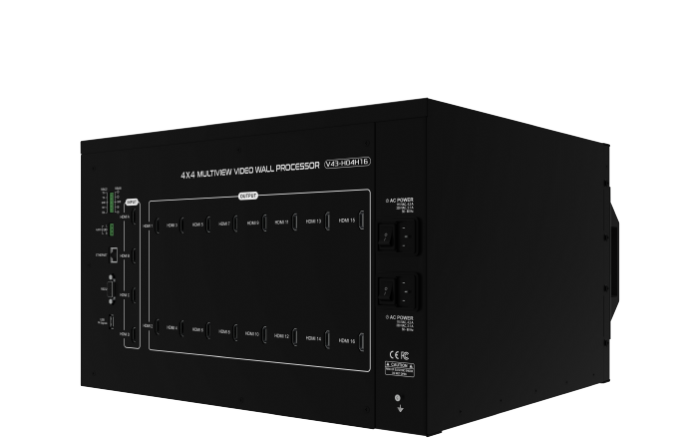

INPUT/ OUTPUT

Inputs

4 x HDMI 2.0

Output

16 x HDMI 2.0

Audio Output

terminal block 3 pole, stereo

IMAGE PROCESSING

Display Mode

full screen, PIP, POP, Flip, cross screen, quad view

Max Input Resolution

Up to 4096x2160@60Hz, 4:4:4 color sampling

Output Resolutions

4096x2160@60Hz, 4096x2160@50Hz, 4096x2160@24Hz, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@30Hz, 3840x2160@24Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1920x1080@30Hz, 1920x1080@24Hz, 1280x720@60Hz, 1280x720@30Hz, 1600x1200@60Hz, 1920x1200@60Hz, 2048x2048@57Hz

Output Color Format

4:4:4, 4:2:2, 4:2:0

Max Output Resolution

up to 4096x2160@60Hz, 4:4:4 color sampling

Input Resolutions

4096x2160 - 60Hz, 50Hz; 3840x2160 - 60Hz, 50Hz, 30Hz, 25Hz, 24Hz; 2560x1080 - 60Hz; 1080P - 60Hz, 50Hz, 30Hz, 25Hz, 24Hz; 1080i - 60Hz, 50Hz

720P - 60Hz, 50Hz, 720x576 - 50Hz; 480P - 60Hz, 50Hz

Input Color Format

4:4:4, 4:2:2, 4:2:0

Output Color Depth

24 bpp

Scaler

scaling up to 4K@60Hz, 4:4:4 color sampling and downscaling as well

Video Bandwidth

up to 18 Gbps

HDMI Compliance

HDMI 1.4 and HDMI 2.0

HDCP Compliance

HDCP 1.4 and 2.2

CONTROL METHODS

RS232 / Telnet

1 x D9 female connector / compatible with third party control system

RS 485 / RS422

5-pole terminal block

Ethernet Port

1 x RJ45 / compatible with third party control system

Web UI

browser / touch screen via smartphone or tablet

STABILITY

Safety

hardware structure, no risk of virus interference

Running Time

no auto-reboot during 365 days/year, 7days/7, 24h/24

FIRMWARE

Possible Upgrade

1 x USB 2.0

POWER

Power Supply

115-230 VAC / 50/60 Hz

Power Consumption

200W

Redundant Power Supply

Yes

ENVIRONMENT

Operating Temperature

0 °C~40°C

Operating Humidity

0~80% RH

Storage Temperature

-20 °C~60 °C

PHYSICAL

Dimensions

440 x 264 x 421 mm

Weight

6.0 KG
