HDMI to DP 4k30 DONGLE

P4K2-HD

Technologies

  • 4k30 UHD
  • Stereo 192kbps
  • Shipping Now
Try me

OVERVIEW

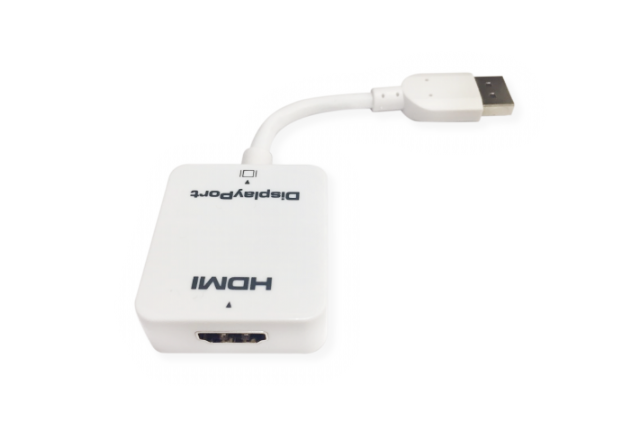

P4K2-HD is a converter to convert the HDMI1.4 signal to DP1.2 A for output. It support resoltuion up to 3840 x 2160 @30Hz.

FEATURES
-
Plug & play

-HDMI speed up to 2.97 GbPs

-HDCP 1.1 compliant

-DisplayPort output supports link rate RBR (1.62Gbps)/ HBR (2.7Gbps) / HBR2 (5.4 Gbps)
-
Resolution up to 3840 x 2160@30Hz
-Low power consumption, no external power required

-EDID pass through

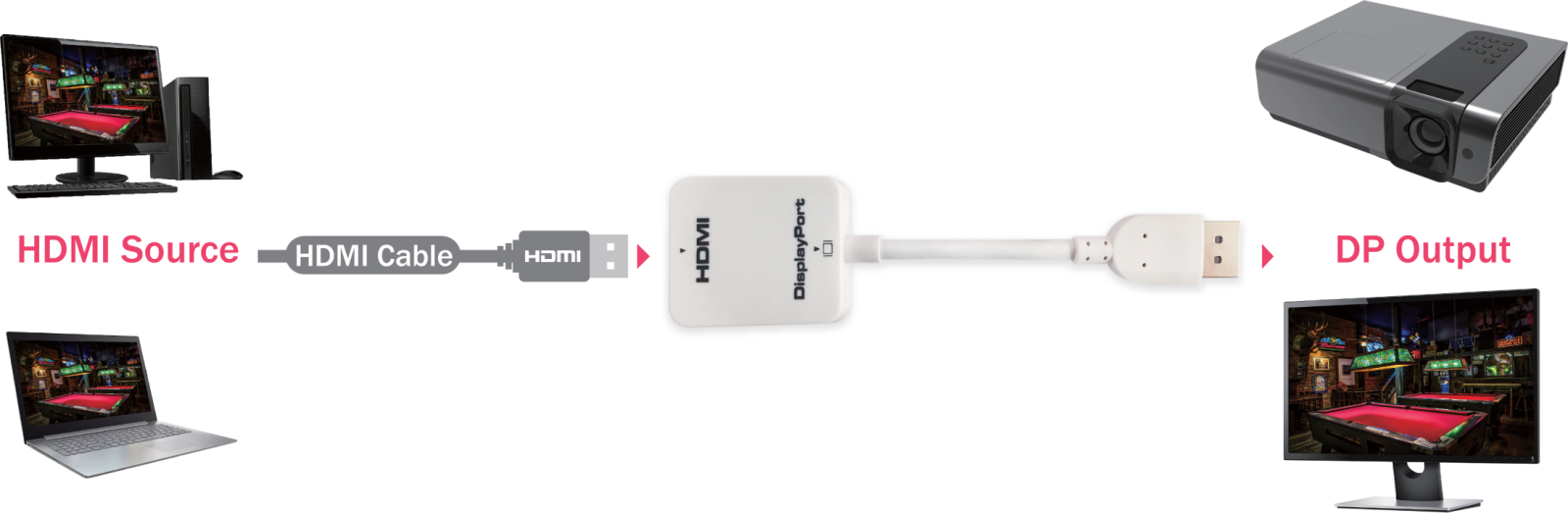

APPLICATION

MODEL NO.

P4K2-HD

INPUT INTERFACE

1 x HDMI Type A female

Resolution 3840 x 2160@30Hz, 1920 x 1080 p @120Hz

OUTPUT INTERFACE

1 x DisplayPort male

Resolution 1920 x 1080Pp @120Hz 24 bit, 1920 x 1200p @60Hz 24 bit,

3840 x 2160@30Hz 24 bit

AUDIO

7.1 digital up to 192kHz sampling rate

POWER

DC 12V/2A, locking barrel connector

ENVIRONMENT

Operating temperature -20~85°C

Working humidity 20~95% RH non-condensing

DIMENSION

40 x 15 x 45 mm (W x H x D), cable length 95mm

WEIGHT

25 G

FILE NAME FILE FORMAT SIZE DATE
DATASHEET_HDMI to DP DONGLE_P4K2-HD _PARTILINK 4June2019 pdf 310 KB 2019-06-04 Download
