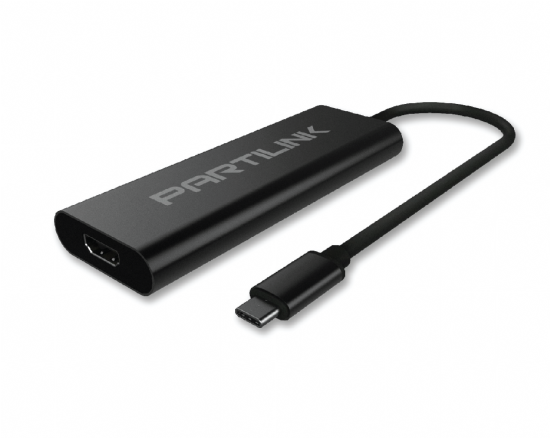

4K Capture Dongle

HDMI 2.0 to USB-C 4K Capture
GRA-H01C01




Technologies

  • 4k60 UHD
  • Real picture
  • HDMI 2.0
  • Shipping Now
Try me
OVERVIEW

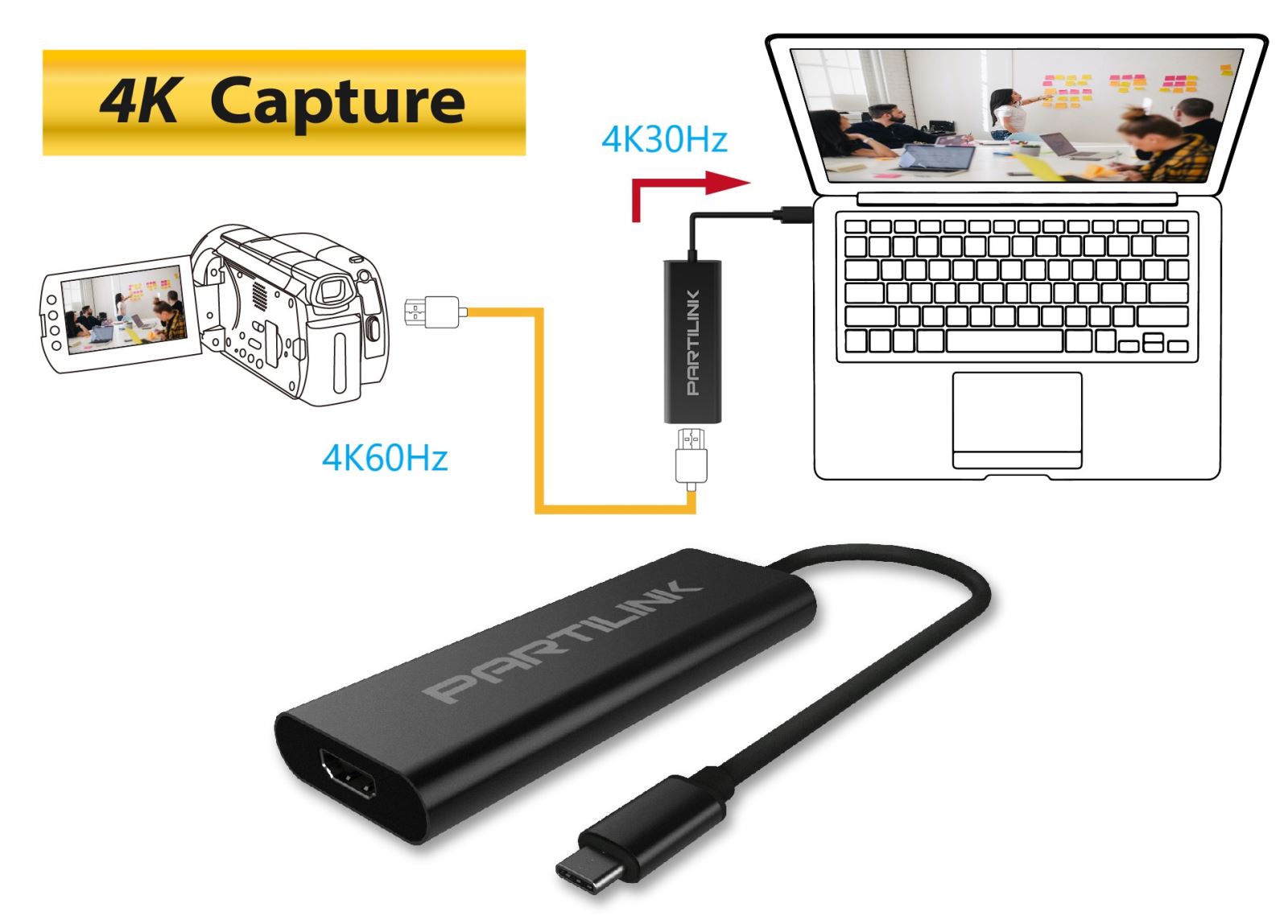

Partilink 4K Capture is a dongle designed to capture 4K@60Hz HDMI video/ audio source and uplink 4K@30Hz video/audio data to the connected computer through USB-C for filing, editing and streaming the video simultaneously in various media platform. It's easy to apply for capturing HDMI signal from Camera, PS4, XBOX, Switch and other AV devices and streaming captured HDMI audio/video through PC/NB with USB-C and integrate with other media for application in video conference, YouTube video upload, gaming and any purposed video filing and editing

FEATURES
• Recording and streaming
• Supports HDMI 2.0 standard up to 3840 x 2160@60Hz input
• USB 3.1 Gen1 with Type-C connector
• Supports video capture at 3840x 2160@30Hz output
• Supports RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Supports UVC 1.0
• Compatible with third-party application such as QuickTime, OBS, XSplit, vMix, Gamecaster and Broadcaster
• Works with gaming PC, Xbox, One/S, Playstation 4/ Pro….etc.
• Supports HDR input
• Plug & Play (no driver needed for Win 8 and above version)

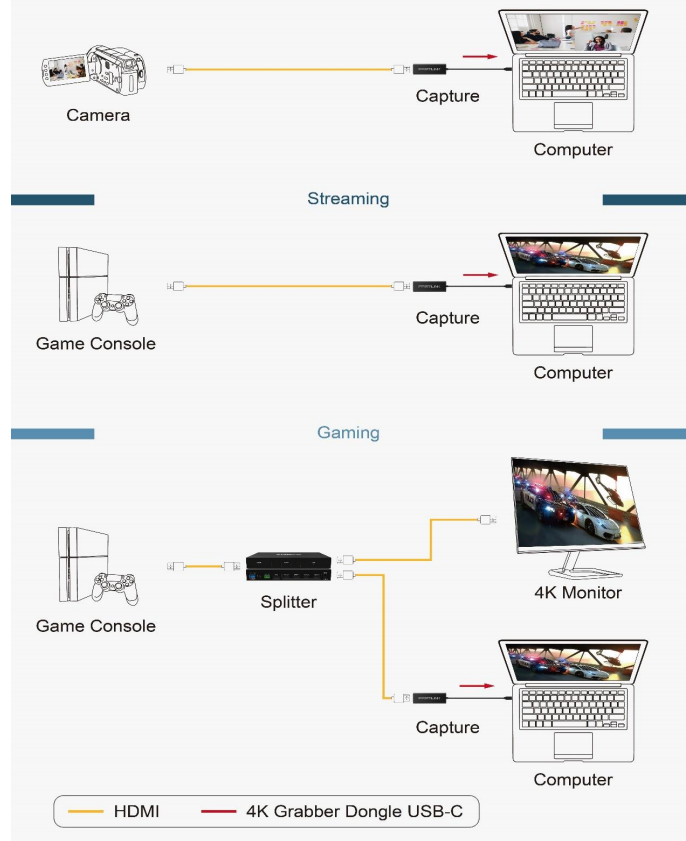

APPLICATION
• Gaming: recording and editing the file for storage, or live steaming to display in various media platform such as YouTube, FB, Instagram …etc.
• Business: video conference, live streaming to promote and demonstrate product
• Education: remote teaching and training

MODEL NO.

GRA-H01C01

INPUT INTERFACE

1 x HDMI 2.0 type A

INPUT RESOLUTION

3840x2160p 60/50/30/25/24Hz 16:9

1920x1080p 120/60/50/30/25/24Hz 16:9

1920x1080i 60/50Hz 16:9                                           2560x1440p 60Hz 16:9

1280x720p 60/50Hz 16:9                                           720x576p 50Hz 16:9

720x576p 50Hz 4:3                                                     720x480p 60Hz 16:9

720x480p 60Hz 4:3                                                      640x480p 60Hz 4:3

720(1440)x576i 50Hz 16:9                                           720(1440)x576i 50Hz 4:3

720(1440)x480i 60Hz 16:9                                           720(1440)x480i 60Hz 4:3

OUTPUT INTERFACE

1 x USB Type C (SuperSpeed) UVC

OUTPUT

RESOLUTION

USB3.0

SuperSpeed

NV12

YUYV

3840x2160p                                30 Hz

2560x1440p                                60 Hz

1920x1080p 120/60/50/30/25 Hz

1280x720p                                  60 Hz

720x480p                                    60 Hz

720x576p                                    50 Hz

640x480p                                    60 Hz

2560x1440p

1920x1080p 60/50/30/

1280x720p

720x480p

720x576p

640x480p

50 Hz

25 Hz

60 Hz

60 Hz

50 Hz

60 Hz

USB2.0

Hi-Speed

1280x720p                                 30 Hz

720x576p                                    50 Hz

720x480p                                    60 Hz

640x480p                                    60 Hz

720x576p

720x480p

640x480p

50 Hz

60 Hz

60 Hz

COLOR SAMPLING

RGB, YUV (YCbCr444, YCbCr422, YCbCr420)

VIDEO FORMAT

NV12 , YUYV

UAC AUDIO OUTPUT

Stereo / 16-bit PCM encoded audio at 48KHz sampling rates

SYSTEM

REQUIREMENTS

CPU

i5 Dual Core 2.8GHz or higher

RAM

4GB or higher

OS

Windows (8 and above),

MacOS (10.13 and above)

ENVIRONMENT

Operating Temperature

0 ~ 45

Operating Humidity

20% ~ 90%

DIMENSION

42 x 352 x 13.5 mm (W x L x H including cable length)

WEIGHT

60 G

*DOES NOT CAPTURE HDCP CONTENT (ex: DVD, BlueRay player)
