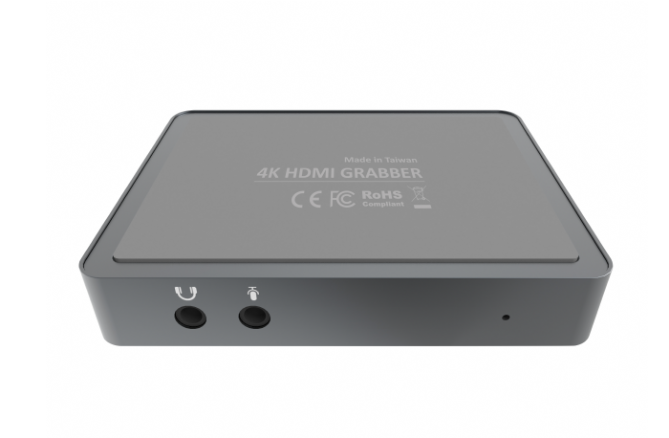

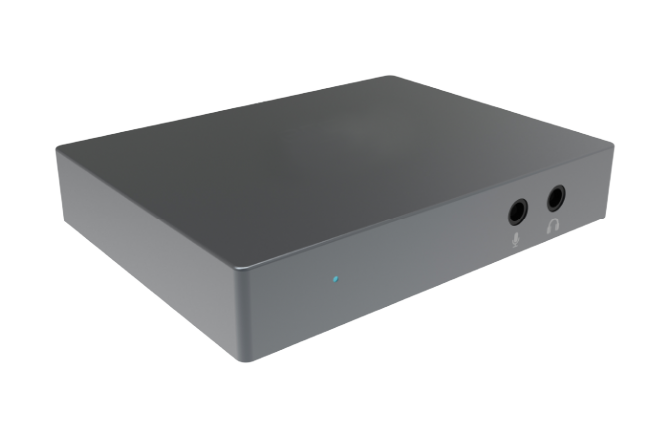

4K UHD HDMI to USB 3.0 Video Grabber

Supports 4K @ 60fps 4:4:4 video input

and captures audio/video at 1080p 60fps via USB.

Technologies

  • 4k60 UHD
  • 1080P FHD
  • Shipping Now
Try me
Partilink 4K HDMI Grabber is designed to support 4K UHD video output and captures audio/video HDMI source; transferring audio/video between the grabber and your PC/NB through USB, easily enables streamers to capture each sound and movement.  With Pengo 4K HDMI Grabber, it will not affect the performance of your computer and benefit from a stable video capture in 1920 x 1080p at 60 fps.



Features

  • Support HDMI 2.0 and UHD resolution up to 4K at 60 frames per second.
  • Support HDMI 2.0 loop-through output
  • USB 3.0 Video capture at 1080p @60 fps
  • Video capture in 1920 x 1080p at 60 frames per second
  • Support USB 3.0 and USB 2.0 data uplink
  • Audio capture mixed with external line-in audio at 48 kHz sampling rate
  • Support true 24-bit color and provides consistent frame rate performance regardless of video content
  • Support UVC 1.0
  • Support stereo microphone input and stereo headphone output
  • Captures PS4 Pro and Xbox One X game display
  • GUI control interface for Windows
  • No external power supply required
  • Plug-n-play

Application

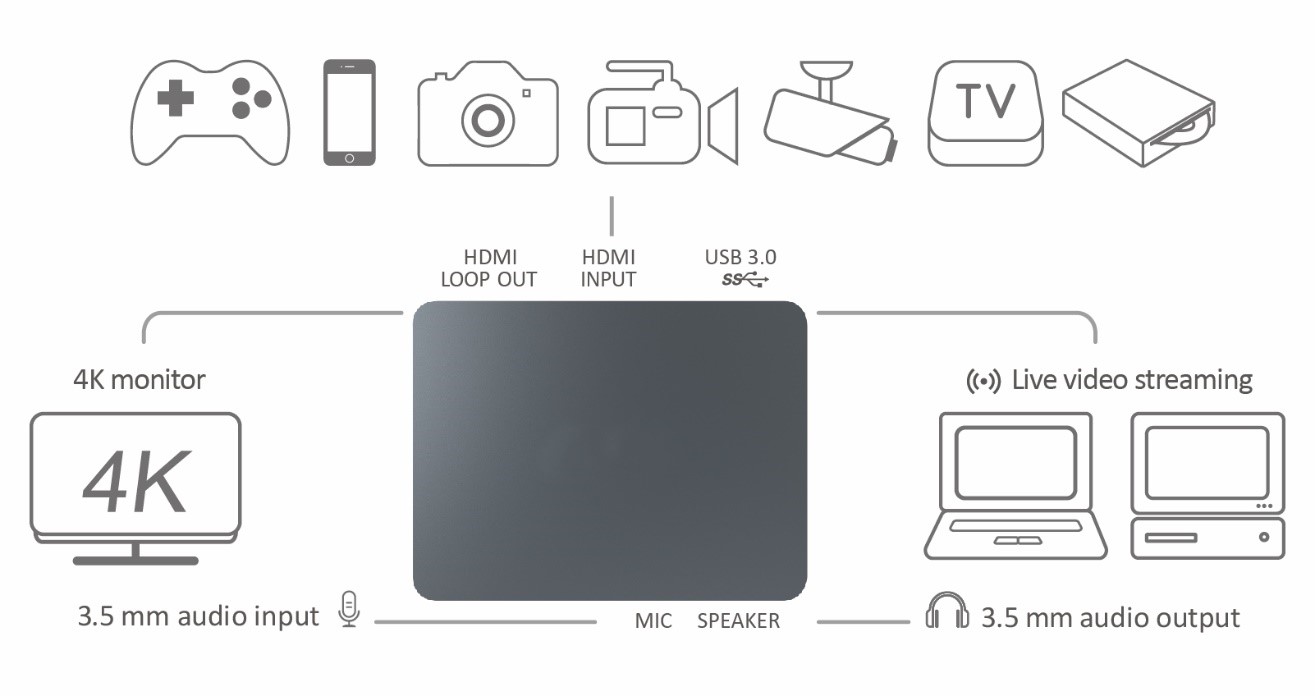

Simply plug-in your device as the source into HDMI input.  Connect your mic and headset into their perspective connectors, and a 4K monitor into the HDMI loop out.  Use the USB 3.0 port to connect your PC/NB and run your video player software from your computer for live streaming or recordings.
Enjoy a high-resolution video quality and crystal clear sound on your PC/NB with our 4K HDMI Grabber.

MODEL NAME

4K HDMI Grabber

DESCRIPTION

4K UHD HDMI to USB 3.0 Video Grabber

INPUT INTERFACE

1 x HDMI type A

1 x 3.5mm audio input

INPUT RESOLUTION

640 x 480p, 1280 x 720p, 1920 x 1080p, 3840 x 2160p

HDMI VIDEO SAMPLING

4:4:4 format

OUTPUT INTERFACE

1 x HDMI type A, loop-through output

1 x USB Type A (USB 3.0, USB 2.0), supporting UVC video and audio

1 x 3.5 mm audio output

OUTPUT RESOLUTION

Up to 3840 x 2160p @ 60 Hz via HDMI

Up to 1080p @ 60 Hz via USB

UVC COLOR SPACE

YUY2 (4:2:2), RGB 4:4:4 (MJPG)

AUDIO INPUT

HDMI, 16-bit PCM encoded audio

at 44.1kHz, 48kHz, 96kHz and 192kHz sampling rates

Stereo microphone input

AUDIO OUTPUT

16-bit PCM encoded audio at 48kHz sampling rates

Stereo headphone output

System requirements

CPU : i5 Dual Core 2.8GHz or higher

RAM : 4GB or higher

OS :Microsoft Windows (8 and above), Mac OS X (10.13 and above)

ENVIRONMENT

Operating temperature 0~45                                                                                                                                                                                                                               Operating humidity 20~90%                                                                                                                                                                                                       Storage temperature -20~60

DIMENSION

65 x 85.6 x 15.2 mm (W x L x H)

WEIGHT

91G

AVAILABLE IN

Titanium Gray

ACCESSORIES

USB 3.0 CABLE 1.2 M

*does not support HDCP

FILE NAME FILE FORMAT SIZE DATE
Partilink_4K HDMI Grabber(V.2) SPEC sheet_V0.1 pdf 293 KB 2019-10-07 Download
