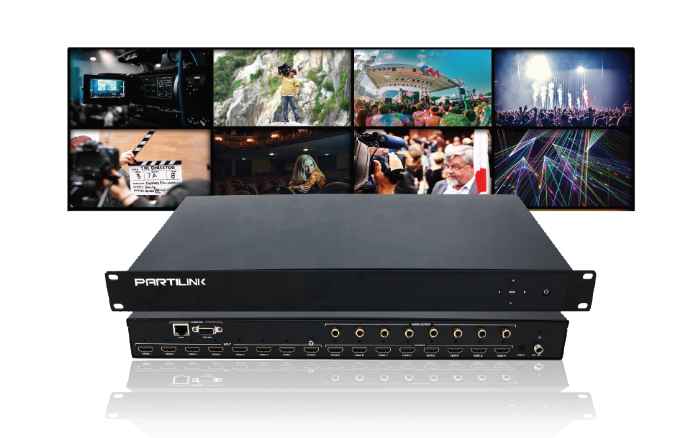

MX8-8 Matrix

HDMI 2.0 8X8 MATRIX SWITCHER
Ref: X13-H08H08
Multi-channel Distribution of video & digital audio
From 8 sources to 8 displays
4K @60Hz YUV 4:4:4, 18 Gbps
Audio de-embedded

Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • 18 gbps (bandwidth)
  • HDMI 2.0
  • HDCP 1.4
  • User Friendly
  • Videowall
  • Shipping Now
Try me
OVERVIEW
Partilink MX8-8 is a HDMI 2.0 8x8 HDMI matrix switcher supporting the distribution of video up to 4K @60Hz YUV 4:4:4, 18 Gbps and multi-channel digital audio from 8 sources to 8 displays. Audio de-embedded from digital HDMI audio is available to output externally as well. Control by front panel button, IR remote, web UI and ASCII command made it easy to build up display and control system.

FEATURES

  • HDMI 2.0b compliant
  • HDCP 2.2 and HDCP 1.4 compliant
  • Up to 4K @60Hz YUV 4:4:4 each HDMI ports
  • Cross-switch 4 HDMI devices to 4 HDMI displays in 4K@60Hz
  • Supports 7.1 channel digital audio (LPCM, Dolby, True HD and DTS-HD Master Audio)
  • Supports de-embedded audio to output via coax port
  • Control via front panel button, IR remote, web UI and RS232
  • Locking HDMI connector screws
Supports HDR, CEC and smart EDID management

SPECIFICATION

MODEL NO.

X13-H08H08

INPUT/ OUTPUT

Inputs

8 x HDMI Type A [19-pin female]

1 x LAN [RJ45, Control]

1 x RS-232 [9-pin D-sub, Control]

1 x IR EXT [3.5mm Stereo Mini-jack]

Outputs

8 x HDMI Type A [19-pin female]

8 x Coaxial Audio [RCA]

IMAGE PROCESSING

HDMI Compliance

HDMI 1.4 And HDMI 2.0

HDCP Compliance

HDCP 1.4 And HDCP 2.2

Video Bandwidth

18 Gbps

Video Resolutions

up to 4K @50/60Hz (YUV 4:4:4), 4K @30Hz,

1080p @120Hz, and 1080p 3D @60Hz

Color Depth

8-bit, 10-bit, 12-bit

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Audio

HDMI Audio Formats

LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

Audio Formats

PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K, 16/20/24bit

POWER

Power Supply

input: AC100~240V 50/60Hz output: DC12V/3A

(US/EU standards, CE/FCC/UL certified)

Power Consumption

26.5W (max)

ENVIROMENT

Operating Temperature

0°C ~ 40°C / 32°F ~ 104°F

Operating Humidity

20% ~ 90% RH (non-condensing)

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

PHYSICAL

Housing

metal enclosure

Color

black

Dimensions

483mm x 253mm x 44.5mm (L x W x H)

Weight

3.35 KG

PACKAGE CONTENTS

1 x 8x8 HDMI Matrix

1 x 12V/3A Locking Power Adaptor

1 x IR Remote

1 x Wideband IR Receiver cable

1 x RS-232 male to female serial cable

1 x User Manual
