Authentic 4K60fps input & output
Unlimited Customized Capability
HDMI 2.0 Full Capacities
Pure Hardware

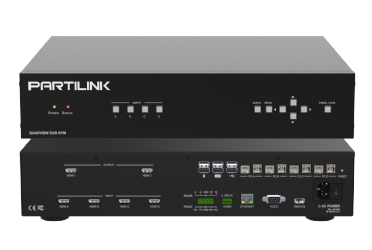

Quad View KVM Processor
Seamless KVM Control across computers
Up to 16 host devices
4K60fps Ultra HD YUV 4.4.4
HDMI2.0

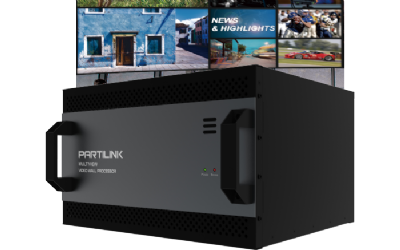

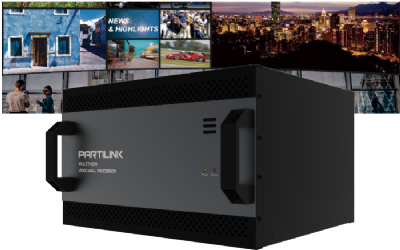

Video Wall Processor
Creative Multiview
4K60Hz Ultra HD YUV 4.4.4 via HDMI2.0
Robust High-End Quality Processor for
Mission Critical applications

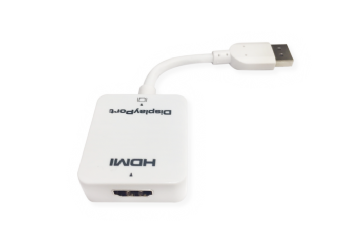

HDMI to DisplayPort
Converter & Splitter
Multifunctional device
HDMI 2.0 HDCP2.2 - $k60fps Ultra HD
No signal compression
Innovative Design Proficiency
Recognized by our Clients
Pro-AV systems leaders
Homemade Technology for the greatest performance
Optimized settings
Meet your exact AV requirements
via a user - Friendly manner
Client Satisfaction Oriented
Our Goal: Exceed Clients Expectations
We ensure a reply to your requests within 48H
Our People
Multi-cultural Senior Experts
+35 years Pro-AV Design Expertise
4k60 UHD
Most Partilink products support 3840x2160@60Hz UHD 4K 60hz YUV 4:4:4 resolutions since 2014. We design and produce 4K 60fps boards for multiviewers up to 16 outputs and HDMI to DisplayPort supporting HDMI 2.0 standards.
Real picture
With the resolution on input and output of 4K60fps YUV 4.4.4. wihtout any compression of the audio visual signal, Partilink technologies make you feel as if you are living it in real. It is like watching outside through a window, even in you zoom in mode.
18 gbps (bandwidth)
HDMI 2.0 systems can transfer data at up to 18Gbps, up from 10.2Gbps in HDMI 1.4. The extra bandwidth also means HDMI is able to transport 4K video at 10-bit and 12-bit colour depths. With HDMI 1.4 it was limited to 8-bit. 8-bit colour results in a colour palette of 16.7-million colours instead of 68.7 billion colors with the 12-bit. These higher colour bit rates are labelled “deep color".
YUV 4.4.4
YUV 4.4.4 means that there is no chroma subsampling: Real view (no compression of the original signal)
This scheme is used in control rooms, surgery rooms, and high-end film scanners and cinematic post production. Chroma subsampling is the practice of encoding images by implementing less resolution for chroma information than for luma information, taking advantage of the human visual system's lower acuity for color differences than for luminance.
HDMI 2.0
Stands for "High-Definition Multimedia Interface." HDMI is a trademark and brand name for a digital interface used to transmit audio and video data in a single cable. HDMI is a digital connection, so HDMI cables are less prone to interference and signal noise than analog cables. HDMI typically produces the best quality picture and sound compared to other types of connections.
HDCP 2.2
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio & video content as it travels across connections. Most 4K TVs support something called HDCP, which stands for High-bandwidth Digital Content Protection, but only the more recent ones come with HDCP 2.2, the latest generation content protection mechanism.
3d ready
3D-ready devices are those that can operate in 3D mode (in addition to regular 2D mode) glasses may be sold separately.
No Virus Risk
Partilink products are pure hardware structure so there is no risk of virus interference nor malware intrusion into end user network
telnet Control Via RS232
Telnet is a user command and an underlying TCP/IP protocol for accessing remote computers via RS232. Through Telnet, an administrator or another user can access someone else's computer remotely.
24-7 nonstop working
Partilink devices are pure hardware, Secured from any risk of virus. As there is no windows base interface in our products, it can work properlly 24 hours / 7days continuously without any auto-reboot during 365days.
web user interface over IP
In information technology, the user interface (UI) is everything designed into an information device with which a person may interact. This can include display screens, keyboards, a mouse and the appearance of a desktop. It is also the way through which a user interacts with an application or a website.
Multiview
The Multiviewer can display multiply sources of videos simultanously in picture in picture and picture on picture. Our products can monitor 4 completely independent HDMI 2.0 video sources on up to 16 screend. Our Multiview Video Processors supports HDMI, VGA and Display Port.
Videowall
The Video Wall is processing video signal on multiply devices - wall system. " video wall Processor" brings many features for customizing the display on the screen displays. Partilink V23-H04H04 HDMI 2.0 Multiview Video Wall Processor is an all-in-one 2x2 video wall system with multiview, PiP/PoP, scaling up & down, cross screen features and customized layouts. The control can be done via a user friendly web UI, RS232, RS485.
picture on picture
Overlay one video window on another video window. It means putting a video, image, watermark, motion graphics or texts on top of the main video. It is quite useful in making movie. And overlaying video will make your video looks professional.
Front panel buttons
push buttons mounted on a the front of the metal case of the device enable contorl of the unit. On Partilink Multiviewers, it enables the user to select the sources to be displayed on screen, the display layout, to put the product on standbye
Customized layout
Partilink's Multiviewers brings unlimited possibilities of costumization of the screen layouts to display. Up to 8 layouts can be saved on the device. Maintaining 4k60fps YUV4.4.4 anyway.
Scaler
A video scaler is a system which is capable of converting video signals from one resolution to another. It increases or decreases the input resolution for video output at the specified ratio.
HDCP 1.4
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio & video content as it travels across connections. The version 1.4 has been released in 2009 and then the latestest version 2.2 have been released with maximized protection.
Frame synchronization
frame synchronization or framing is the process by which, while receiving a stream of framed data, incoming frame alignment signals are enabled (pixel by pixel positionning)
Cross-screen Displaying
Cross-screen Displaying enables user to display a video window on multiply screens at any position on the display
Touch screen
Partilink Multiviewers support control via touche screen devices like tablet, smartphone and touch screen tv.
flip
Supports flip mode on full view
User Friendly
User Friendly is the ease of use and learnability of a human-made object such as Partilink products through web user interface and many more control possibilities
quadview
Support 4 screens layout of equal sizes on display
TelNet Control
(Recommended Standard-232) A TIA/EIA standard for serial transmission. Employed by Partilink for controlling video processors via TelNet Command. The RS-232 cable limitation of 50 feet can be extended to several hundred feet with high-quality cable.
4k30 UHD
Most Partilink products support 3840x2160 30Hz UHD 4K YUV 4:4:4 resolutions since 2014. We design and produce 4K 30fps extenders supporting PoP and Multicast.
RS485
RS-485 is a serial interface standard in which data is sent in a differential pair (two wires, or twisted pair cable), which allows greater distances and higher data rates than non-differential serial schemes such as RS-232.
1080P FHD
Partilink products support 1080x1920 60Hz FHD YUV 4:4:4 resolutions since 2014. We design and produce 1080P extenders supporting PoP and Multicast.
RJ45
RJ45 is a type of connector commonly used for Ethernet networking. It looks similar to a telephone jack, but is slightly wider. Since Ethernet cables have an RJ45 connector on each end, Ethernet cables are sometimes also called RJ45 cables.The "RJ" in RJ45 stands for "registered jack," since it is a standardized networking interface. The "45" simply refers to the number of the interface standard.
VGA
Stands for "Video Graphics Array." This is the standard display interface used in most PCs. The VGA standard was originally developed by IBM in 1987 and allowed for a display resolution of 640x480 pixels,the most common is Super VGA (SVGA), which allows for resolutions greater than 640x480, such as 800x600 or 1024x768. A standard VGA connection has 15 pins and is shaped like a trapezoid.
Firmware upgrade (USB)
Our devices enable users to put a new firmware file in a USB flash memory chip for updating the firmware of the product which includes additional features to the device.
DP1.2a
DisplayPort was developed by the Video Electronics Standards Association (VESA) as a high-performance replacement for other display modes such as VGA (Video Graphics Array) and DVI (Digital Visual Interface).DisplayPort, like HDMI (High Definition Multimedia Interface), can transmit the video and audio data. It offers a video data transfer rate of up to 17.28 Gbps.
Stereo 192kbps
Stereophonic sound or, more commonly, stereo, is a method of sound reproduction that creates an illusion of multi-directional audible perspective. This is usually achieved by using two or more independent audio channels through a configuration of two or more loudspeakers in such a way as to create the impression of sound heard from various directions, as in natural hearing.Stereo sound has been in common use in entertainment systems such as broadcast radio, TV, recorded music, internet, computer audio, and cinema.
RemoteControl
Remote control included (battery excluded)
Multicast
Multicast is communication between a single sender and multiple receivers on a network. IP multicast is a method of sending Internet Protocol (IP) datagrams to a group of interested receivers in a single transmission. It uses specially reserved multicast address blocks in IPv4 and IPv6.
IPv4
Internet Protocol version 4 (IPv4) is the fourth version of the Internet Protocol (IP). It is one of the core protocols of standards-based internetworking methods in the Internet. It still routes most Internet traffic today,
TCP
The TCP (Transmission Control Protocol) provides a communication service at an intermediate level between an application program and the Internet Protocol. It provides host-to-host connectivity at the transport layer of the Internet model. An application does not need to know the particular mechanisms for sending data via a link to another host, such as the required IP fragmentation to accommodate the maximum transmission unit of the transmission medium. At the transport layer, TCP handles all handshaking and transmission details and presents an abstraction of the network connection to the application typically through a network socket interface. At the lower levels of the protocol stack, due to network congestion, traffic load balancing, or unpredictable network behaviour, IP packets may be lost, duplicated, or delivered out of order. TCP detects these problems, requests re-transmission of lost data, rearranges out-of-order data and even helps minimize network congestion to reduce the occurrence of the other problems.
UDP
User Datagram Protocol (UDP) is one of the core members of the Internet protocol suite. With UDP, computer applications can send messages, in this case referred to as datagrams, to other hosts on an Internet Protocol (IP) network. Prior communications are not required in order to set up communication channels or datapath.
UDP is suitable for purposes where error checking and correction are either not necessary or are performed in the application; UDP avoids the overhead of such processing in the protocol stack. Time-sensitive applications often use UDP because dropping packets is preferable to waiting for packets delayed due to retransmission, which may not be an option in a real-time system.
RTSP
The Real Time Streaming Protocol (RTSP) is a network control protocol designed for use in entertainment and communications systems to control streaming media servers. The protocol is used for establishing and controlling media sessions between end points. Clients of media servers issue VHS-style commands, such as play, record and pause, to facilitate real-time control of the media streaming from the server to a client (Video On Demand) or from a client to the server (Voice Recording).
RTP
RTP (Real Time Streaming Protocol) is a web application protocol designed for use in entertainment and communication systems to control streaming media servers. The agreement is used to establish and control media conversations between terminals. The client issue play commands, record, and pause, to facilitate real-time control of media streams from the server to the client (video on demand) or from the client to the server (voice recording).
DHCP
DHCP is Dynamic Host Configuration Protocol ; Its main function is to enable a machine to broadcast ip, netmask, default gateway, dns, etc. to the DHCP server through its own Ethernet Address broadcast.
IGMP
IGMP (Internet Group Management Protocol) is a communication protocol for managing network groups. It mainly uses IP stacking to achieve multiple propagation. The biggest advantage is that it saves the bandwidth of the entire network. The general multimedia audio and video files are quite huge. When they broadcast on the Internet, they even smash the entire network. Therefore, Partilink own IGMP-enabled switches can recognize and directly transmit IP Multicast traffic to the required ports, so that other port throws can use the network bandwidth without being affected.
electro static discharge
Electrostatic discharge (ESD) is the sudden flow of electricity between two electrically charged objects caused by contact, an electrical short, or dielectric breakdown. The ESD occurs when differently-charged objects are brought close together or when the dielectric between them breaks down, often creating a visible spark. Partilink has got the certification of electro static discharge.
20Meters
Extension length up to 20M
Cascade 10Pcs
Cascading up to 10 units.
Cascade 5 Pcs
Cascading up to 5 units.
Keyboard Centralized Control
Partilink VP-KM41 can support cascading up to 5 units to create max. 16 host devices controlled by 1 set of keyboard and mouse.
Mouse Centralized Control
Partilink VP-KM41 can support cascading up to 5 units to create max. 16 host devices controlled by 1 set of keyboard and mouse.
Shipping Now
Partilink is already shipping every products of its product portfolio.
