FHD HDMI grabber

FHD HDMI Grabber

Capture 1080p video/audio signal from HDMI source

Technologies

  • 1080P FHD
  • Shipping Now
Try me

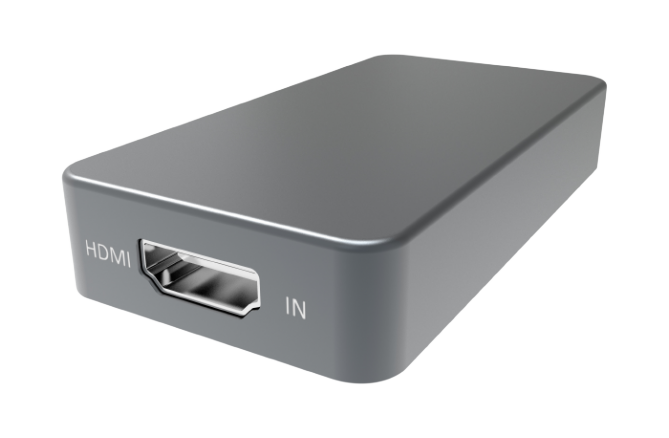

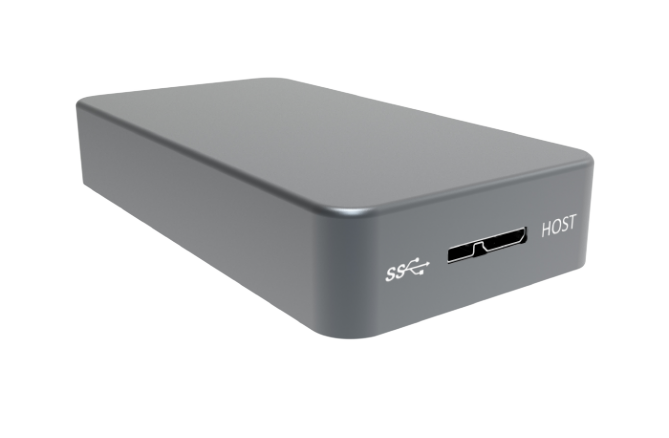

Partilink FHD HDMI grabber (external USB capture) designed to capture 1080p video/audio signal from HDMI source, and transfer video/audio between grabber and PC/NB through USB cable. Minimal design to reduce space on your table but at the same time, capture resolutions up to 1080p at 60 frames per second
  • Features
  • Capture video and audio from HDMI sources such as video display or camera sources
  • Supports true 24-bit color and provides consistent frame rate performance regardless of video content
  • Support USB 3.0 or USB 2.0 data uplink. Sources power from the USB port, no external power supply required
  • Captures Resolutions up to 1080p at 60fps
  • Compatible with many multiple 3rd party applications interfaces such as; DirectShow on Windows, Video4Linux on Linux, QuickTime on Mac OSX
  • Minimal to zero lag video capture for a live streamer
  • Sources power from the USB port, no external power supply required

MODEL NAME

FHD HDMI grabber

DESCRIPTION

FHD HDMI grabber

DIMENSION

78 x 41 x 15 mm (W x L x H)

WEIGHT

56 G

INPUT INTERFACE

HDMI Type A: HDMI 1.4b standard up to 1080p at 60fps

OUTPUT INTERFACE

Micro USB Type B

VIDEO SAMPLING

4:4:4 format

RESOLUTION

480p, 720p, 1080p

OUTPUT COLOR SPACE

YUV2, RGA

HDMI AUDIO

16-bit PCM encoded audio at 32KHz, 44.1KHz and 48KHz sampling rates

Color

Titanium Gray
