OVERVIEW

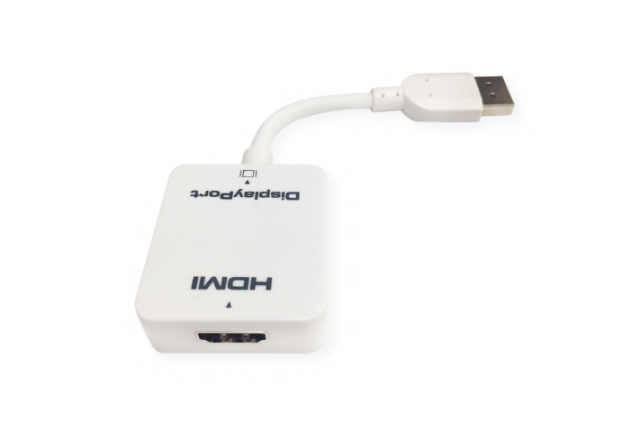

P4K2-HD is a converter to convert the HDMI1.4 signal to DP1.2 A for output. It support resoltuion up to 3840 x 2160 @30Hz.
FEATURES
-Plug & play
-HDMI speed up to 2.97 GbPs
-HDCP 1.1 compliant
-DisplayPort output supports link rate RBR (1.62Gbps)/ HBR (2.7Gbps) / HBR2 (5.4 Gbps)
-Resolution up to 3840 x 2160@30Hz
-Low power consumption, no external power required
-EDID pass through
-Plug & play
-HDMI speed up to 2.97 GbPs
-HDCP 1.1 compliant
-DisplayPort output supports link rate RBR (1.62Gbps)/ HBR (2.7Gbps) / HBR2 (5.4 Gbps)
-Resolution up to 3840 x 2160@30Hz
-Low power consumption, no external power required
-EDID pass through
APPLICATION
|
MODEL NO. |
P4K2-HD |
|
INPUT INTERFACE |
1 x HDMI Type A female Resolution 3840 x 2160@30Hz, 1920 x 1080 p @120Hz |
|
OUTPUT INTERFACE |
1 x DisplayPort male Resolution 1920 x 1080Pp @120Hz 24 bit, 1920 x 1200p @60Hz 24 bit, 3840 x 2160@30Hz 24 bit |
|
AUDIO |
7.1 digital up to 192kHz sampling rate |
|
POWER |
DC 12V/2A, locking barrel connector |
|
ENVIRONMENT |
Operating temperature -20~85°C Working humidity 20~95% RH non-condensing |
|
DIMENSION |
40 x 15 x 45 mm (W x H x D), cable length 95mm |
|
WEIGHT |
25 G |
| FILE NAME | FILE FORMAT | SIZE | DATE | |
|---|---|---|---|---|
| DATASHEET_HDMI to DP DONGLE_P4K2-HD _PARTILINK 4June2019 | 310 KB | 2019-07-08 |
