HDMI 2.0 / DP / VGA MULTIVIEWER
VP-QV41
For simultaneous display of three HDMI 2.0/1.4 + one DisplayPort or one VGA sources on one screen with output resolutions up to 4K UHD @60Hz 3840 × 2160 4:4:4
Technologies
OVERVIEW

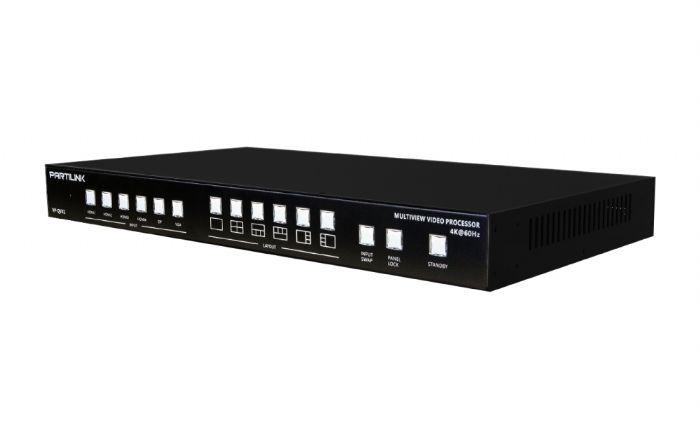

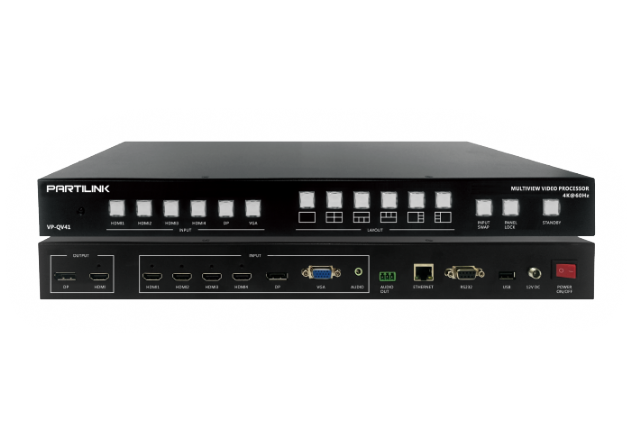

The Partilink VP-QV41 Multiview Video Processor is a user-friendly HDMI, VGA and DisplayPort video scaler and multiviewer designed to display up to four video sources on one 4K@60Hz 4:4:4 screen simultaneously. It handles any input resolution up to 4K@60Hz to output maximum 4K@60Hz or downscale the resolution.
FEATURES
-Input resolution up to 4K@60Hz, 4:4:4 color sampling
-Output resolution up to 4K@60Hz, 4:4:4 color samplingScaling up to 4K@60Hz, 4:4:4 color sampling and able to downscale as well
-PiP, PoP and multi-view layout configurations
-14 different screen layouts by 6 preset screen layouts and extra 8 customized screen layouts
-Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen mode
-Stereo audio output and input
-Control by front panel button, IR remote control, RS232/Telnet and Web UI
-Firmware upgrade via USB port
-DP loop through output
-Advertising in shopping mall, supermarket, restaurant,
-Broadcast in airport, bus or train station, classroom, Casino
-Rental and staging
-Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
-Integrating with DVR, IP camera as a surveillance system
-Monitoring in bank and stock market
|
MODEL NO. |
VP-QV41 |
|
|
HARDWARE |
System Structure |
pure hardware |
|
Operating System |
no CPU and operating system |
|
|

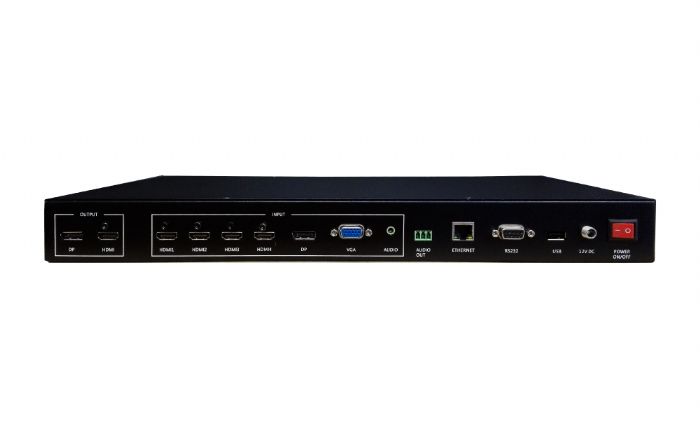

INPUT/ OUTPUT |
Inputs |
4 x HDMI 2.0 with locking, 1 x DisplayPort 1.2, 1 x VGA + 1 x 3.5mm Audio jack |
|
Output |
1 x HDMI 2.0 with locking, 1 x DisplayPort 1.2 |
|
|
Audio Output |
Terminal Block 3 Pole, Stereo |
|
|
IMAGE PROCESSING |
Display Mode |
full screen, Quad view, PiP, PoP |
|
Input Resolution |
up to 3840 x 2160@60Hz, 4:4:4 color sampling |
|
|
Max Output Resolution |
up to 3840 x 2160@60Hz, 4:4:4 color sampling |
|
|
Output Resolutions |
3840x2160 - 60Hz, 50Hz, 30Hz 1920x1080 - 60Hz 1280x720 - 60Hz 720x480 - 60Hz |
|
|
Output Color Depth |
8 bpc (24 bit/px) |
|
|
Scaler |
scaling up to 4K@60Hz, 4:4:4 color sampling and downscaling as well |
|
|
Video Bandwidth |
up to 18 Gbps |
|
|
HDMI Compliance |
HDMI 1.4 and HDMI 2.0 |
|
|
HDCP Compliance |
HDCP 1.4 and 2.2 |
|
|
CONTROL METHODS |

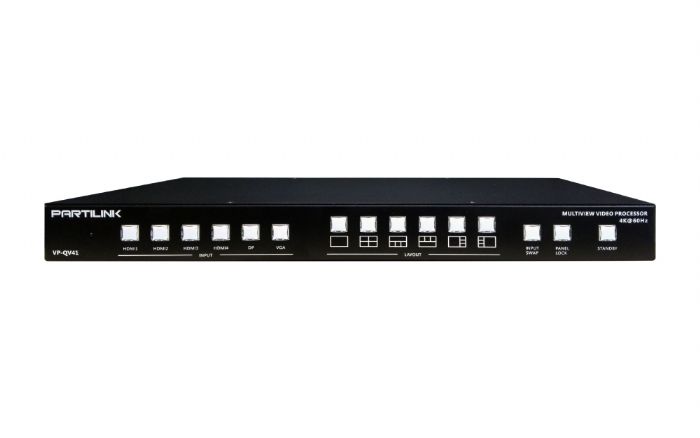

Front Panel Buttons |
4 x select HDMI 1,2,3,4 input and/or audio, 1x DisplayPort, 1 x VGA, 6 x display layout, 1 x Input Swap, 1 x Panel lock, 1x Standby |
|
IR |
1 x IR remote control |
|
|
RS232/ Telnet |
1 x D9 Female Connector / Compatible with third party control system |
|
|
Ethernet Port |
1 x RJ45 |
|
|
Web UI |
browser / touch screen |
|
|
STABILITY |
Safety |
hardware structure, no risk of virus interference |
|
Running Time |
no auto-reboot during 365 days/year, 7days/7, 24h/24 |
|
|
FIRMWARE |
Possible Upgrade |
1 x USB 2.0 |
|
LED INDICATOR |
Input |
blue backlight |
|
Output |
blue backlight |
|
|
Panel Lock |
blue backlight |
|
|
Standby On |
red backlight |
|
|
Standby Off |
green backlight |
|
|
POWER |
Internal Power Supply |
DC 12V/2A, locking barrel connector |
|
Power Consumption |
15W |
|
|
Power Adaptor |
universal power adapter |
|
|
ENVIRONMENT |
Operating Temperature |
0 °C~45°C |
|
Operating Humidity |
20~90% RH |
|
|
Storage Temperature |
-20 °C~60 °C |
|
|
PHYSICAL |
Dimensions |
440.4 x 230 x 45 mm (L x W x H, standard 1U) |
|
Fixing Components |
rear bracket, footpad and screws |
|
|
Weight |
2.72 KG |
|
