OVERVIEW

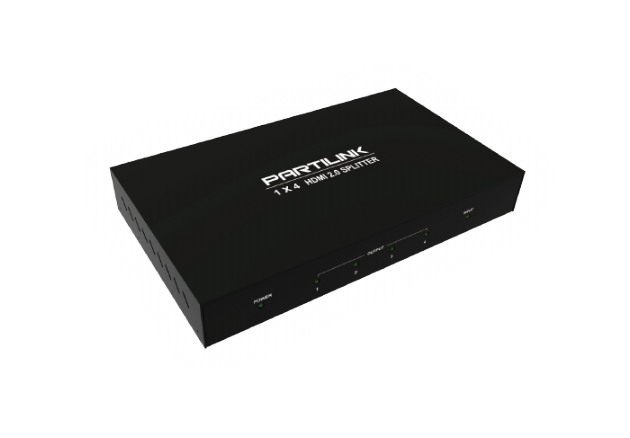

P4K2-HH1S4 is a HDMI 2.0 splitter to distribut one video images and audio to four displays.
FEATURES
-Ultra HD video resolution up to 4K @60Hz 4:4:4 display
-HDCP 1.4 / 2.2
-EDID parsing and copy
-Cascade up to 16 layers
-Display HDMI 2.0 YuV 4:4:4 format
-Firmware upgradable via micro USB
-7.1 CH audio
-LED indicator for power and active status
-RS232 control
-Ultra HD video resolution up to 4K @60Hz 4:4:4 display
-HDCP 1.4 / 2.2
-EDID parsing and copy
-Cascade up to 16 layers
-Display HDMI 2.0 YuV 4:4:4 format
-Firmware upgradable via micro USB
-7.1 CH audio
-LED indicator for power and active status
-RS232 control
|
MODEL NO. |
P4K2-HH1S2 |
P4K2-HH1S4 |
|
VIDEO INPUT |
HDMI X 1 |
HDMI X 1 |
|
VIDEO OUTPUT |
HDMI X 2 |
HDMI X 4 |
|
BANDWIDTH |
18 Gbps |
|
|
HDMI VERSION |
HDMI 1.4 and 2.0 compliant |
|
|
HDCP VERSION |
HDCP 1.4 / 2.2 |
|
|
RESOLUTION |
HDMI 4K x 2K @60p HDMI 4K x 2K @60p/1080p/1080i/720p/576p/576i/480p/480i HDMI 1080p 3D @60p |
|
|
COLOR DEPTH |
24bit/30bit/36bit |
|
|
AUDIO FORMAT |
LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio |
|
|
DATA RATE |
Data transfer throughput 6.0Gbps |
|
|
RS232 control |
TxD , RxD , SG |
|
|
OPERATING TEMPERATURE |
0~65°C |
|
|
OPERATING HUMIDITY |
5%~90% RH |
|
|
DIMENSION |
154 x 69.2 x 23 mm |
194 x 114.7 x 28 mm |
|
WEIGHT |
255 G |
604 G |
| FILE NAME | FILE FORMAT | SIZE | DATE | |
|---|---|---|---|---|
| DATASHEET_P4K2-HH1S4_HDMI 2.0 SPLITTER PARTILINK 4June2019 | 335 KB | 2019-07-08 |
