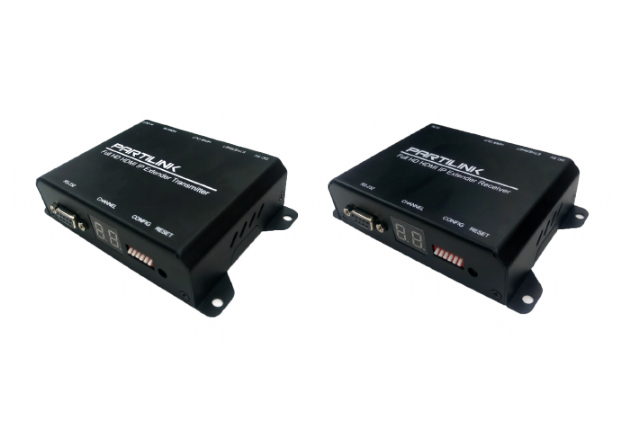

1080P HDMI EXTENDER

P2K-HRSL3E1 / P2K-LHRS1E3

P2K-HRSL3E1-P / P2K-LHRS1E3-P (PoE)

Technologies

  • 1080P FHD
  • Stereo 192kbps
  • No Virus Risk
  • Firmware upgrade (USB)
  • IPv4
  • TCP
  • UDP
  • RTSP
  • RTP
  • DHCP
  • IGMP
  • Shipping Now
Try me

OVERVIEW
The Partilink 1080P HDMI Extender series is composed of transmitter and receiver to extend HDMI, RS-232 and IR over IP via CATx cable and Gigabite Ethernet switch. Suitable for point to point uni-cat, point to

multi-point or multi-point to multi-point multi-cast.

FEATURES
-
RS-232 bi-directional extension
-4 bits switch for 16 stream channel selection
-2 bits switch for 8 RS-232 Baud rate setting
-HDCP compliant and Blu-Ray ready
-IR extension

-Automatic EDID configuration
-Networking environment under 10/100 BASE-T switch hub and CAT-5 cable switch hub and CAT-5 cable
-Point to point extension, unicast and multicast

-Point to point extension via CATx without Ethernet switch up to 100M
-PC tool Ethernet and web UI control
-P2K-HRSL3E1-P / P2K-LHRS1E3-P version supports Power over Ethernet


APPLICATION

-
Unicast, point to point extension
-
Multicast, point to multi points or multi points to multi points extension

-
Screen wall installation
-Unicast
-Multicast
-Video Distribution
-Matrix Distribution



MODEL NO.

P2K-HRSL3E1 P2K-HRSL3E1-P

Transmitter

P2K-LHRS1E3 P2K-LHRS1E3-P

Receiver

INPUT

HDMI Type-A female connector

None

OUTPUT

HHDMI Type-A female connector for loop through

HDMI Type-A female connector

IR

3.5mm phone jack for IR emitter to control video source device

3.5mm phone jack for IR receiver cable to receive remote signal

COMPRESSION

  • H.264 compression video format Full HD encoder/ decoder
  • MP3 compression audio format stereo 192Kbps encoder/ decoder.
  • Media stream up to 18Mbps

HDMI

INPUT RESOLUTION

1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50,

480i 60/50, 480p 60/50

HDMI

OUTPUT RESOLUTION

1080p 60/50, 1080i 60/50, 720p 60/50, 480i 60/50,

480i 60/50, 480p 60/50

AUDIO FORMAT

Stereo 192Kbps

IP PROTOCOL

TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4

LAN PORT

RJ-45 connector for 10/100 BASE-T CAT-5 extension

SERIAL

DB-9 female connector for RS-232

POWER INPUT

  • 2.0mm power jack for DC5V/2A
  • RJ-45, Power over Ethernet 36V~57V / 7W in (PoE model only)

OPERATING TEMPERATURE

0~55°C

OPERATING HUMIDITY

5%~90% RH

POWER ADAPTER

AC in 100~240V (50~60Hz), DC5V/2A out

ESD protection air gap discharge ±8KV, contact discharged ±4KV

DIMENSION

130 x 82 x 30.25 mm ( L x W x H )

WEIGHT

290 G per transmitter or receiver unit
