OVERVIEW

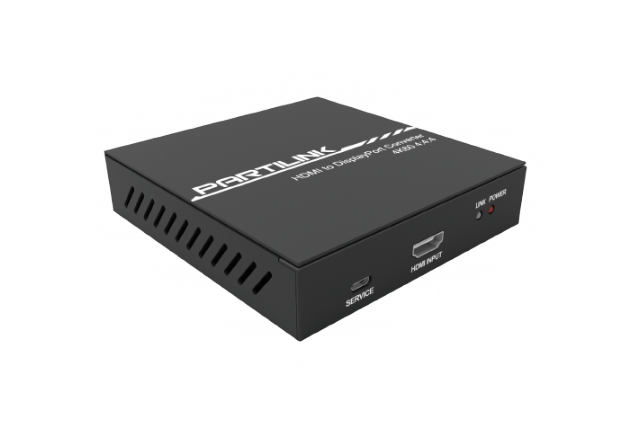

P4K2-H1D2 is a HDMI 2.0 to DisplayPort 1.2a convertor which provides 1 HDMI input and 2 DisplayPort outputs. It supports resolution up to 4Kx2K@60 4:4:4 color sampling. Beside the converter function,
it can be taken as a HDMI to DP 1x2 splitter
FEATURES
-DisplayPort 1.2a & HDMI 2.0 compliant
-DisplayPort 1.2a & HDMI 2.0 compliant
-HDMI input supports video bandwidth up to 18Gbps.
-HDCP 1.4 / 2.2
-DisplayPort output supports link rate RBR/HBR/HBR2
-Resolution up to 4Kx2K@60 4:4:4 8bits
-Stereo audio
-HDCP 1.4 / 2.2
-DisplayPort output supports link rate RBR/HBR/HBR2
-Resolution up to 4Kx2K@60 4:4:4 8bits
-Stereo audio
-Firmware upgrade via USB port
APPLICATION
|
MODEL NO. |
P4K2-H1D2 |
|
INPUT INTERFACE |
1 x HDMI Type A female Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4 |
|
OUTPUT INTERFACE |
2 x DisplayPort female Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4 |
|
AUDIO |
Stereo, 32k~192kHz sampling rate |
|
POWER |
DC 12V/2A, locking barrel connector |
|
ENVIRONMENT |
Operating temperature 0~45°C Operating humidity 20~90% Storage temperature -20~60°C |
|
DIMENSION |
108 x 114 x 24.6 mm (W x L x H) |
|
WEIGHT |
356 G |
| FILE NAME | FILE FORMAT | SIZE | DATE | |
|---|---|---|---|---|
| DATASHEET_HDMI to DP CONVERTER _P4K2-H1D2 PARTILINK_4June2019 | 307 KB | 2019-07-08 |
 Download
|
