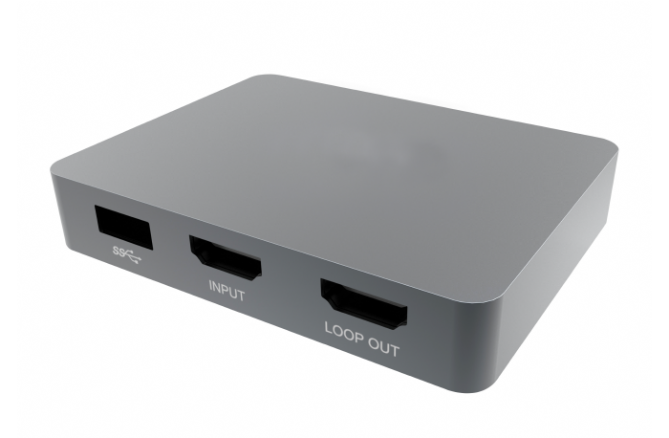

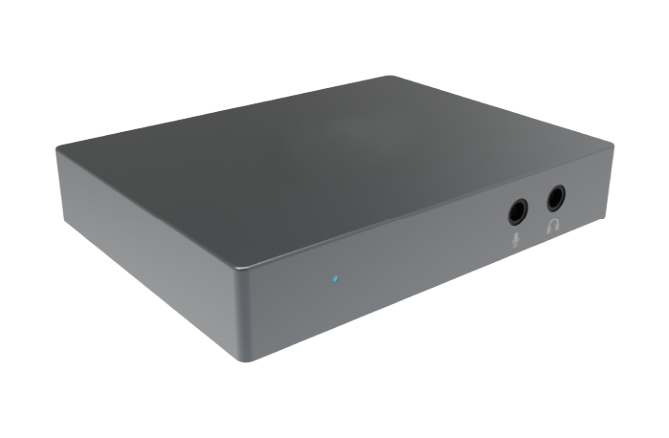

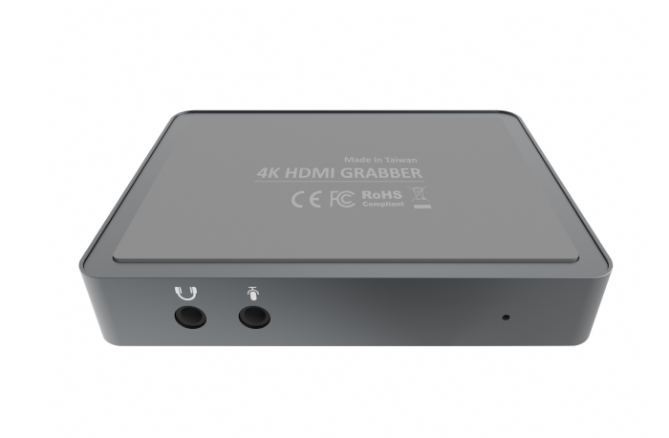

4K HDMI Grabber
4K UHD HDMI to USB 3.0 Video Grabber
Supports 4K @ 60fps 4:4:4 video input
and captures audio/video at 1080p 60fps via USB.
Technologies
Partilink 4K HDMI Grabber is designed to support 4K UHD video output and captures audio/video HDMI source; transferring audio/video between the grabber and your PC/NB through USB, easily enables streamers to capture each sound and movement. With Partilink 4K HDMI Grabber, it will not affect the performance of your computer and benefit from a stable video capture in 1920 x 1080p at 60 fps.
Features
- Support HDMI 2.0 and UHD resolution up to 4K at 60 frames per second.
- Support HDMI 2.0 loop-through output
- USB 3.0 Video capture at 1080p @60 fps
- Video capture in 1920 x 1080p at 60 frames per second
- Support USB 3.0 and USB 2.0 data uplink
- Audio capture mixed with external line-in audio at 48 kHz sampling rate
- Support true 24-bit color and provides consistent frame rate performance regardless of video content
- Support UVC 1.0
- Support stereo microphone input and stereo headphone output
- Captures PS4 Pro and Xbox One X game display
- GUI control interface for Windows
- No external power supply required
- Plug-n-play
Application
Simply plug-in your device as the source into HDMI input. Connect your mic and headset into their perspective connectors, and a 4K monitor into the HDMI loop out. Use the USB 3.0 port to connect your PC/NB and run your video player software from your computer for live streaming or recordings.
Enjoy a high-resolution video quality and crystal clear sound on your PC/NB with our 4K HDMI Grabber.
|
MODEL NAME |
4K HDMI Grabber |
|
DESCRIPTION |
4K UHD HDMI to USB 3.0 Video Grabber |
|
INPUT INTERFACE |
1 x HDMI type A |
|
1 x 3.5mm audio input |
|
|
INPUT RESOLUTION |
640 x 480p, 1280 x 720p, 1920 x 1080p, 3840 x 2160p |
|
HDMI VIDEO SAMPLING |
4:4:4 format |
|
OUTPUT INTERFACE |
1 x HDMI type A, loop-through output |
|
1 x USB Type A (USB 3.0, USB 2.0), supporting UVC video and audio |
|
|
1 x 3.5 mm audio output |
|
|
OUTPUT RESOLUTION |
Up to 3840 x 2160p @ 60 Hz via HDMI |
|
Up to 1080p @ 60 Hz via USB |
|
|
UVC COLOR SPACE |
YUY2 (4:2:2), RGB 4:4:4 (MJPG) |
|
AUDIO INPUT |
HDMI, 16-bit PCM encoded audio at 44.1kHz, 48kHz, 96kHz and 192kHz sampling rates |
|
Stereo microphone input |
|
|
AUDIO OUTPUT |
16-bit PCM encoded audio at 48kHz sampling rates |
|
Stereo headphone output |
|
|
System requirements |
CPU : i5 Dual Core 2.8GHz or higher RAM : 4GB or higher OS :Microsoft Windows (8 and above), Mac OS X (10.13 and above) |
|
ENVIRONMENT |
Operating temperature 0~45℃ Operating humidity 20~90% Storage temperature -20~60℃ |
|
DIMENSION |
65 x 85.6 x 15.2 mm (W x L x H) |
|
WEIGHT |
91G |
|
AVAILABLE IN |
Titanium Gray |
|
ACCESSORIES |
USB 3.0 CABLE 1.2 M |
|
*does not support HDCP |
|
