HDMI 2.0 - 1 x 4

P4K2-HH1S4

Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • HDCP 2.2
  • HDCP 1.4
  • TelNet Control
  • Firmware upgrade (USB)
Try me

OVERVIEW

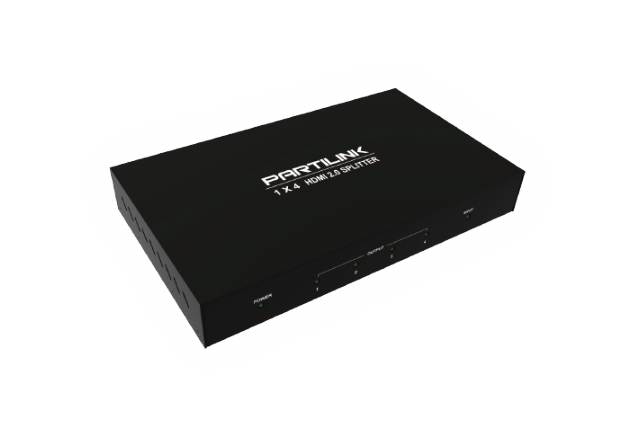

P4K2-HH1S4 is a HDMI 2.0 splitter to distribut one video images and audio to four displays.

FEATURES
-
Ultra HD video resolution up to 4K @60Hz 4:4:4 display

-
HDCP 1.4 / 2.2

-
EDID parsing and copy

-Cascade up to 16 layers
-Display HDMI 2.0 YuV 4:4:4 format
-
Firmware upgradable via micro USB

-
7.1
CH audio

-LED indicator for power and active status
-
RS232 control

MODEL NO.

P4K2-HH1S2

P4K2-HH1S4

VIDEO INPUT

HDMI X 1

HDMI X 1

VIDEO OUTPUT

HDMI X 2

HDMI X 4

BANDWIDTH

18 Gbps

HDMI VERSION

HDMI 1.4 and 2.0 compliant

HDCP VERSION

HDCP 1.4 / 2.2

RESOLUTION

HDMI 4K x 2K @60p

HDMI 4K x 2K @60p/1080p/1080i/720p/576p/576i/480p/480i HDMI 1080p 3D @60p

COLOR DEPTH

24bit/30bit/36bit

AUDIO FORMAT

LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio

DATA RATE

Data transfer throughput 6.0Gbps

RS232 control

TxD , RxD , SG

OPERATING TEMPERATURE

0~65°C

OPERATING HUMIDITY

5%~90% RH

DIMENSION

154 x 69.2 x 23 mm
 L x W x H

194 x 114.7 x 28 mm
L x W x H

WEIGHT

255 G

604 G

FILE NAME FILE FORMAT SIZE DATE
DATASHEET_P4K2-HH1S4_HDMI 2.0 SPLITTER PARTILINK 4June2019 pdf 335 KB 2019-07-08 Download
