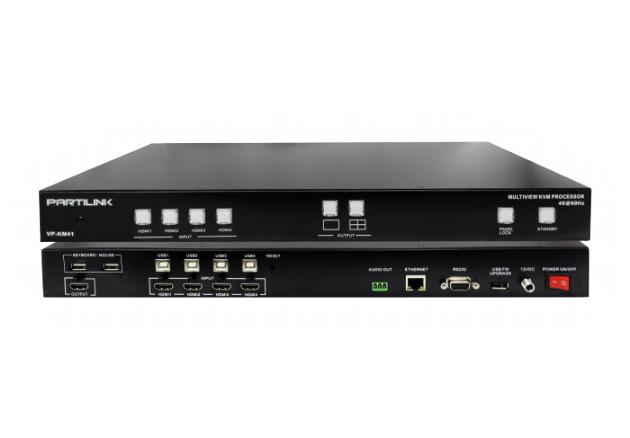

KM41

QUADVIEW KVM PROCESSOR
Ref: VP-KM41
For simultaneous display and control of four computers
via HDMI 1.4/2.0
with only one mouse and one keyboard
single output screen up to 4K UHD @60Hz  4:4:4
Cascadable: Display and control up to 16 HDMI KVM inputs via one mouse and one Keyboard

Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • 18 gbps (bandwidth)
  • HDMI 2.0
  • Stereo 192kbps
  • Front panel buttons
  • HDCP 2.2
  • HDCP 1.4
  • Touch screen
  • User Friendly
  • No Virus Risk
  • TelNet Control
  • Firmware upgrade (USB)
  • 24-7 nonstop working
  • quadview
  • RemoteControl
  • Cascade 5 Pcs
  • Keyboard Centralized Control
  • Mouse Centralized Control
  • Shipping Now
Try me

OVERVIEW
With Secure KVM Switch, The Partilink VP-KM41 Quadview KVM processor is designed to display up to four USB HDMI computers in high resolution up to 4K @60Hz 4:4:4 color sampling on a single screen in full view and quad view and the KVM control of every sources with one set of mouse/keyboard improves the operational efficiency of real-time monitoring.

FEATURES
-
Fast switching between the input channels in full screen mode or the quadview mode
-Seamlessly move your mouse from monitor to monitor across computers in quad view mode
-4K@60Hz full screen and quad view layout configuration
-Input resolution up to 4K@60Hz, 4:4:4 color sampling
-Output resolution up to 4K@60Hz, 4:4:4 color sampling
-Scaling up to 4K@60Hz, 4:4:4 color sampling and downscaling as well
-Deep Color and HDCP 1.4 / 2.2

-Cascading up to 5 units to create max. 16 host devices controlled by 1 set of keyboard and mouse.

-Stereo audio output

-Control by USB keyboard/ mouse console, front panel button, IR remote control,
RS232/Telnet and Web UI

-Firmware upgrade via USB port
APPLICATION
-
Hospitality in lobby, hospital, clinic
-Conference room presentation
-Advertising in shopping mall, supermarket, restaurant,
-Broadcast in airport, bus or train station, classroom, Casino
-Rental and staging
-Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
-Integrating with DVR, IP camera as a surveillance system
-Monitoring in bank and stock market


MODEL NO.

VP-KM41

HARDWARE

System Structure

pure hardware

Operating System

no CPU and operating system

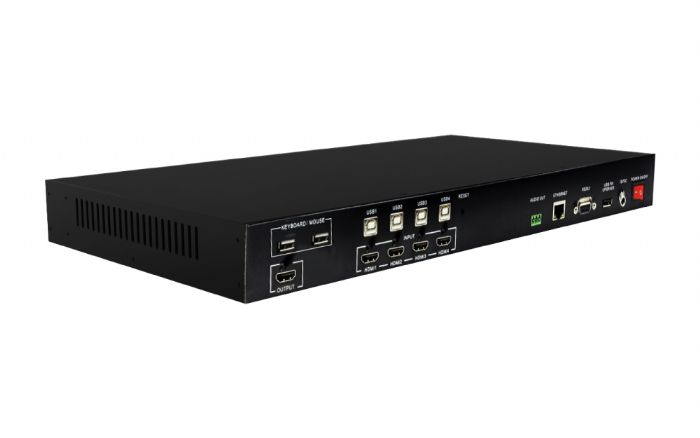

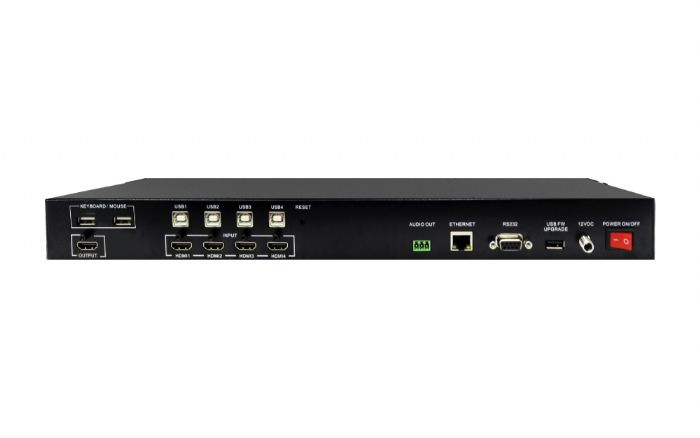

INPUT/ OUTPUT

Inputs

4 x HDMI 2.0 with locking

Output

1 x HDMI 2.0 with locking

Audio Output

terminal block 3 pole, stereo

IMAGE PROCESSING

Display Mode

full screen, quad view, PIP, PoP

Input Resolution

up to 3840 x 2160@60Hz, 4:4:4 color sampling

Max Output Resolution

up to 3840 x 2160@60Hz, 4:4:4 color sampling

Output Resolutions

3840x2160 - 60Hz, 50Hz, 30Hz              1920x1080 - 60Hz

1280x720 - 60Hz                                  720x480 - 60Hz

Output Color Depth

8 bpc (24 bit/px)

Scaler

scaling up to 4K@60Hz, 4:4:4 color sampling and downscaling as well

Video Bandwidth

up to 18 Gbps

HDMI Compliance

HDMI 1.4 and HDMI 2.0

HDCP Compliance

HDCP 1.4 and 2.2

KVM

Host Devices

4 x USB type B for host devices

KVM

2 x USB type A for keyboard and mouse console

CONTROL METHODS

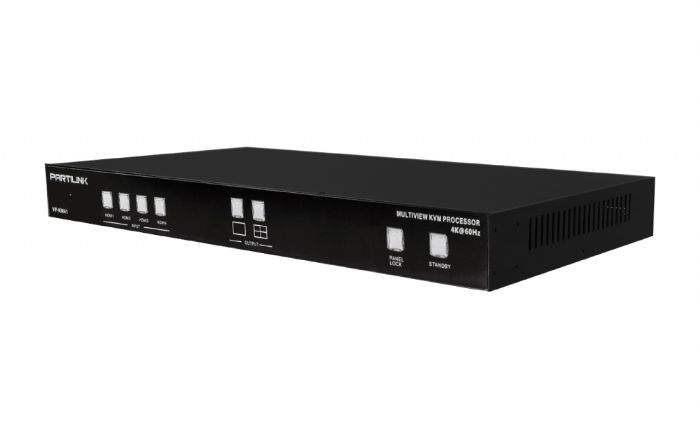

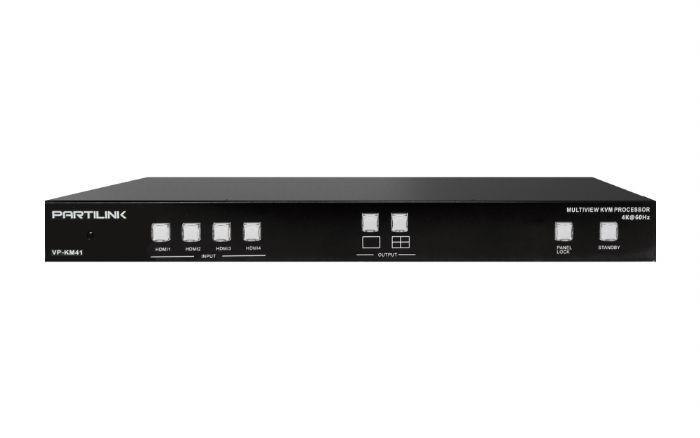

Front Panel Buttons

4 x select HDMI 1,2,3,4 input and/or audio, 2 x display layout, 1 x Panel lock, 1x Standby

IR

1 x IR remote control

RS232/ Telnet

1 x D9 Female Connector / Compatible with third party control system

Ethernet Port

1 x RJ45

Web UI

browser / touch screen

STABILITY

Safety

hardware structure, no risk of virus interference

Running Time

no auto-reboot during 365 days/year, 7days/7, 24h/24

FIRMWARE

Possible Upgrade

1 x USB 2.0

LED INDICATOR

Input

blue backlight

Standby On

red backlight

Output

blue backlight

Standby Off

green backlight

Panel Lock

blue backlight

POWER

Internal Power Supply

DC 12V/2A, locking barrel connector

Power Consumption

15W

Power Adaptor

universal power adapter

ENVIRONMENT

Operating Temperature

0 °C~45°C

Operating Humidity

20~90% RH

Storage Temperature

-20 °C~60 °C

PHYSICAL

Dimensions

440.4 x 230 x 45 mm (L x W x H, standard 1U)

Fixing Components

Rear bracket, footpad and screws

Weight

2.8 KG

FILE NAME FILE FORMAT SIZE DATE
DATASHEET_VP-KM41 QUADVIEW KVM PARTILINK 4June2019.pdf pdf 1.2 MB 2019-07-08 Download
USER_MANUAL_QUADVIEW KVM PROCESSOR_PARTILINK_VP-KM41_190603 pdf 1.4 MB 2019-07-08 Download
