MX8-8 Matrix
Ref: X13-H08H08
Multi-channel Distribution of video & digital audio
From 8 sources to 8 displays
4K @60Hz YUV 4:4:4, 18 Gbps
Audio de-embedded

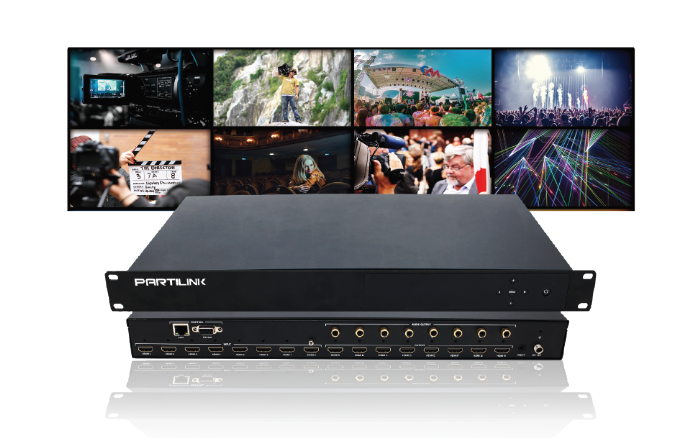

Partilink MX8-8 is a HDMI 2.0 8x8 HDMI matrix switcher supporting the distribution of video up to 4K @60Hz YUV 4:4:4, 18 Gbps and multi-channel digital audio from 8 sources to 8 displays. Audio de-embedded from digital HDMI audio is available to output externally as well. Control by front panel button, IR remote, web UI and ASCII command made it easy to build up display and control system.
FEATURES
- HDMI 2.0b compliant
- HDCP 2.2 and HDCP 1.4 compliant
- Up to 4K @60Hz YUV 4:4:4 each HDMI ports
- Cross-switch 4 HDMI devices to 4 HDMI displays in 4K@60Hz
- Supports 7.1 channel digital audio (LPCM, Dolby, True HD and DTS-HD Master Audio)
- Supports de-embedded audio to output via coax port
- Control via front panel button, IR remote, web UI and RS232
- Locking HDMI connector screws
SPECIFICATION
|
MODEL NO. |
X13-H08H08 |
|
|
INPUT/ OUTPUT |
Inputs |
8 x HDMI Type A [19-pin female] |
|
1 x LAN [RJ45, Control] |
||
|
1 x RS-232 [9-pin D-sub, Control] |
||
|
1 x IR EXT [3.5mm Stereo Mini-jack] |
||
|
Outputs |
8 x HDMI Type A [19-pin female] |
|
|
8 x Coaxial Audio [RCA] |
||
|
IMAGE PROCESSING |
HDMI Compliance |
HDMI 1.4 And HDMI 2.0 |
|
HDCP Compliance |
HDCP 1.4 And HDCP 2.2 |
|
|
Video Bandwidth |
18 Gbps |
|
|
Video Resolutions |
up to 4K @50/60Hz (YUV 4:4:4), 4K @30Hz, 1080p @120Hz, and 1080p 3D @60Hz |
|
|
Color Depth |
8-bit, 10-bit, 12-bit |
|
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
|
|
Audio |
HDMI Audio Formats |
LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
|
Audio Formats |
PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K, 16/20/24bit |
|
|
POWER |
Power Supply |
input: AC100~240V 50/60Hz output: DC12V/3A (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
26.5W (max) |
|
|
ENVIROMENT |
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Operating Humidity |
20% ~ 90% RH (non-condensing) |
|
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
|
PHYSICAL |
Housing |
metal enclosure |
|
Color |
black |
|
|
Dimensions |
483mm x 253mm x 44.5mm (L x W x H) |
|
|
Weight |
3.35 KG |
|
|
PACKAGE CONTENTS |
1 x 8x8 HDMI Matrix |
|
|
1 x 12V/3A Locking Power Adaptor |
||
|
1 x IR Remote |
||
|
1 x Wideband IR Receiver cable |
||
|
1 x RS-232 male to female serial cable |
||
|
1 x User Manual |
||
