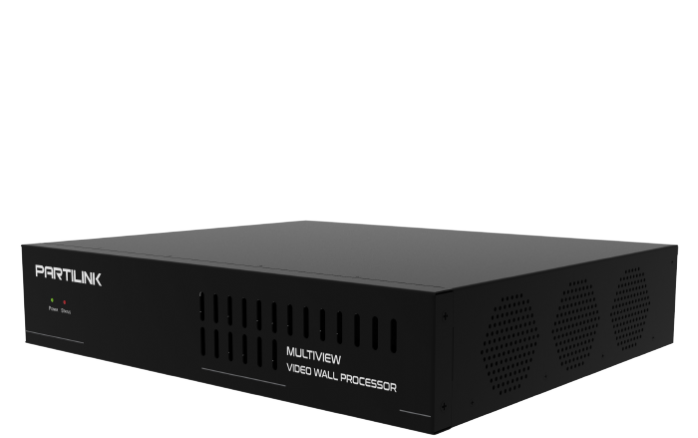

MW4-4
Multiview VideoWall Processor
4inputs-4outputs HDMI2.0
Ref: V23-H04H04

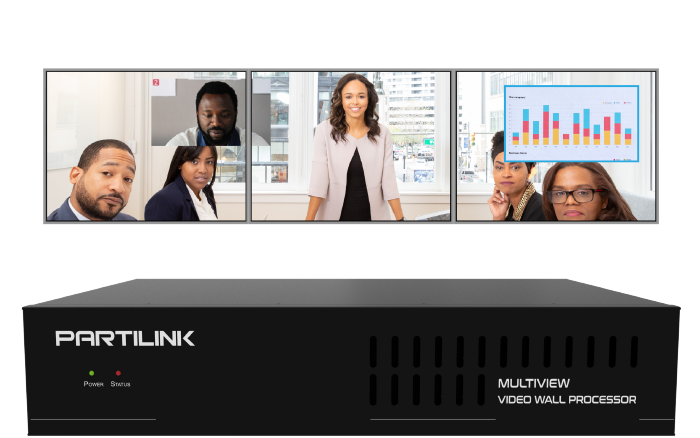

Simultaneous display of 4 HDMI 2.0
on 4 screens video wall
Resolutions 4K UHD on each output
All in one first class device
Technologies
The Partilink MW4-4 HDMI 2.0 Multiview Video Wall Processor is an all-in-one video wall system with multiview, scaling, customizing screen layouts, audio management and matrix. Its user-friendly web UI, RS232, RS485, RS422 and telnet. Modular and robust design made the video wall control effectively.
-Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2 sources
-Output resolution up to 4K@60Hz, 4:4:4 color sampling
-Upscaling up to 4K@60Hz, 4:4:4 color sampling and able to downscale as well
-Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen layout
-Control by web UI, RS232, RS485, RS422 and telnet
-Built-in power supply
-Advertising in shopping mall, supermarket, restaurant,
-Broadcast in airport, bus or train station, classroom, Casino
-Rental and staging
-Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
-Integrating with DVR, IP camera as a surveillance system
-Monitoring in bank and stock market
SPECIFICATION
|
MODEL NO. |
V23-H04H04 |
|
|

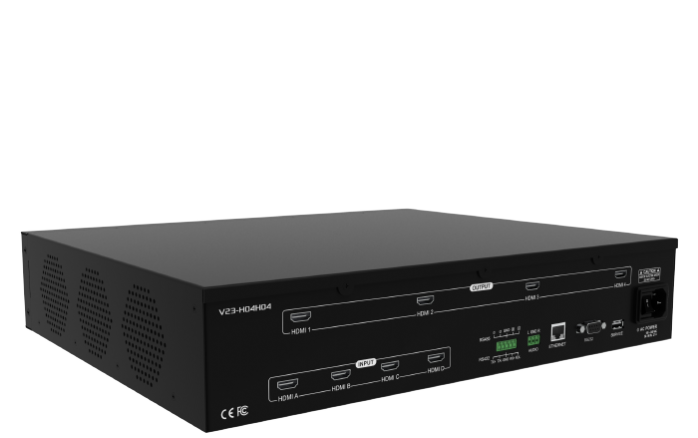

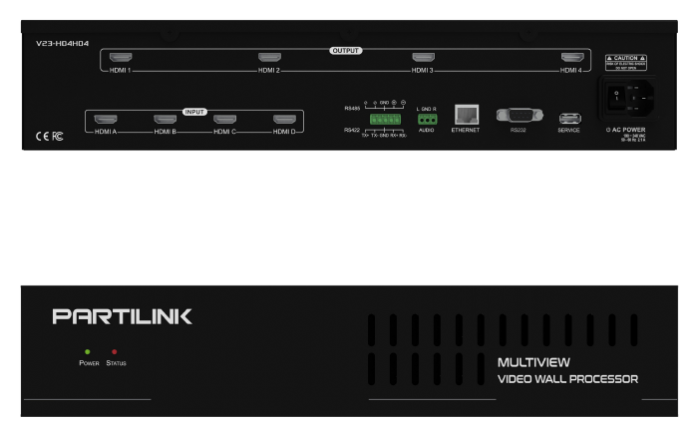

INPUT/OUTPUT |
Inputs |
4 x HDMI 2.0 |
|
Output |
4 x HDMI 2.0 |
|
|
Audio Output |
terminal block 3 pole, stereo |
|
|
IMAGE PROCESSING |
Display Mode |
full screen, PIP, POP, rotation R90°/ L90°, cross screen, quadview, matrix |
|
Input Resolution |
4096 x 2160p (60Hz, 50Hz, 24Hz) 3840 x 2160p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz) 2560 x 1080p (60Hz) 1920 x 1080p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz) 1920 x 1080i (60Hz, 50Hz) 1280 x 720p (60Hz) 720 x 480p (60Hz, 50Hz) 720 x 576p (50Hz) 640 x 480p (60Hz, 50Hz) |
|
|
Input Color format |
4:4:4 |
|
|
Output Resolutions |
4096 x 2160p (60Hz ,50Hz, 24Hz) 3840 x 2160p (60Hz, 50Hz, 30Hz, 24Hz) 2048 x 2048p (57Hz) 1920 x 1200p (60Hz) 1920 x 1080p (60Hz, 50Hz, 30Hz, 24Hz) 1600 x 1200p (60Hz) 1280 x 720p (60Hz, 30Hz) |
|
|
Output Color Format |
4:4:4 |
|
|
Output Color Depth |
24 bpp |
|
|
Scaler |
scaling up to 4K @60Hz, 4:4:4 color sampling and downscaling as well |
|
|
Video Bandwidth |
up to 18 Gbps |
|
|
HDMI Compliance |
HDMI 1.4 And HDMI 2.0 |
|
|
HDCP Compliance |
HDCP 1.4 And HDCP 2.2 |
|
|
CONTROL METHODS |
RS232 / Telnet |
1 x D9 female connector / compatible with third party control system |
|
RS485 / RS422 |
5-pole terminal block |
|
|
Ethernet Port |
1 x RJ45 / compatible with third party control system |
|
|
Web UI |
browser / touch screen via smartphone or tablet |
|
|
STABILITY |
Safety |
hardware structure, no risk of virus interference |
|
Running Time |
no auto-reboot during 365 days/year, 7days/7, 24h/24 |
|
|
FIRMWARE |
Possible Upgrade |
1 x USB 2.0 |
|
POWER |
Power Supply |
built-in power module 100-240 VAC / 50/60 Hz |
|
Power Consumption |
90W |
|
|
Redundant Power Supply |
no |
|
|
ENVIROMENT |
Operating Temperature |
0°C ~ 40°C |
|
Operating Humidity |
0% ~ 80% RH |
|
|
Storage Temperature |
-20°C ~ 60°C |
|
|
PHYSICAL |
Dimensions |
440 x 370 x 88 mm (L x W x H) |
|
Weight |
3.7 KG |
|
|
Fixing Components |
rear bracket, footpad and screws |
|
| FILE NAME | FILE FORMAT | SIZE | DATE | |
|---|---|---|---|---|
| MP_Partilink Multi Video Wall 2×2(8RV23-H04H04B0PA)_User Manual_20191213 | 5.1 MB | 2019-12-13 |
