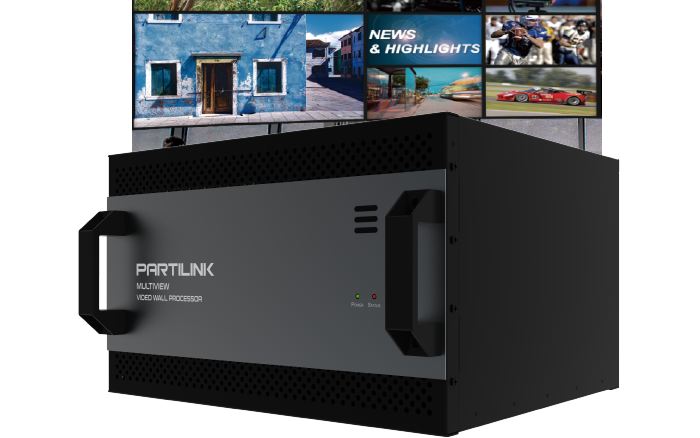

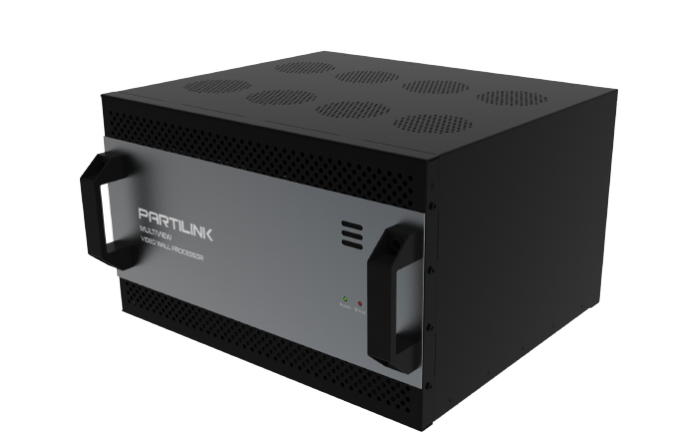

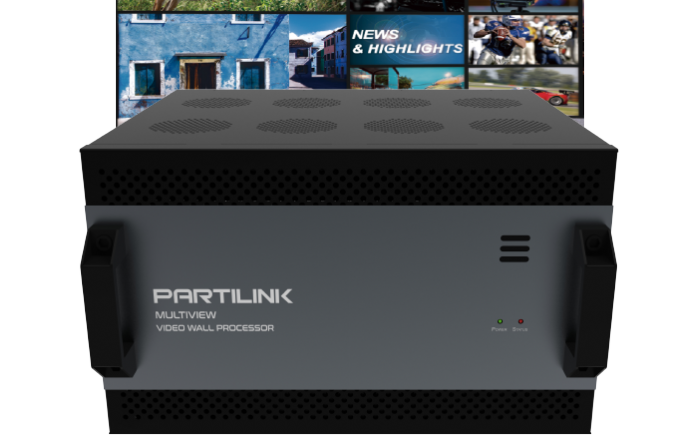

MW4-10

Multiview VideoWall Processor
4inputs-10outputs HDMI2.0
Ref: V33-H04H10
Simultaneous display of 4 HDMI 2.0
on 10 screens video wall
Resolutions 4K UHD on each output
All in one first class device

Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • リアル影像
  • 18 gbps (バンド幅)
  • HDMI 2.0
  • Stereo 192kbps
  • HDCP 2.2
  • Frame フレーム同期
  • User Friendly ユーザーフレンドリー
  • ノーウイルスリスク
  • TelNet コントロール
  • RS485
  • 24-7ノンストップ動作
  • web user interface over IP
  • Multiview マルチビュー
  • Videowall ビデオウォール
  • Cross-screen クロススクリーンディスプレイ
  • flip フリップ
  • ただ今出荷
Try me
OVERVIEW
The Partilink MW4-10 Multiview Video Wall Processor is an all-in-one video wall system with multiview, scaling, customizing screen layouts, audio management and matrix. Its user-friendly web UI, RS232, RS485, RS422 and telnet. Modular and robust design made the video wall control effectively.






FEATURES
-Fast switching between input channels and combined multiple source images on video wall
-Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2 sources
-Input resolution up to 4K@60Hz, 4:4:4 color sampling
-Output resolution up to 4K@60Hz, 4:4:4 color sampling
-Upscaling up to 4K@60Hz, 4:4:4 color sampling and able to downscale as well

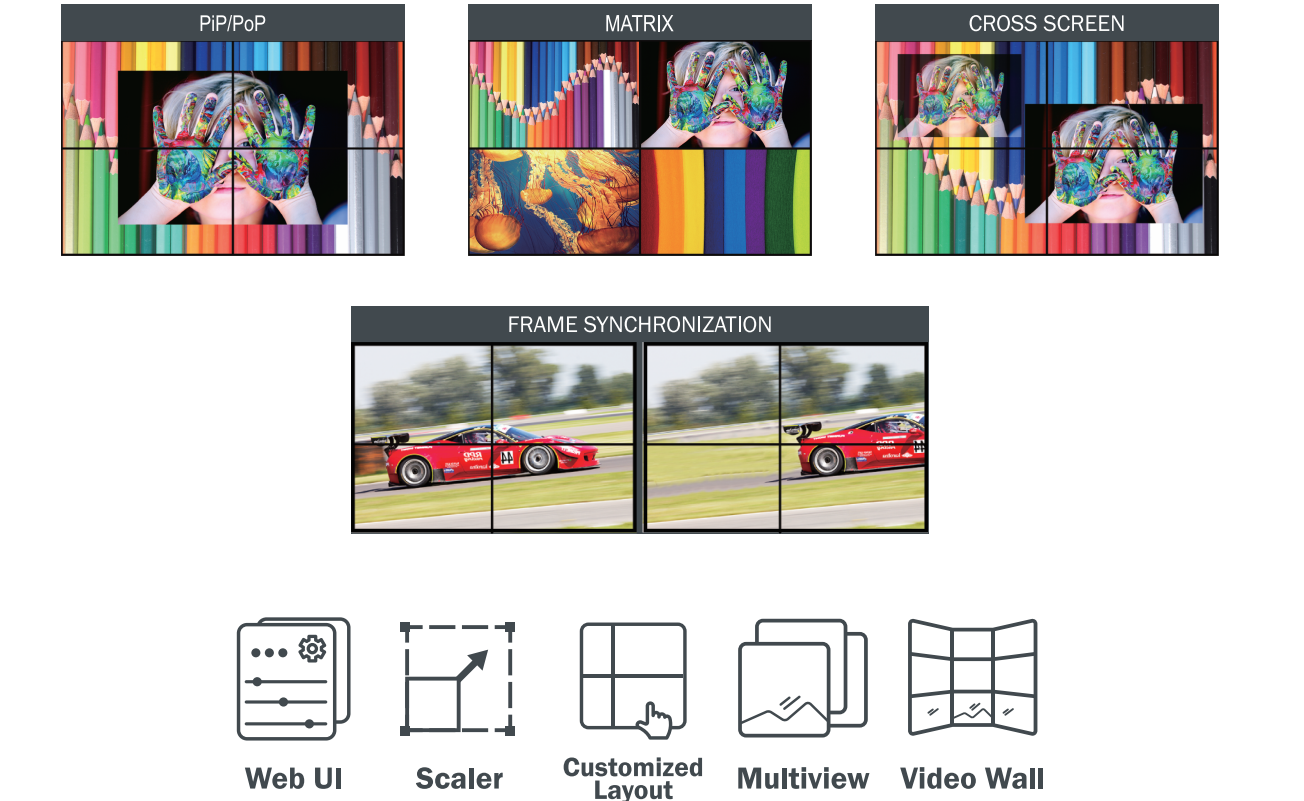

-PiP, PoP, quad-view flip and multiple customized screen layout configurations for video wall and matrix display
-Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen layout
-Stereo audio output
-Control by web UI, RS232, RS485, RS422 and telnet
-Firmware upgrade via USB port
-Redundant power supply
​​​​
APPLICATION
-Hospitality in lobby, hospital, clinic
-Conference room presentation
-Advertising in shopping mall, supermarket, restaurant,
-Broadcast in airport, bus or train station, classroom, Casino
-Rental and staging
-Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
-Integrating with DVR, IP camera as a surveillance system
-Monitoring in bank and stock market

SPECIFICATION

MODEL NO.

V33-H04H10

V43 -H04H16

HARDWARE

System Structure

pure hardware

Operating System

no CPU and operating system

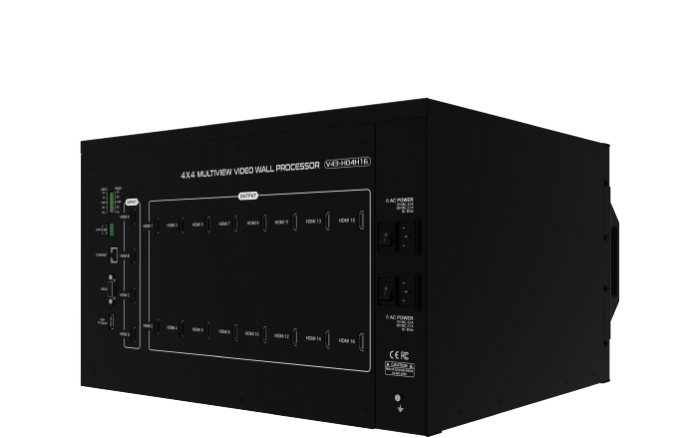

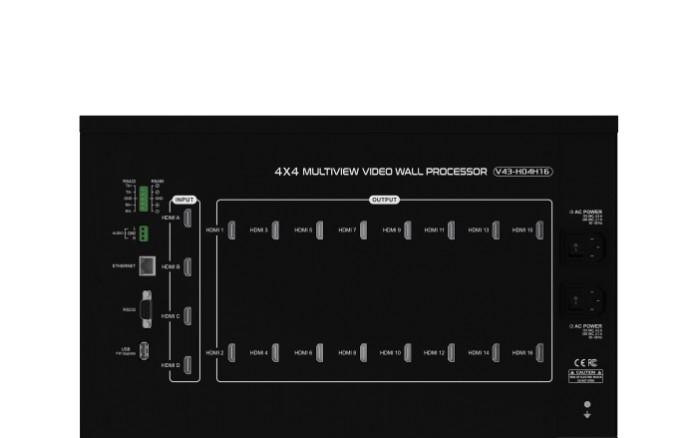

INPUT/ OUTPUT

Inputs

4 x HDMI 2.0

Output

10 x HDMI 2.0

16 x HDMI 2.0

Audio Output

terminal block 3 pole, stereo

IMAGE PROCESSING

Display Mode

full screen, PIP, POP, rotation R90°/ L90°, cross screen, quadview

Input Resolution

4096 x 2160p (60Hz, 50Hz, 24Hz)

3840 x 2160p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz)

2560 x 1080p (60Hz)

1920 x 1080p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz)

1920 x 1080i (60Hz, 50Hz)

1280 x 720p (60Hz)

720 x 480p (60Hz, 50Hz)

720 x 576p (50Hz)

640 x 480p (60Hz, 50Hz)

Input Color format

4:4:4

Output Resolutions

4096 x 2160p (60Hz ,50Hz, 24Hz)

3840 x 2160p (60Hz, 50Hz, 30Hz, 24Hz)

2048 x 2048p (57Hz)

1920 x 1200p (60Hz)

1920 x 1080p (60Hz, 50Hz, 30Hz, 24Hz)

1600 x 1200p (60Hz)

1280 x 720p (60Hz, 30Hz)

Output Color Format

4:4:4

Output Color Depth

24 bpp

Scaler

scaling up to 4K @60Hz,

4:4:4 color sampling and downscaling as well

Video Bandwidth

up to 18 Gbps

HDMI Compliance

HDMI 1.4 And HDMI 2.0

HDCP Compliance

HDCP 1.4 And HDCP 2.2

CONTROL METHODS

RS232 / Telnet

1 x D9 female connector /

compatible with third party control system

RS485 / RS422

5-pole terminal block

Ethernet Port

1 x RJ45 / compatible with third party control system

Web UI

browser / touch screen via smartphone or tablet

STABILITY

Safety

hardware structure, no risk of virus interference

Running Time

no auto-reboot during 365 days/year, 7days/7, 24h/24

FIRMWARE

Possible Upgrade

1 x USB 2.0

POWER

Power Supply

dual built-in power module 100-240 VAC / 50/60 Hz

Power Consumption

205W

300W

Dual Power Supply

yes

ENVIROMENT

Operating Temperature

0°C ~ 40°C

Operating Humidity

20% ~ 90% RH

Storage Temperature

-20°C ~ 60°C

PHYSICAL

Dimensions

440 x 264 x 421 mm (L x W x H)

Weight

14.8 KG

16.3 KG

Fixing Components

handles, footpad and screws

FILE NAME FILE FORMAT SIZE DATE
MW4-10 HDMI 2.0 Multiview Video Wall Processor V33-H04H10 data sheet191219 pdf 890 KB 2019-12-26 Download
