QUADVIEW DUO

MULTIVIEWER PORTRAIT & LANDSCAPE
QUADVIEW DUO

Ref: M43-H04H02

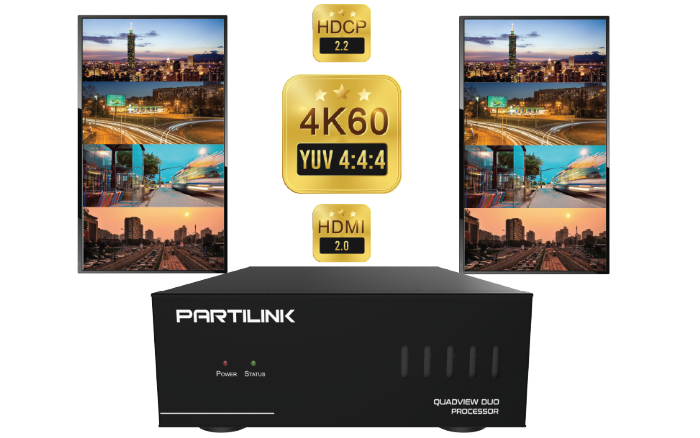

For simultaneous display of four HDMI 2.0/1.4 sources on two vertical screens (Portrait) or two Horizontal screens (Landscape) with output resolutions up to real 4K60 UHD - 4K @60Hz 3840 × 2160 YUV4:4:4





Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • 3d ready
  • 18 gbps (bandwidth)
  • HDMI 2.0
  • HDCP 2.2
  • User Friendly
  • No Virus Risk
  • telnet Control Via RS232
  • TelNet Control
  • Firmware upgrade (USB)
  • 24-7 nonstop working
  • web user interface over IP
  • Multiview
  • quadview
  • Shipping Now
Try me

OVERVIEW

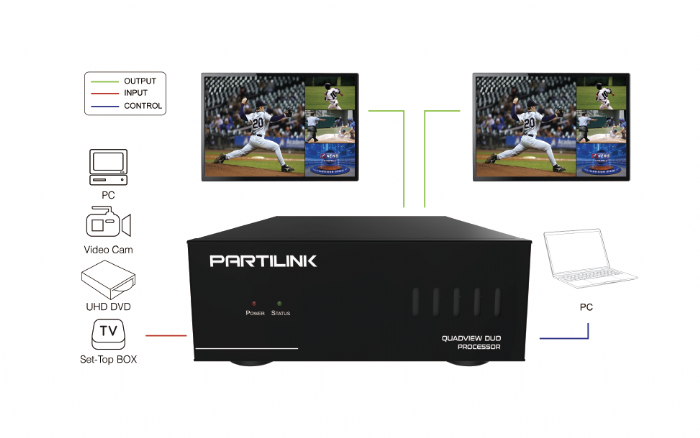

Partilink QuadView Duo is a HDMI 2.0 Multiview Processor with 4 HDMI inputs and 2 HDMI outputs. It enables user to display simultaneously four HDMI sources on two vertical screens or 2 horizontal screens (4K@60Hz 4:4:4). It is super easy to use and control via its web user interface, Telnet & serial ports to customize your HDMI contents on TVs.
This first class quality design is an ideal solution for 24/7 display in mission critical applications.

The Landscape and Portrait Display possibility in Multiview 4k60hz mode will satisfy user needs of impressive and singular AV displays in either simple digital signage display or chain store (show room, chain store, gambling shop, bar, casino & corporate lobby).

At a reasonnable price with real 4K60hz on each input and output, that's a perfect partner for system integrator to plan project solution easily.




FEATURES
• Fast switching between input channels and combined multiple source images
• Display modes including portrait multiview and landscape multiview
• Supports input resolution and output resolution up to 4K@60Hz 4:4:4 color sampling for each port
• Upscaling up to 4K@60Hz 4:4:4 color sampling and able to downscale
• Supports PiP, PoP, and customized window layout configuration
• Control by web UI, Telnet, RS-232, RS-485 and RS-422
• Full HDCP1.4/2.2 support for input signals and output connections
• HDMI digital audio and HDMI audio de-embedding to analog stereo audio for output
• Firmware upgradeable via USB port
• Built-in power supply






MODEL NO.

M43-H04H02

INPUT INTERFACE

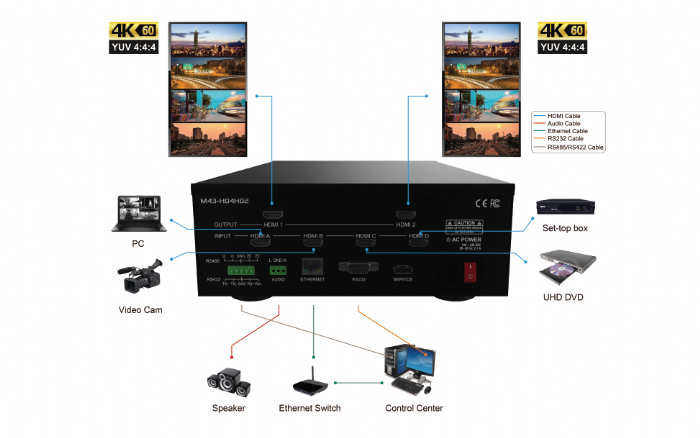

4 x HDMI 2.0 type A

INPUT RESOLUTION

640 x 480p@60, 1280 x 720p@60, 1920 x 1080p@60

3840 x 2160p@30, 3840 x 2160p@60

OUTPUT INTERFACE

2 x HDMI 2.0 type A

terminal block 3 pole, stereo

OUTPUT RESOLUTION

Portrait mode:

720 x 1280p@30, 720 x 1280p@60, 1200 x 1600p@60, 1080 x 1920p@30,

1080 x 1920p@50, 1080 x 1920p@60, 1200 x 1920p@60, 2048 x 2048p@57, 2160 x 3840p@30, 2160 x 3840p@50, 2160 x 3840p@60, 2160 x 4096p@50, 2160 x 4096p@60 Landscape mode:

1280 x 720p@30, 1280 x 720p@60, 1600 x 1200p@60, 1920 x 1080p@30,

1920 x 1080p@50, 1920 x 1080p@60, 1920 x 1200p@60, 2048 x 2048p@57, 3840 x 2160p@30, 3840 x 2160p@50, 3840 x 2160p@60, 4096 x 2160p@50, 4096 x 2160p@60

OUTPUT COLOR FORMAT

4:4:4, 24 bpp

HDMI COMPLIANCE

HDMI 1.4 and HDMI 2.0

BANDWIDTH

18 Gbps

HDCP COMPLIANCE

HDCP 1.4 and HDCP 2.2

CONTROL METHODS

RS232

1 x D9 female connector

RS485 / RS422

5-pole terminal block

Ethernet

1 x RJ45

FIRMWARE UPGRADE

USB 2.0

POWER

Power Supply

Built-in power module 100-240ACV (50/60 HZ)

Power Consumption

32 W

Redundant Power Supply

no

ENVIRONMENT

Operating Temperature

0 ~ 40

Operating Humidity

0% ~ 80% RH

Storage Temperature

-20~ 60

DIMENSION

240 x 371 x 88 mm (L x W x H)

WEIGHT

3.8 KG

AVAILABLE IN

black

FILE NAME FILE FORMAT SIZE DATE
Quadview_Duo_Datasheet_V0.7_2020-07-06.pdf pdf 947 KB 2020-08-10 Download
Quadview_Duo_User_Manual_2020.08.07 v 1.0.pdf pdf 1.6 MB 2020-08-10 Download
