4K HDMI EXTENDER

P4K-HRSL4E1 / P4K-LHRS1E4

P4K-HRSL4E1-P / P4K-LHRS1E4-P (PoE)

Technologies

  • 4k30 UHD
  • Stereo 192kbps
  • RJ45
  • Firmware ファーウェア更新(USB)
  • Videowall ビデオウォール
  • IPv4
  • TCP
  • UDP
  • RTSP
  • RTP
  • DHCP
  • IGMP
  • ただ今出荷
Try me

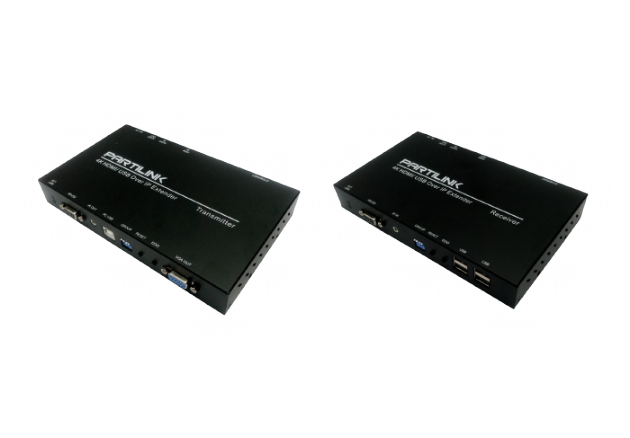

OVERVIEW
The Partilink 4K UHD HDMI / USB over IP Extender is composed of transmitter and receiver to extend HDMI, USB, RS232, and IR over IP via CATx cable and Gigabite Ethernet switch. It can be applied for point to point uni-cat, point to multi-point or multi-point to multi-point multi-cast and video wall. Easy installation with networking Giga Ethernet switch and CAT-5e cable for building up the extension or broadcast system.

FEATURES
-
RS-232 bi-directional extension
-4K UHD HDMI over IP extension
-USB 2.0 over IP extension
-RS-232 bi-directional extension

-4 bits DIP switch for 16 stream channel selection
-
HDCP 1.4 compliant and Blu-Ray ready
-Two
way IR extension
-Output video rotation
-Output video partial enlargement
-Automatic EDID configuration
-Networking environment under Giga Ethernet switch and CAT-5e cable
-Point to point extension, unicast, multicast and video wall system
-Point to point extension via CAT-5e cable without Ethernet switch up to 100M
-Ethernet webpage management
-RS-232 serial control command management
-P4K-HRSL4E1-P / P4K-LHRS1E4-P supports power over Ethernet

APPLICATION
-

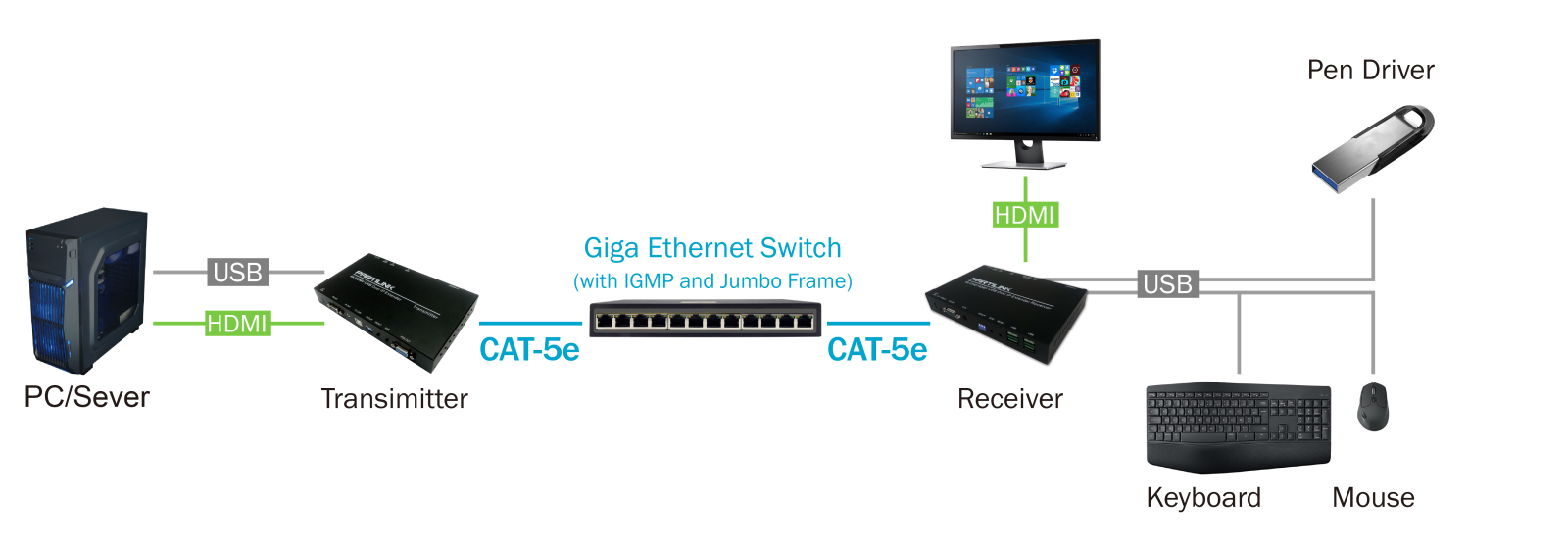

Unicast, point to point extension

-

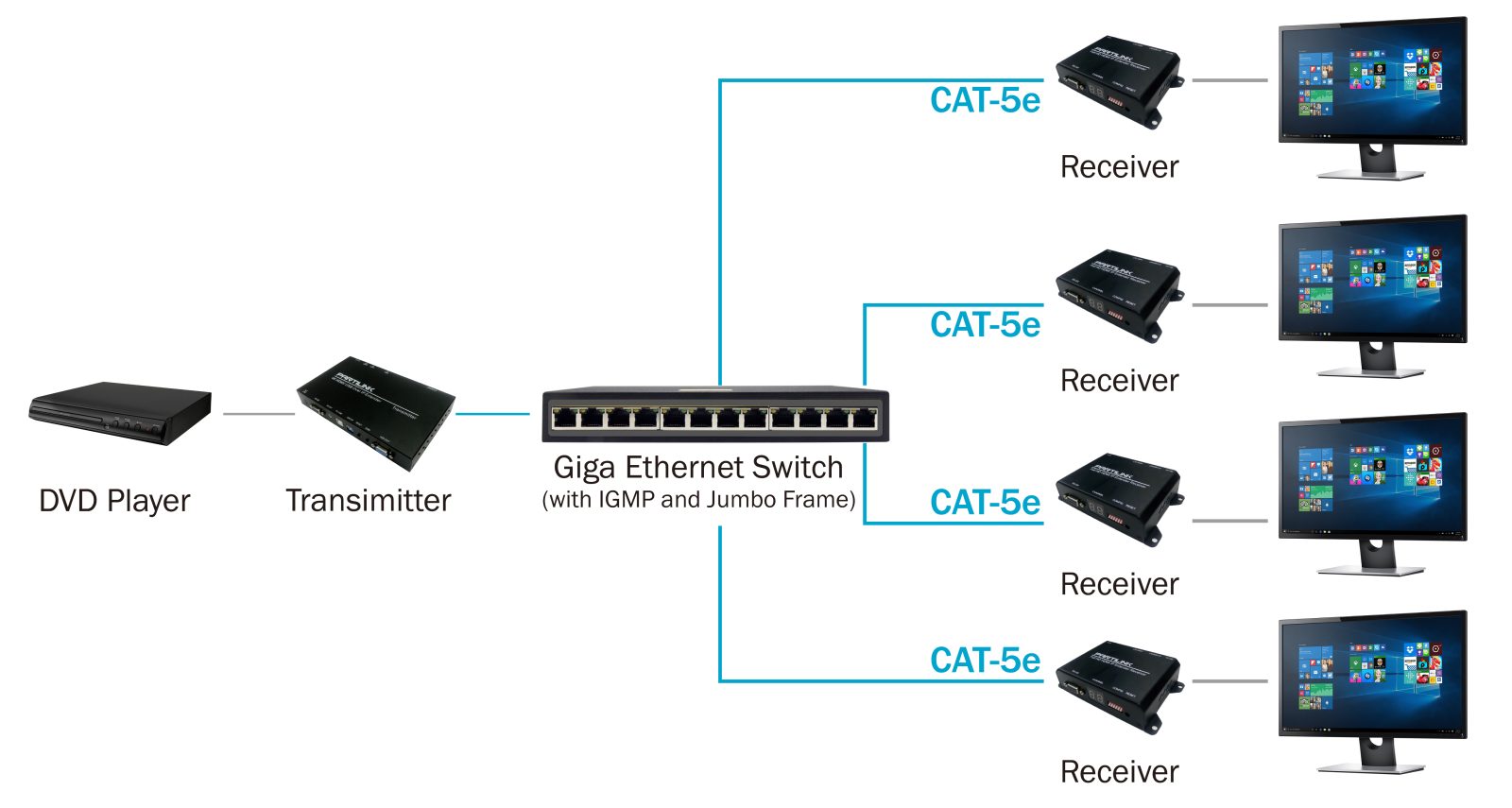

Multicast, point to multi points or multi points to multi points extension

-
Unicast
-Multicast
-Video Distribution

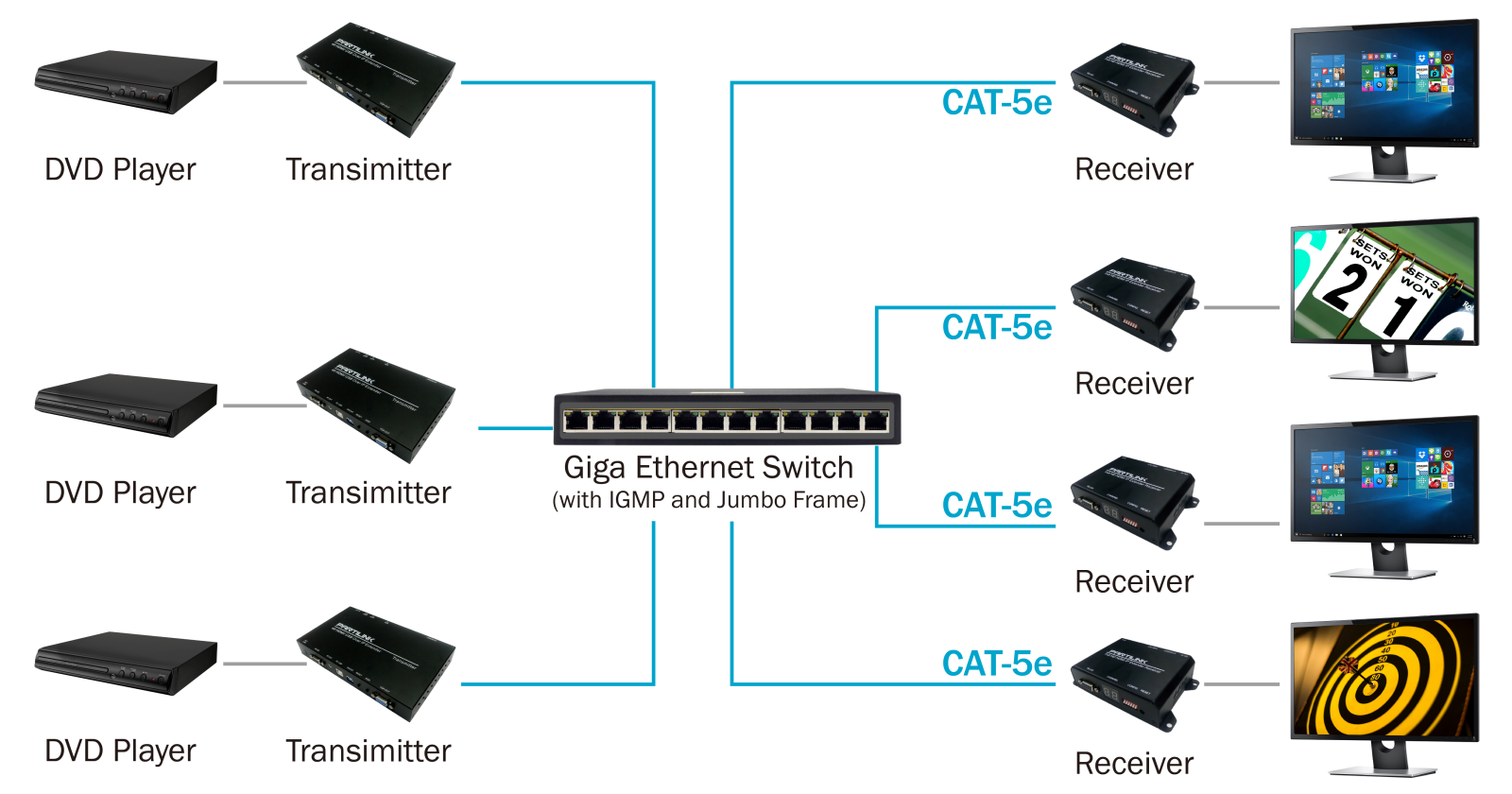

-Matrix Distribution

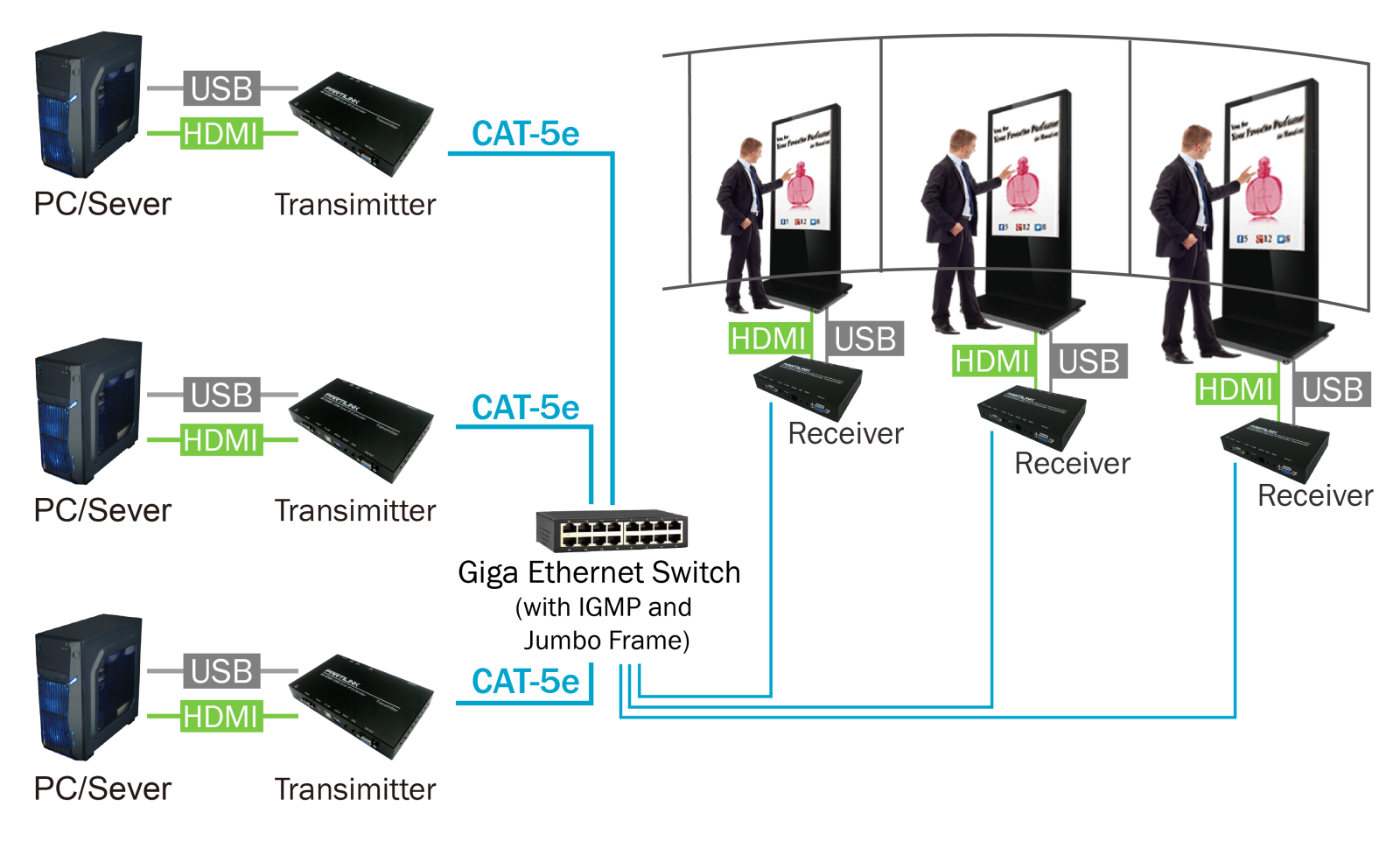

-Billboard & Kiosk, PC to HDMI and USB interactive Monitor

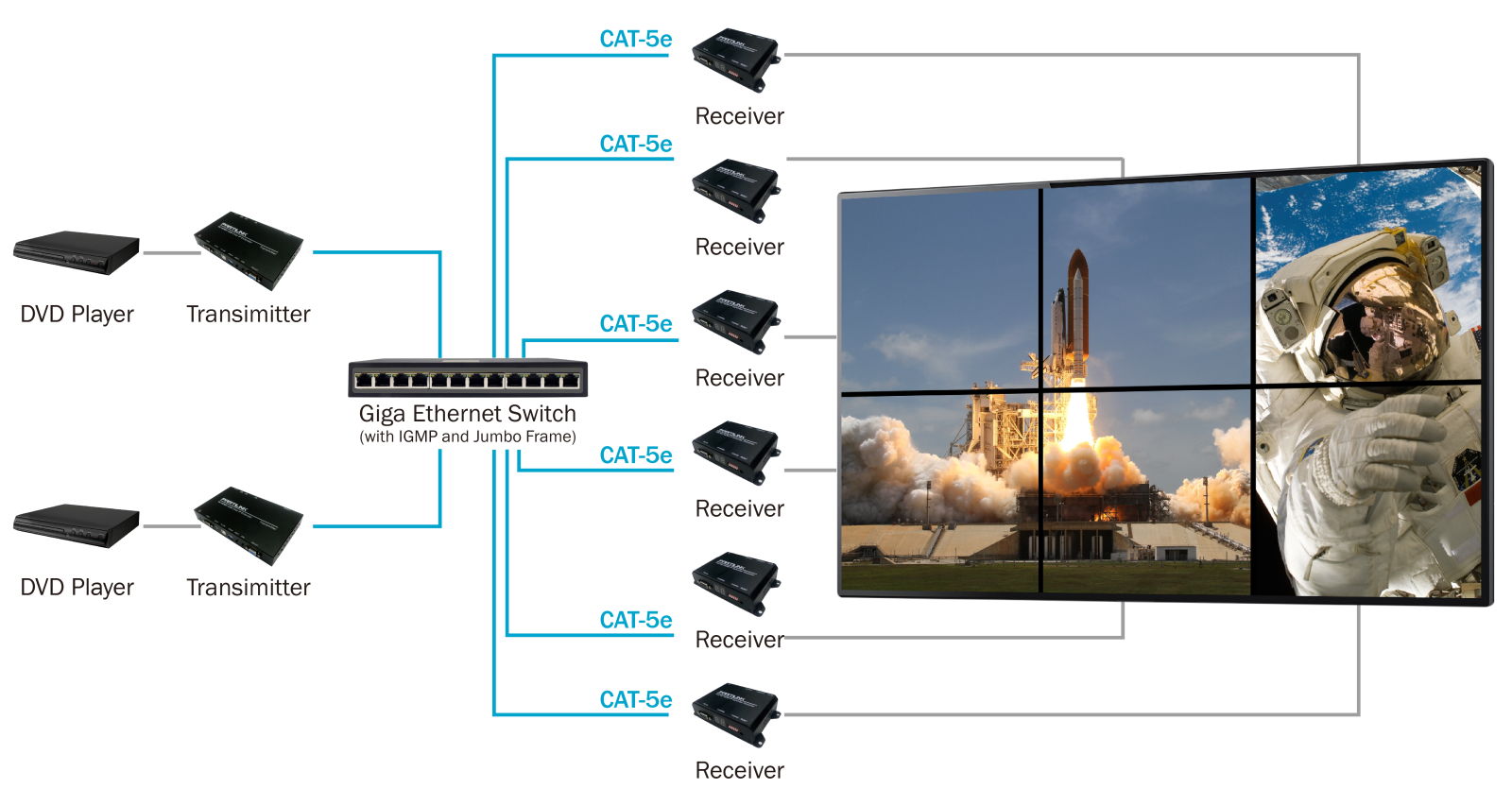

-Video Wall







SPECIFICATION

MODEL NO.

P4K-HRSUL4E1 P4K-HRSUL4E1-P

Transmitter

P4K- LHRSU1E4 P4K-LHRSU1E4-P

Receiver

INPUT

HDMI Type-A female connector

None

OUTPUT

 VGA DB-15 female local output

HDMI Type-A female connector

IR

2x 3.5mm phone jack for IR emitter and receiver to control video source device

COMPRESSION

Visual lossless compression

HDMI

INPUT RESOLUTION

3840x2160 30/24, 1080p 60/50, 1080p 30/25, 1080i 60/50

720p 60/50, 480i 60/50, 480p 60/50

HDMI

OUTPUT RESOLUTION

3840x2160 30/24, 1080p 30/25, 1080i 60/50,720p 60/50

480i 60/50, 480p 60/50

VGA

OUTPUT RESOLUTION

1080p 30/25, 1080i 60/50, 720p 60/50

480i 60/50, 480p 60/50

AUDIO FORMAT

Stereo 192Kbps

IP PROTOCOL

TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4

LAN PORT

RJ45 connector for Giga Ethernet

SERIAL

DB-9 female connector for RS-232

MANAGEMENT

  • LAN port                                       • Serial port
  • Embedded webpage management    • RS-232 debug, control command

POWER INPUT

  • 2.0mm power jack for DC5V/2A

OPERATING

TEMPERATURE

0~55°C

OPERATING HUMIDITY

5%~90% RH

POWER ADAPTER

Power adapter AC in 100~240V (50~60Hz)

ESD protection air gap discharge ±8KV, contact discharged ±4KV

DIMENSION

191.6 x 112.8 x 26.85 mm ( L x W x H )

WEIGHT

450 G

FILE NAME FILE FORMAT SIZE DATE
DATASHEET_4K UHD HDMI_USB EXTENDER OVER IP P4K-HRSL4E1 / P4K-LHRS1E4 P4K-HRSL4E1-P / P4K-LHRS1E4-P (PoE) PARTILINK 4June2019 pdf 1.0 MB 2019-07-08 Download
USER_MANUAL_4K HDMI & USB ExtenderOver IP _PARTILINK_P4K-HUL4E1 170829 pdf 50 KB 2019-07-08 Download
