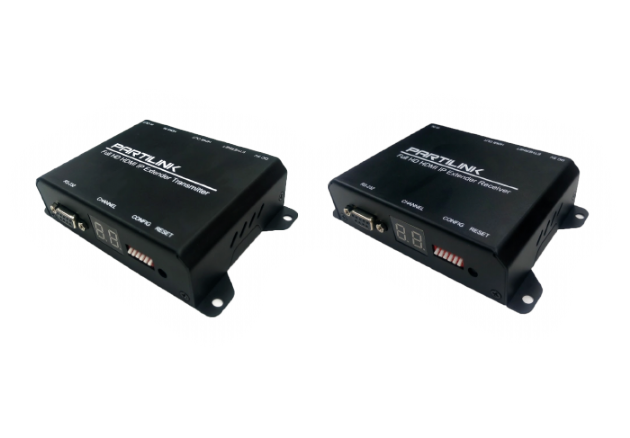

P2K-HRSL3E1-P / P2K-LHRS1E3-P (PoE)
OVERVIEW
The Partilink 1080P HDMI Extender series is composed of transmitter and receiver to extend HDMI, RS-232 and IR over IP via CATx cable and Gigabite Ethernet switch. Suitable for point to point uni-cat, point to
multi-point or multi-point to multi-point multi-cast.
APPLICATION
-Unicast, point to point extension
-Multicast, point to multi points or multi points to multi points extension
-Screen wall installation

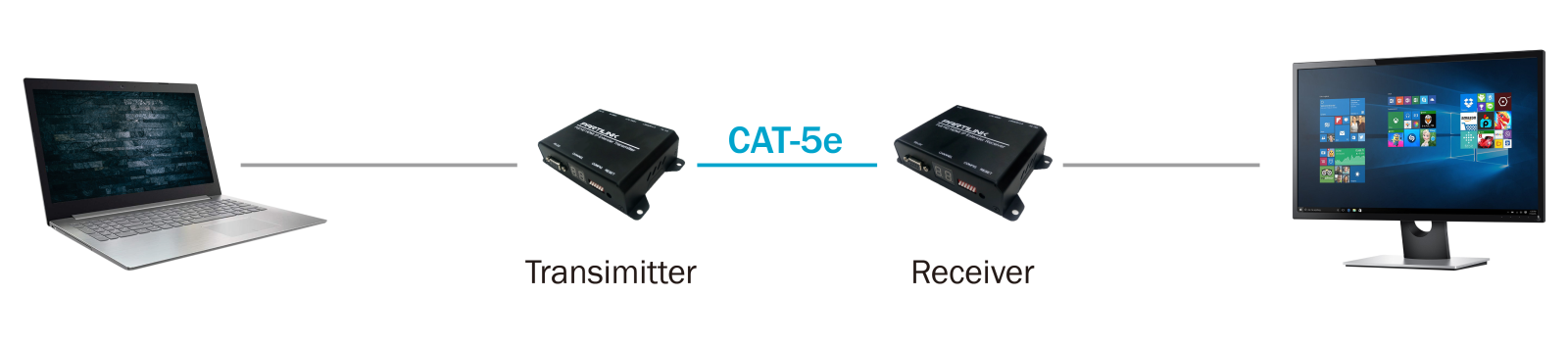

-Unicast

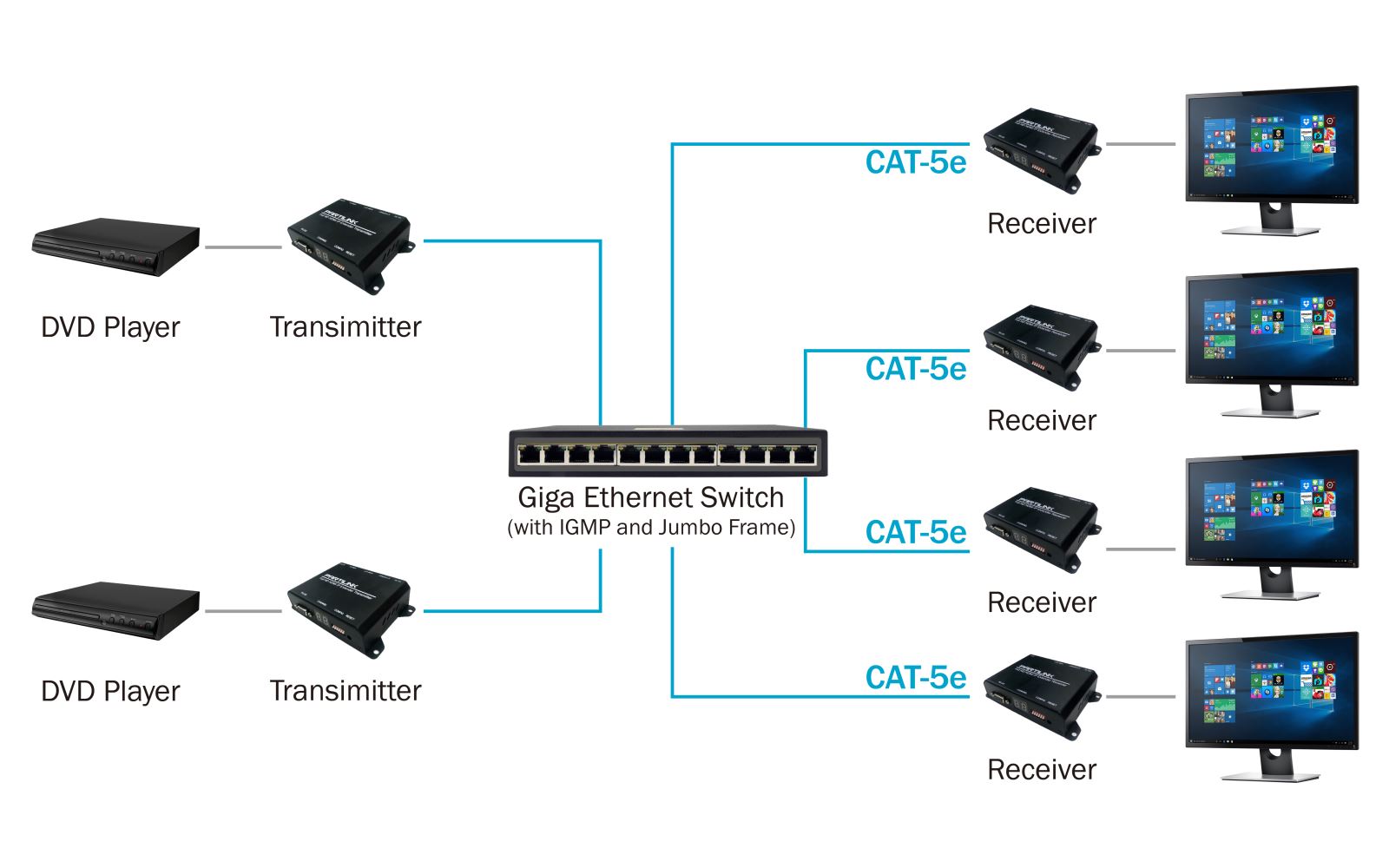

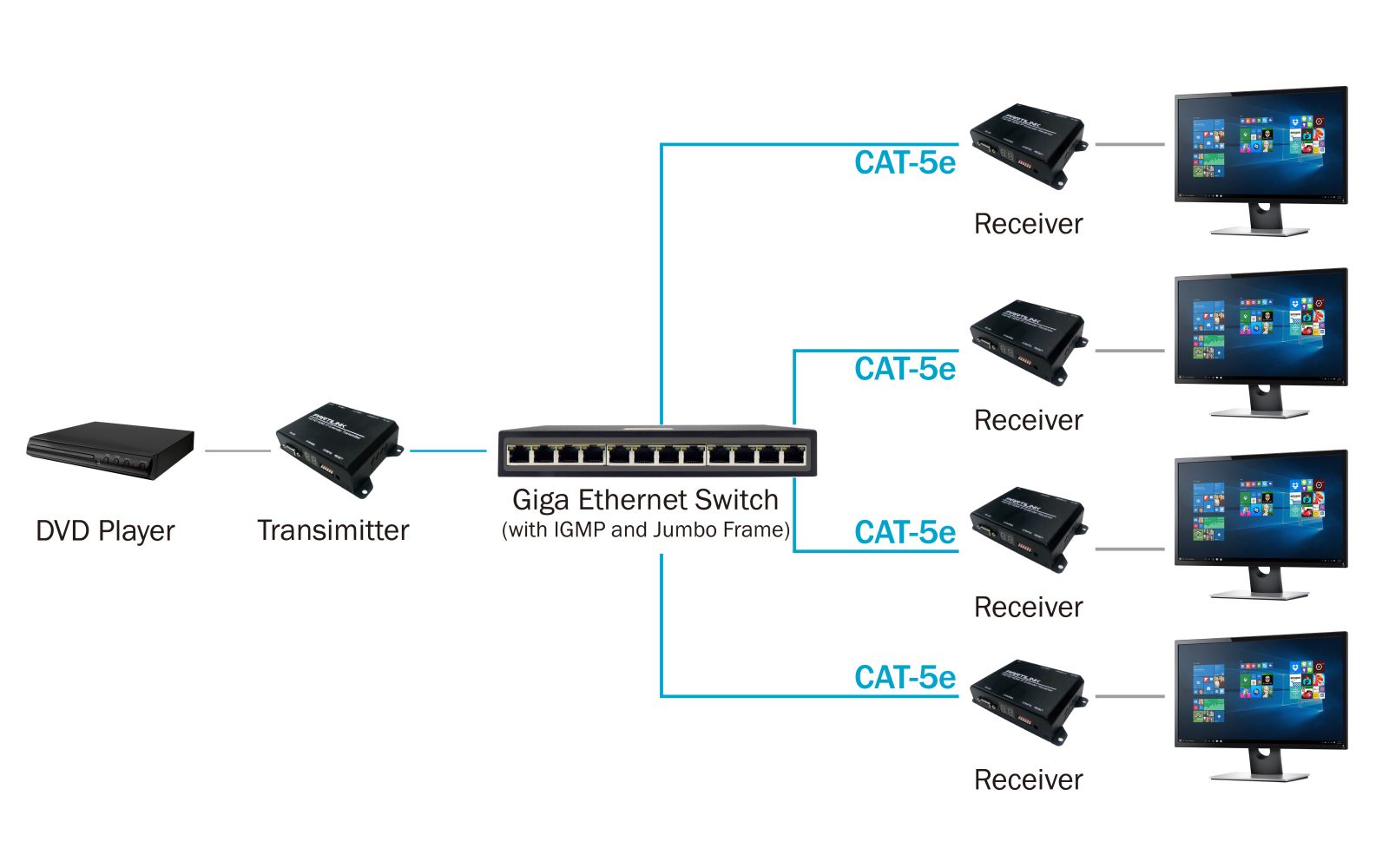

-Multicast

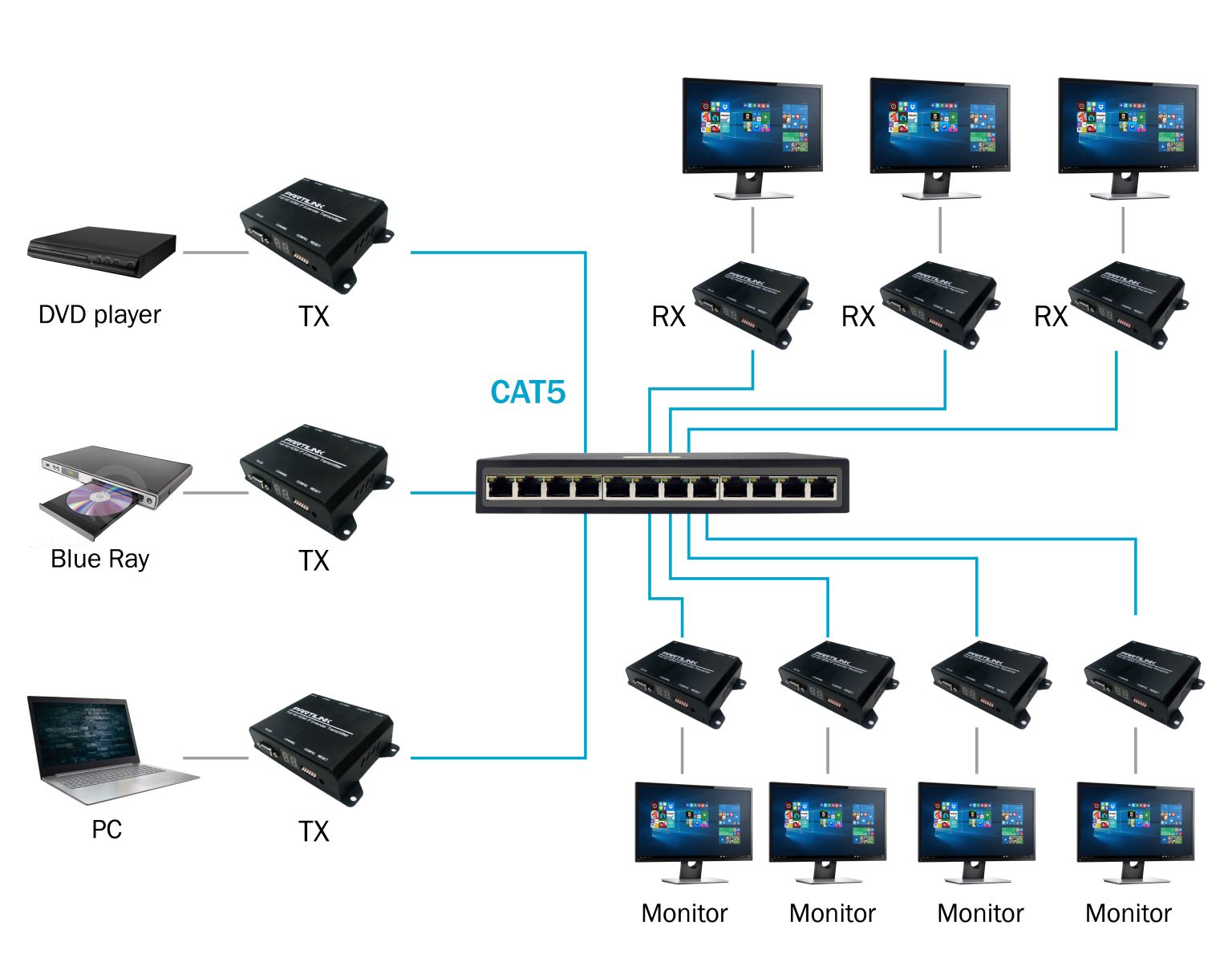

-Video Distribution

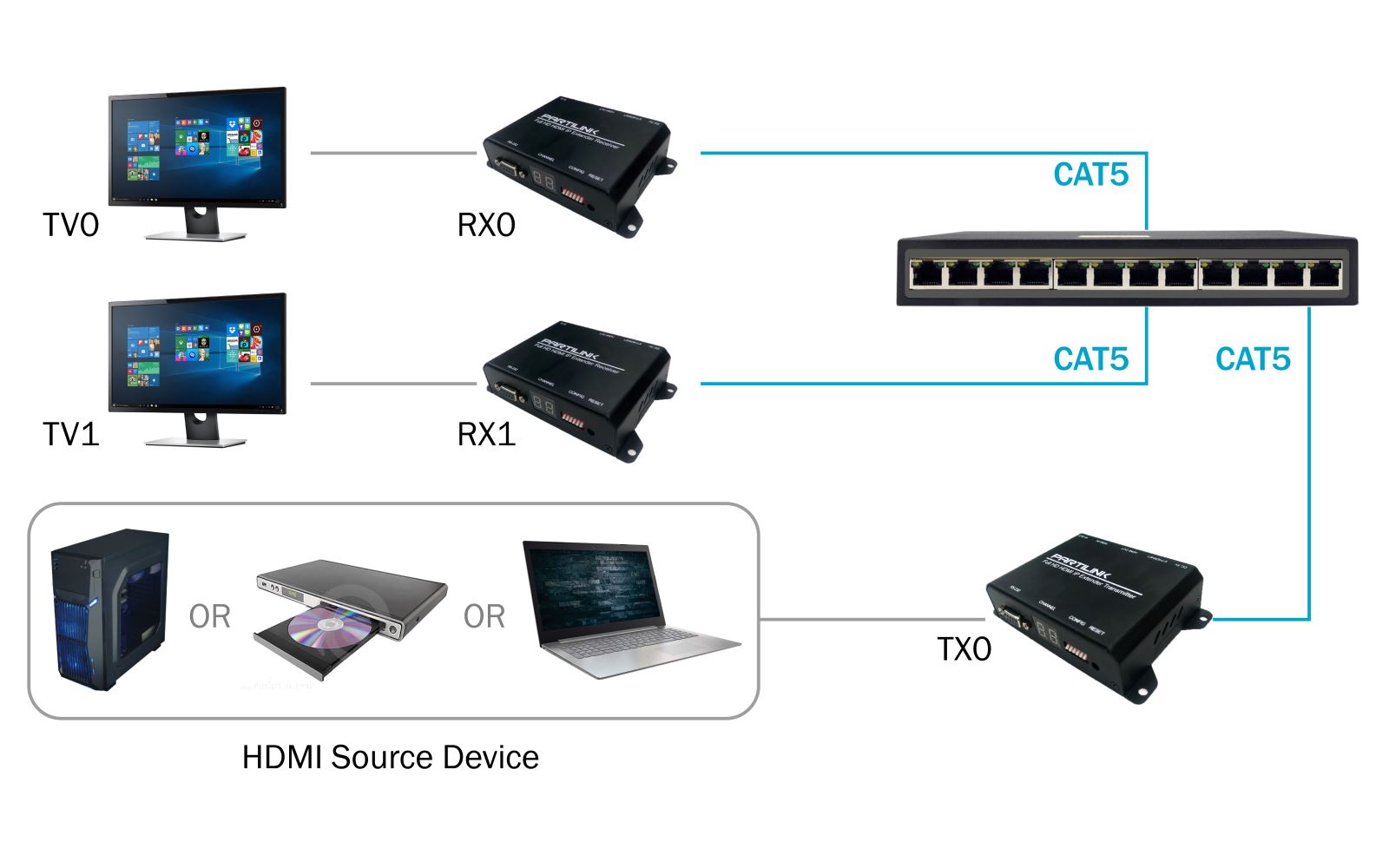

-Matrix Distribution
MODEL NO. |
P2K-HRSL3E1 P2K-HRSL3E1-P Transmitter |
P2K-LHRS1E3 P2K-LHRS1E3-P Receiver |
INPUT |
HDMI Type-A female connector |
None |
OUTPUT |
HHDMI Type-A female connector for loop through |
HDMI Type-A female connector |
IR |
3.5mm phone jack for IR emitter to control video source device |
3.5mm phone jack for IR receiver cable to receive remote signal |
COMPRESSION |
|
|
HDMI INPUT RESOLUTION |
1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50, 480i 60/50, 480p 60/50 |
|
HDMI OUTPUT RESOLUTION |
1080p 60/50, 1080i 60/50, 720p 60/50, 480i 60/50, 480i 60/50, 480p 60/50 |
|
AUDIO FORMAT |
Stereo 192Kbps |
|
IP PROTOCOL |
TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4 |
|
LAN PORT |
RJ-45 connector for 10/100 BASE-T CAT-5 extension |
|
SERIAL |
DB-9 female connector for RS-232 |
|
POWER INPUT |
|
|
OPERATING TEMPERATURE |
0~55°C |
|
OPERATING HUMIDITY |
5%~90% RH |
|
POWER ADAPTER |
AC in 100~240V (50~60Hz), DC5V/2A out |
|
|
ESD protection air gap discharge ±8KV, contact discharged ±4KV |
|
DIMENSION |
130 x 82 x 30.25 mm ( L x W x H ) |
|
WEIGHT |
290 G per transmitter or receiver unit |
FILE NAME | FILE FORMAT | SIZE | DATE | |
---|---|---|---|---|
DATASHEET_1080P HDMI EXTENDER P2K-HRSL3E1 / P2K-LHRS1E3 P2K-HRSL3E1-P / P2K-LHRS1E3-P (PoE) PARTILINK 4June2019 | 781 KB | 2019-06-04 | Download | |
USER_MANUAL_1080HDMI Over IP Extender_PARTILINK_P2K-HRSL3E1 _180510 | 1.8 MB | 2019-06-06 | Download | |
PC TOOL IPTV_Control_Center(1) | zip | 1.8 MB | 2019-06-17 | Download |
