MULTIVIEW DUO KVM PROCESSOR

Ref: M33-H04H02

A KVM switch & mulview processor for simultaneous display and control of four PC/ servers via dual displays. 4 PCs multiviewed on primary displays, and extend one of the target PCs on the secondary to operate via mouse roaming.

Technologies

  • 4k60 UHD
  • 18 gbps (bandwidth)
  • HDMI 2.0

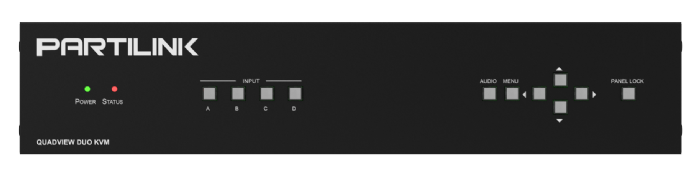

  • Front panel buttons
  • telnet Control Via RS232
  • TelNet Control
  • Firmware upgrade (USB)
  • web user interface over IP
  • Scaler
  • Customized layout
  • Multiview
  • picture on picture
  • Mouse Centralized Control
Try me

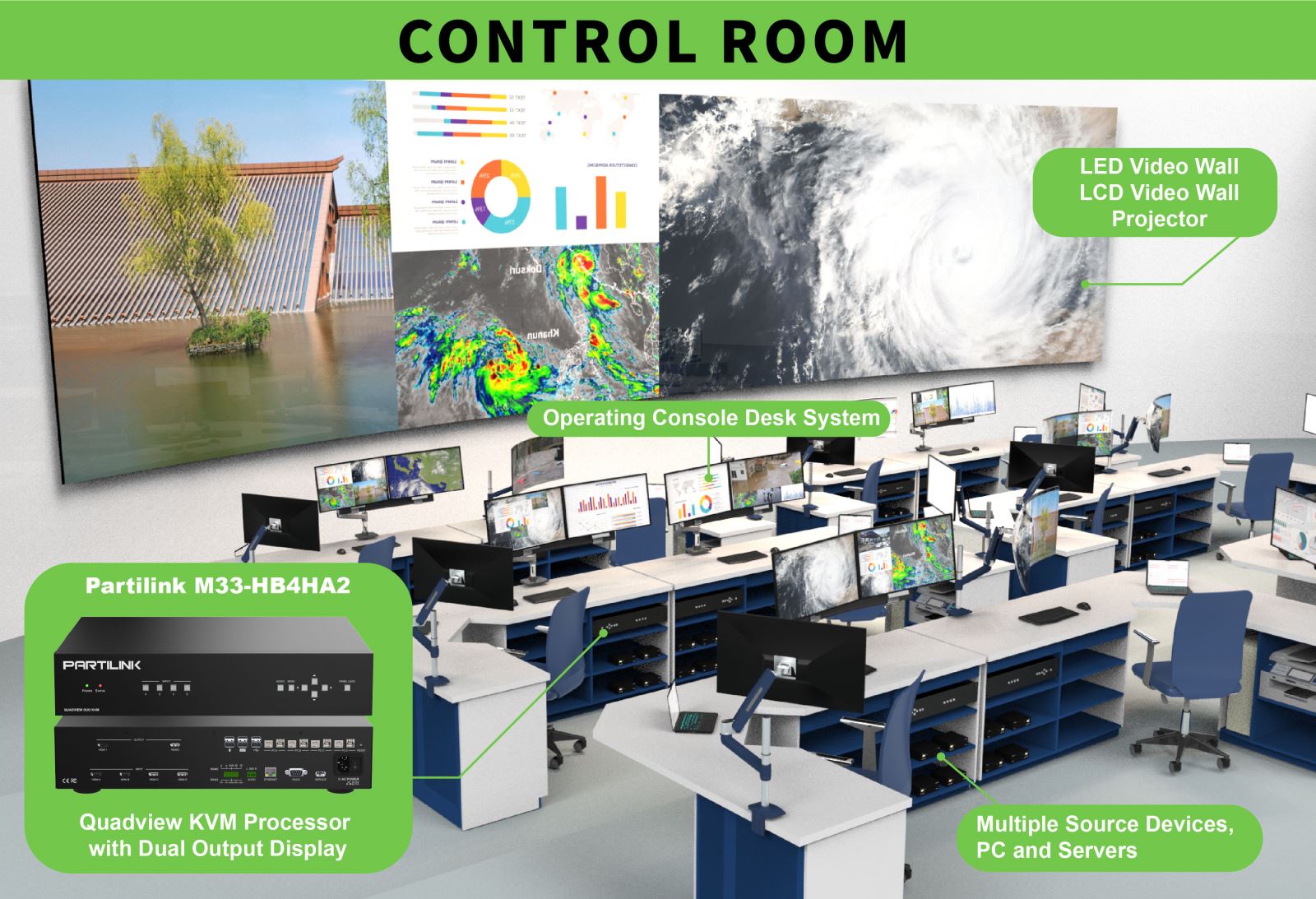

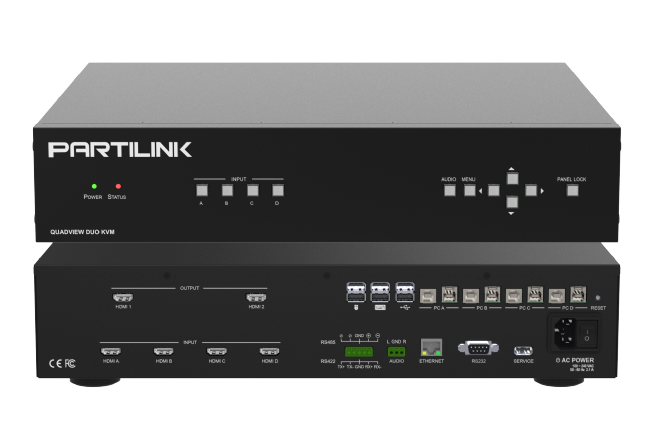

Partilink M33-H04H02 is a HDMI 2.0 and USB 2.0 KVM Switch & Multiviewer with 4-port HDMI/ USB PC inputs and dual HDMI outputs to do multiview and extension display, switch and control simultaneously. It’s designed to enhance the productiveness and effectiveness from single working station for straight forward operation in monitoring, switch and control.

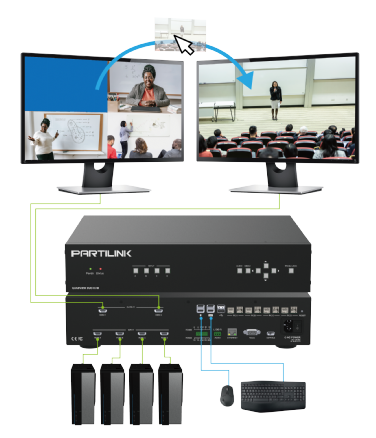

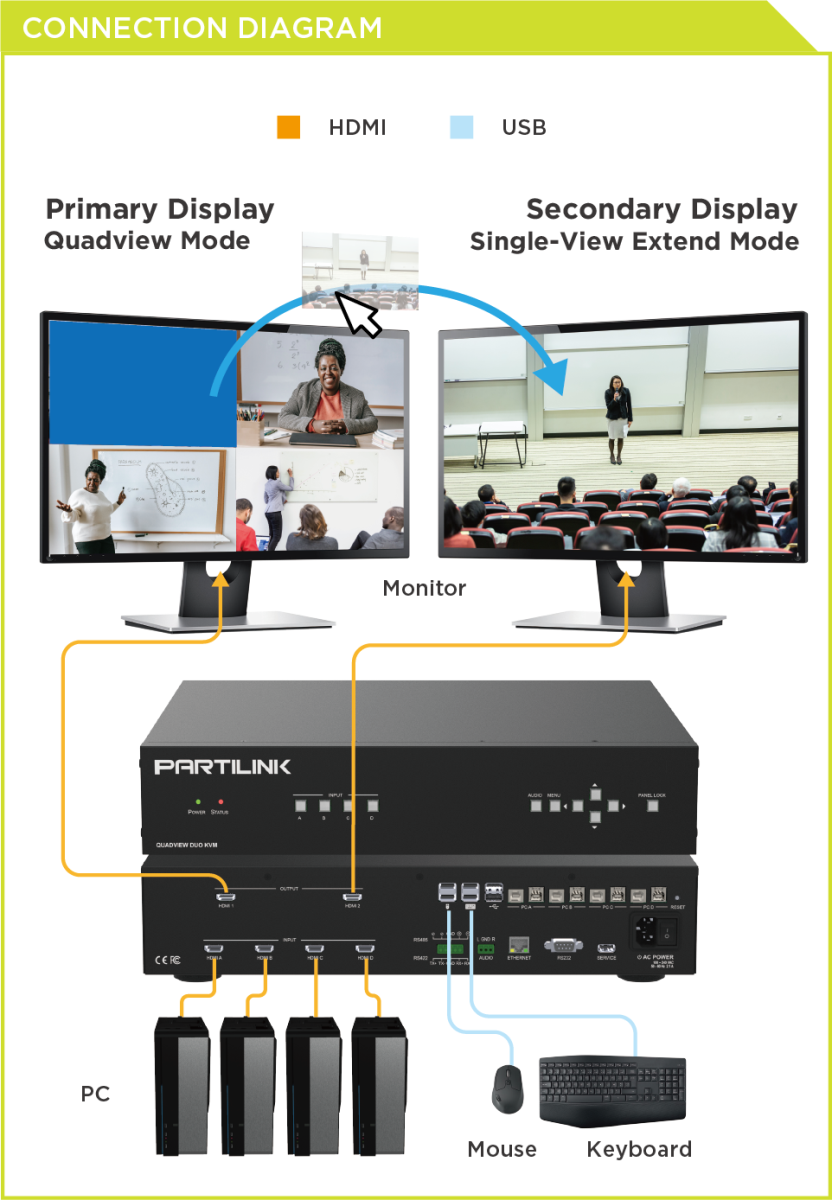

With the built-in KM feature to command/ control and real time access to 4K60 multiview 4 PC/ servers, users can instantly take control of the target computer by simply moving the mouse among the 4 windows from primary multiview display and extend the target computer to the secondary display for further operation.


  • Supports 4-port HDMI 2.0 and USB 2.0 PC inputs and 2-port HDMI 2.0 outputs

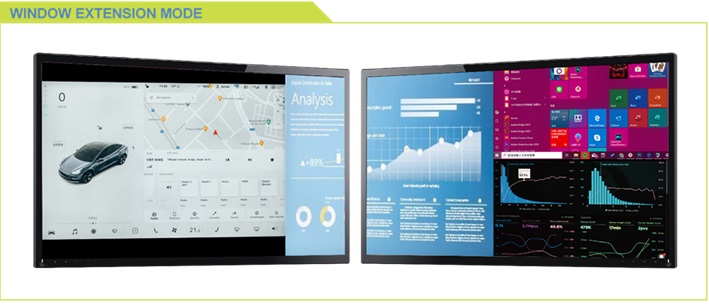

  • Supports dual displays including primary multiview mode display and secondary single PC/server/ window extension mode display
  • Supports input resolutions and output resolutions up to 4K@60Hz 4:4:4 color sampling for each port
  • Scaling up to 4K60Hz, 4:4:4 color sampling, deep color and able to downscale
  • Supports HDCP 1.4/ 2.2 for input signals and output connection
  • Supports cascading up to 5 units to create a max. of 16 host devices controlled by 1 set of keyboard and mouse console

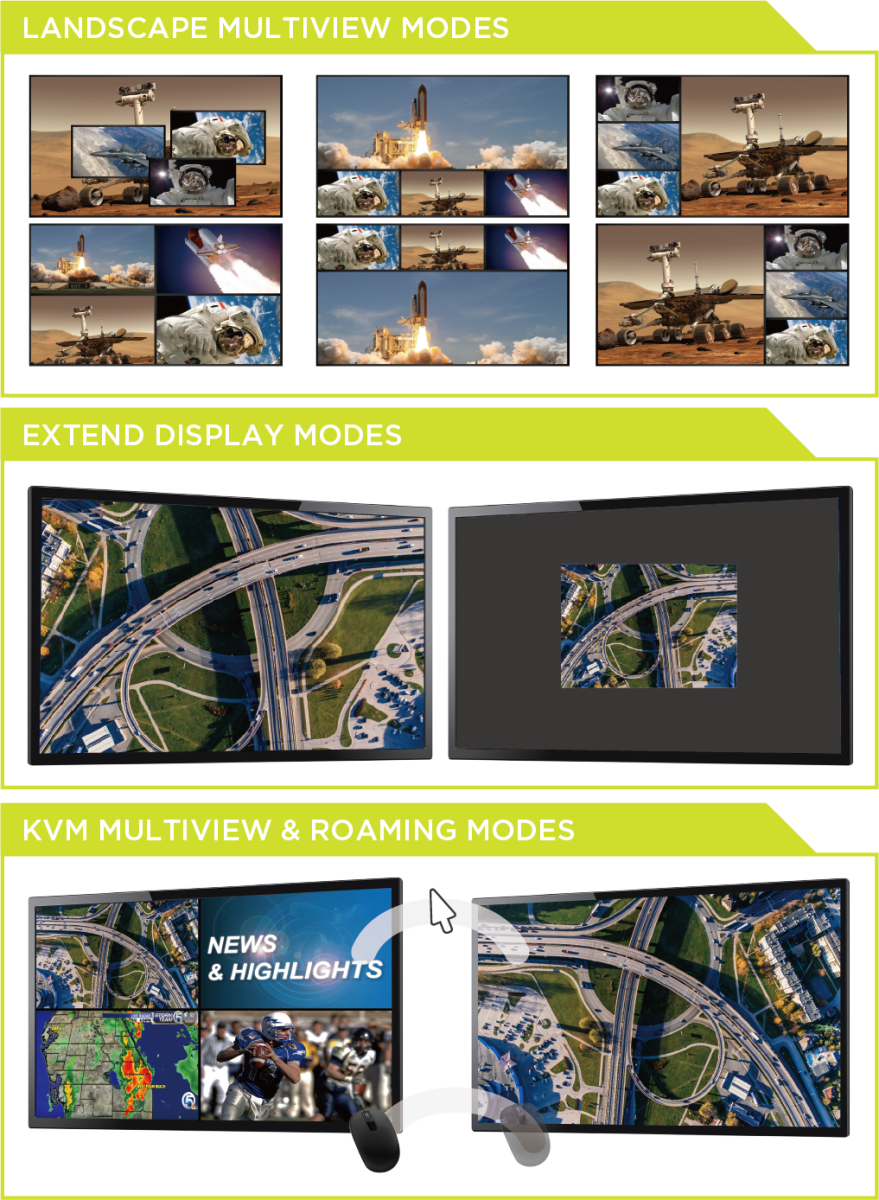

  • Supports multi-view pre-defined and user-defined layout on primary display
  • HDMI digital audio and HDMI audio de-embedded to analog stereo audio for output
  • Controls by OSD, web UI, RS232/RS422/RS485, front panel button and touch screen
  • Firmware upgradable via USB port
  • Built-in power supply
  • Supports most of the O.S. including Windows, Linux, Mac, Chrome ..etc.

MODEL NO.

M43-H04H02

INPUT INTERFACE

COMPUTER/ SERVER PORT

4 x HDMI 2.0 type A

4 x USB 2.0 type B x 4

INPUT RESOLUTION

640 x 480p@60, 1280 x 720p@60, 1920 x 1080p@60

3840 x 2160p@30, 3840 x 2160p@60

OUTPUT INTERFACE

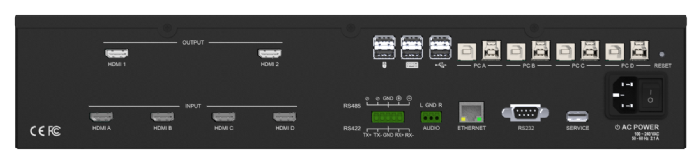

CONSOLE PORT

2 x HDMI 2.0 type A

4 x USB 2.0 type A for keyboard/ mouse and touch screen

Terminal block 3 pole, stereo

OUTPUT RESOLUTION

1280 x 720p@30, 1280 x 720p@60, 1600 x 1200p@60, 1920 x 1080p@30, 1920 x 1080p@50, 1920 x 1080p@60, 1920 x 1200p@60, 2048 x 2048p@57, 3840 x 2160p@30, 3840 x 2160p@50, 3840 x 2160p@60, 4096 x 2160p@50, 4096 x 2160p@60

OUTPUT COLOR FORMAT

4:4:4, 24 bpp

HDMI COMPLIANCE

HDMI 1.4 and HDMI 2.0

BANDWIDTH

18 Gbps

HDCP COMPLIANCE

HDCP 1.4 and HDCP 2.2

CONTROL METHODs

RS232

1 x D9 female connector

RS485 / RS422

5-pole terminal block

Ethernet

1 x RJ45

Web UI

Browser/ touch screen via smartphone or tablet

FIRMWARE UPGRADE

USB 2.0

POWER

Power Supply

Built-in power module 100-240ACV (50/60 HZ)

Power Consumption

32 W

Redundant Power Supply

no

ENVIRONMENT

Operating Temperature

0 ~ 40

Operating Humidity

0% ~ 80% RH

Storage Temperature

-20~ 60

DIMENSION

240 x 371 x 88 mm (L x W x H)

WEIGHT

3.9 KG

FILE NAME FILE FORMAT SIZE DATE
DATASHEET_M33-H04H02 MULTIVIEW DUO KVM_PARTILINK pdf 854 KB 2023-04-20 Download
