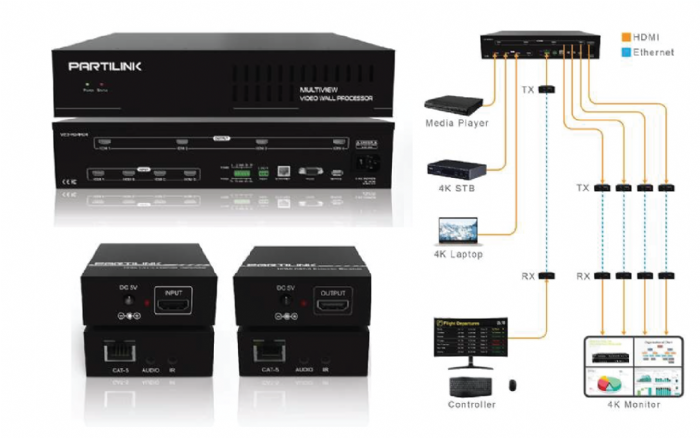

MW4 over CAT5 Extenders
Partilink MW4 (Multiview Wall) series
with CAT5 Externders maintaining 4k60
Up to 70 metters between processor to displays
Free size and position on up to 16 displays
Up to 4 windows of video sources displayed simultaneously
with CAT5 Externders maintaining 4k60
Up to 70 metters between processor to displays
Free size and position on up to 16 displays
Up to 4 windows of video sources displayed simultaneously
Technologies
DESCRIPTION
The Partilink MW4 series with CAT5 Externders maintaining 4k60
HDMI 2.0 (4K@60Hz 4:4:4) Multiview Video Wall Processor
Up to 16 HDMI outputs & 4 HDMI inputs
That's an all in one device features:
Video wall, multiview free size and free positions on the displays, matrix switch and scaling.
Simple to setup with its user friendly control
over Web page UI and series for customizations as will.
Ideal Solution for simple Digital Signage display
up to Mission critical application in control rooms.
Its compact & robust design brings 24/7 reliability in multi-tasking the features
while maintaining up to 8K resolution video wall
The Partilink MW4 series with CAT5 Externders maintaining 4k60
HDMI 2.0 (4K@60Hz 4:4:4) Multiview Video Wall Processor
Up to 16 HDMI outputs & 4 HDMI inputs
That's an all in one device features:
Video wall, multiview free size and free positions on the displays, matrix switch and scaling.
Simple to setup with its user friendly control
over Web page UI and series for customizations as will.
Ideal Solution for simple Digital Signage display
up to Mission critical application in control rooms.
Its compact & robust design brings 24/7 reliability in multi-tasking the features
while maintaining up to 8K resolution video wall
FEATURES
-Fast switching between input channels and combined multiple source images on video wall
-Display modes including video wall, multiview windowing and matrix
-Supports input resolution and output resolution up to 4K@60Hz 4:4:4 color sampling for each port
-Upscaling up to 4K@60Hz 4:4:4 color sampling and able to downscale
-Multiple windows displaying across multiple screen array without screen boundary.
-Able to build a 4K and even an 8K video wall system for supporting each output 4K@60Hz
-Able to build various video wall array system up to 1x16 - 2x8 - 3x15 - 4x4
-Supports PiP, PoP, quadview customized window layout configuration and rotation R90°/L90°when in single input video wall
-Control by web UI, Telnet, RS-232, RS-485 and RS-422 Full HDCP1.4/2.2 support for input signals and output connections
-HDMI digital audio and HDMI audio de-embedding to analog stereo audio for output
-Firmware upgradeable via USB port Built-in power supply
