HDMI2.0 to 4K@30Hz USB-C Capture Pro

The Professional 4K Capture Tool for Gamer & YouTuber

Ref: GRA-HU2HU3

A 4K HDMI capture with dual 4K@60Hz HDMI inputs and capture, then uplink 4K@30Hz video to the connected PC through USB-C for filling, editing, streaming via the PC.

Try me
Partilink GRA-HU2HU3, HDMI 2.0 to 4K@30Hz USB-C Capture Pro, is designed to capture 4K@60Hz HDMI video then uplink 4K@30Hz data to the connected computer via USB-C. It allows the user to capture video from HDMI sources such as PS4, XBOX, Switch, camera … etc. for filing, re-editing and streaming on connected PC, laptop and tablet.

With this tool, streaming media is made easy to capture every sound and movement beautifully. This is a professional level capture tool for gamer or YouTuber to realize the captured video professionally in front of the audiences.
FEATURES
  •  HDMI 2.0 input supports 4K@60Hz and HDR
  •  HDMI 2.0 loop-out port supports 4K@60Hz and HDR
  •  Video captures resolution up to 3840x2160@30Hz or 1920x1080@120Hz
  •  Supports deep color (36-bit color)
  •  Supports USB 3.1 Type-C Gen1
  •  Supports UVC 1.0
  •  Supports audio LINE-IN
  •  Supports AUDIO headset (TRRS only)
  •  Supports USB port power supply, no external power supply required
  •  Compatible with third-party applications, such as QuickTime, OBS, XSplit, vMix, Zoom, Skype, Gamecaster, Broadcaster...etc.
APPLICATION
  • Gaming: capturing to edit the file for storage on the connected PC, or live steaming to display in various media platform such as YouTube, FB, Instagram …etc.
  • Business: video conference, live streaming to promote and demonstrate product
  • Education: remote teaching and training

MODEL NO.

GRA-HU2HU3

INPUT INTERFACE

HDMI 2.0 Type-A x 1

OUTPUT INTERFACE

USB Type-C (SuperSpeed) UVC x 1,

HDMI 2.0 Type-A x 1

INPUT/ OUTPUT (LOOPOUT) RESOLUTION

3840x2160p 60/50/30/25/24Hz

2560x1440p 144/60Hz

1920x1080p 240/ 144/120/60/50/30/25/24Hz

1920x1080i 60/50Hz

1280x720p 60/50Hz

720x576p 50Hz

720x480p 60Hz

720(1440)x576i 50Hz

720(1440)x480i 60Hz

640x480p 60Hz

CAPTURE RESOLUTION

USB3.0 SuperSpeed

NV12

YUY2

3840x2160p                                  30 Hz

2560x1440p                                  60 Hz

1920x1080p  120/60/50/30/25 Hz

1280x720p                                    60 Hz

720x480p                                      60 Hz

720x576p                                      50 Hz

640x480p                                      60 Hz

2560x1440p                         50 Hz

1920x1080p  60/50/30/25 Hz

1280x720p                           60 Hz

720x480p                             60 Hz

720x576p                             50 Hz

640x480p                             60 Hz

USB2.0

Hi-Speed

1280x720p                                    30 Hz

720x576p                                      50 Hz

720x480p                                      60 Hz

640x480p                                      60 Hz

1280x720p                     30 Hz

720x576p                             50 Hz

720x480p                             60 Hz

640x480p                             60 Hz

COLOR SAMPLING

RGB, YUV (YCbCr444, YCbCr422, YCbCr420)

VIDEO FORMAT

NV12 , YUY2

UAC AUDIO OUTPUT

Stereo / 16-bit PCM encoded audio at 48KHz sampling rates

AUDIO INTERFACE

3.5mm Headset (TRRS only)

LINE-IN: 3.5 mm input

SYSTEM

REQUIREMENTS

CPU

i5 Dual Core 2.8GHz or higher

RAM

4GB or higher

OS

Windows 8 and above

MacOS 10.13 and above

ENVIRONMENT

Operating Temperature

0 ~ 45

Operating Humidity

20% ~ 90%

DIMENSION

106 x 106.4 x 21m (W x L x H including rubber pad)

WEIGHT

235 G

ACCESSORIES

USB-C to USB-A Cable x 1, USB-C to USB-C Cable x 1, Power Adapter x 1

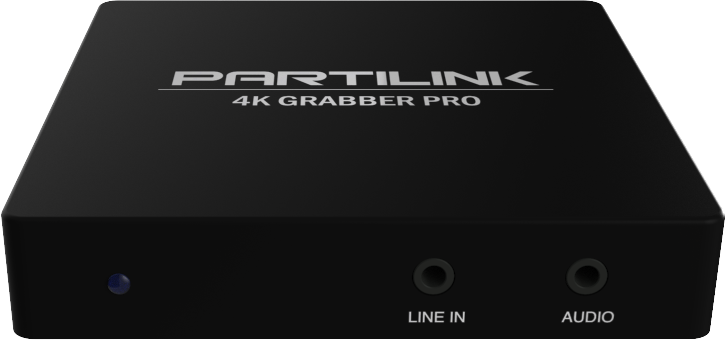

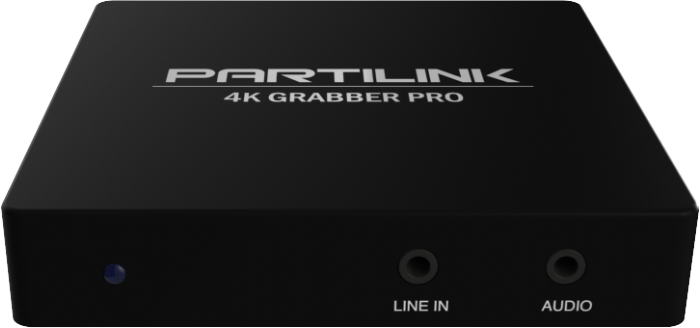

Front Panel

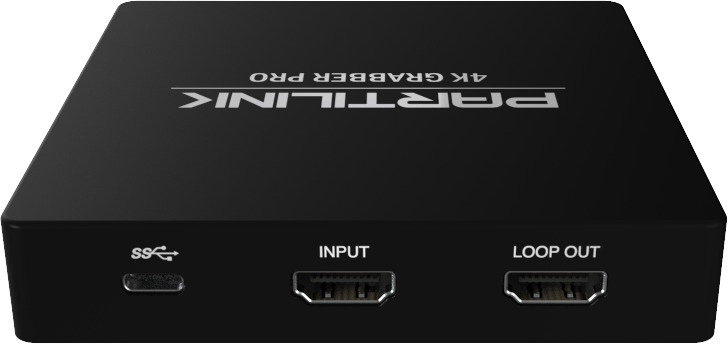

Rear Panel
