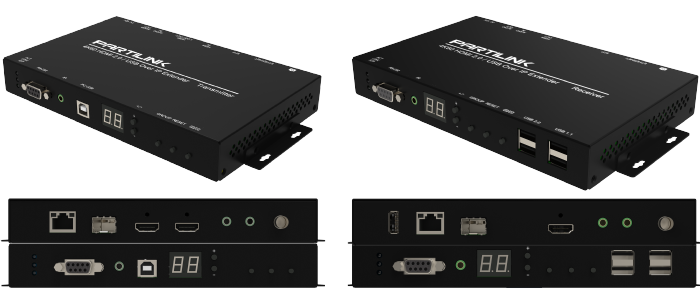

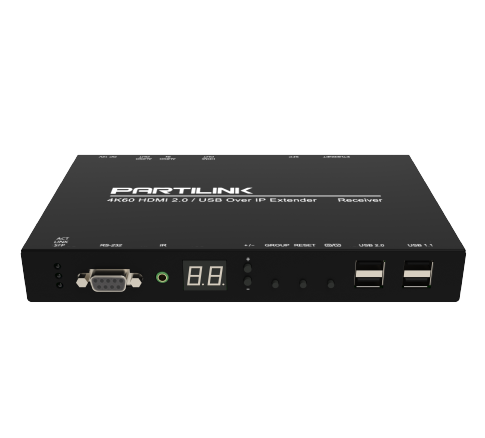

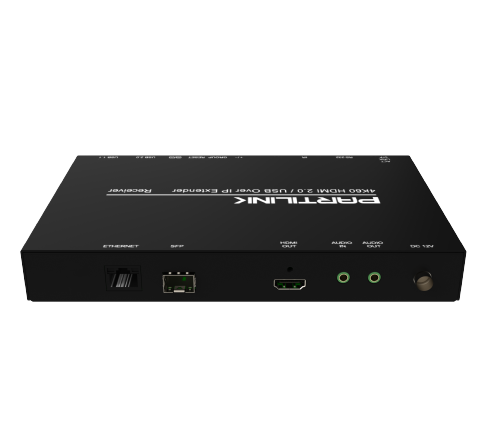

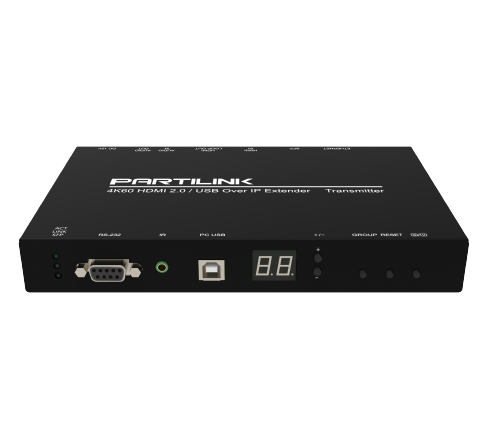

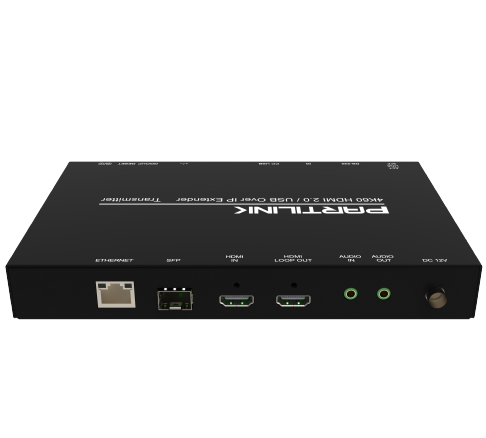

E23-T / E23-R

Model Ref: E23T / E23R (Basic Model)
E23T-P / E23R-P (PoE Model)
E23T-F / E23R-F (SFP Model)
E23T-PF / E23R-PF (PoE + SFP Model)

Technologies

Try me

OVERVIEW

The Partilink 4K60 HDMI + USB2.0 AV & KVM Extender over IP is a series of products composed of a transmitter and a receiver to extend HDMI, USB, RS232, and IR signals over IP via a CATx cable and Gigabit Ethernet switch or a fiber optic cable. It can be applied for point to point unicast, point to multi-point or multi-point to multi-point multi-cast and video wall. Installation is easy with a networking Giga Ethernet switch and CAT-5e/6 cable for building up the extension or broadcast system.

It’s an optimized choice to apply in Matrix, Video Wall and KVM Remote Control integration solutions.Its encoder/ decoder technology provides the benefit of system scope scalability and the smart modular design is flexible to achieve alternative features.

Beside extender, we also provide a controller to go with the application for matrix and video wall system control. The Partilink E23C and E23C-P are central controller for Partilink HDMI 2.0 over IP transmitters and receivers. It turns the system into an IP-based matrix switch and video wall controller. This control box can be composed of transmitters and receivers to extend HDMI, USB, and RS232 signals over IP via CATx cable and Gigabit Ethernet switch. A Web UI enables users to switch from any transmitter to any receiver. Easy installation with networking Giga Ethernet switch and CAT-5e/6 cable for building up the extension or broadcast system.

FEATURES

HDMI2.0/USB2.0/1.1 over IP extension
Supports HDMI resolution up to 4K/60Hz
Supports HDMI loop-through on TX
Supports HDR10/HDR10+/Dolby Vision
RS-232 bi-directional extension
HDCP 1.4/2.2/2.3 compliant and Blu-Ray ready
Two way IR extension
Digital LED indicators with up and down button for group selection
Automatic EDID configuration
KM Over IP roaming
Seamless KM Switching on TX and RX
Ultra low latency under 0.5 frame
Networking environment under Giga Ethernet switch and CAT-5e/6 cable
Point to point extension, unicast, multicast and video wall system
Point to point extension via CAT-5e/6E cable without Ethernet switch up to 100M+
Ethernet webpage management
RS-232 serial control command management

APPLICATION

Unicast, point to point extension
Multicast, point to multi points or multi points to multi points extension
Video wall installation
Video system control center

SPECIFICATION
MODEL	TRANSMITTER	RECEIVER
VIDEO INPUT	HDMI Type-A x 1
VIDEO OUTPUT		HDMI Type-A x 1
VIDEO LOOP-OUT	HDMI Type-A x1
AUDIO INPUT	1 x L/R Audio In 1 x 3-Pin Phoenix (Line-In)	1 x L/R Audio In 1 x 3.5mm mono phone jack (line-In)
AUDIO OUPUT	1 x 3.5mm stereo phone jack (line-Out)	1 x 3.5mm stereo phone jack (line-Out)
USB INTERFACE	1x USB Type B (USB2.0)	2 x USB Type A (USB2.0) 2 x USB Type A (USB1.1) Note: (1) KVM can be applied with any USB -----------------port (2) USB 2.0 for camera return works ----------------under unicast mode only
RS-232 SERIEAL	1 x 3-Pin Phoenix (TXD, GND, RXD)	1 x 3-Pin Phoenix (TXD, GND, RXD)
LINK INTERFACE	1 x RJ45 or SFP (PoE Supported)	1 x RJ45 or SFP (PoE Supported)
LED INDICATOR	Active Power (blue) x 1 RJ45 Link (green) x 1 SFP Link (green) x 1 Selected Channel LED x 1 (display current channel no. )	Active Power (blue) x 1 RJ45 Link (green) x 1 SFP Link (green) x 1 Selected Channel LED x 1 (display currently channel no.)
USER CONTROL	Push Button (from left to right): Video channel(CH+/CH-) Reset channel: Set/Reset Video/Image selection	Push Button (From left to Right): Video Channel(CH+/CH-) Reset Channel Set/Reset: Video/Image
IR INTERFACE	1x 2-Pin Phoenix for IR emitter to control source device (P – VCC Power, S – Signal)	1 x 3-Pin Phoenix for IR receiver to control source device (P – VCC Power, S – Signal)
HDMI INPUT RESOLUTION	3840x2160/60 /30/24, 1080p/ 60/50, 1080p /30/25, 1080i /60/50, 720p /60/50, 480i /60/50, 480p /60/50
HDMI OUTPUT RESOLUTION	3840x2160/60/ 30/24, 1080p 30/25, 1080i 60/50,720p 60/50 480i 60/50, 480p 60/50
HDMI LOOP OUT RESOLUTION	3840x2160/60/ 30/24, 1080p 30/25, 1080i 60/50,720p 60/50 480i 60/50, 480p 60/50		-
AUDIO FORMAT	LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD, DTS HD Master Audio, Dolby ATMOS
IP PROTOCOL	TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
POWER INPUT	2.0 mm power jack for DC12V/2A
OPERATING TEMPERATURE	0~55°C
STORAGE	-20~85°C
OPERATING HUMIDITY	Up to 95% RH
DIMENSION	205.5 x 127.6 x 28 mm ( L x W x H )
WEIGHT	0,728 KG	0.744 KG
