OVERVIEW

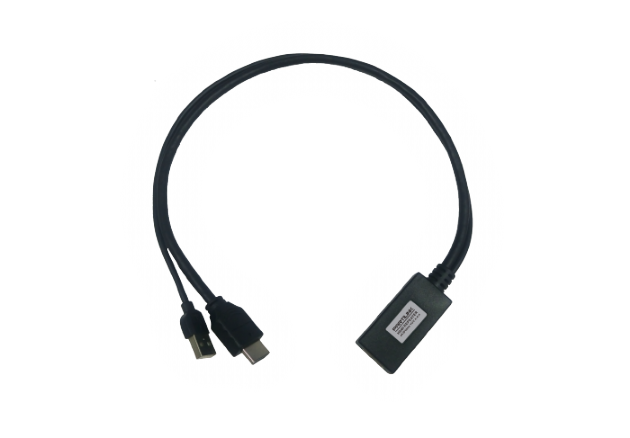

The Partilink HRD-11 repeater dongle is a booster to regenerate the HDMI 2.0 signal for extension distance up to 20M. It's built with a HDMI cable to connect with HDMI 2.0 display directly and a USB cable for power supply from the display. It's compliant with HDMI 1.4 and 2.0 and HDCP 2.2. compatible.
-Built-in 50cm HDMI and USB cable for HDMI signal transmission and repeater dongle USB power supply
-Apply to improve the video quality when source from PC, laptop, DVD player and connecting with HDMI display or projector
-UHD (Ultra-High Definition) 4K / 2K at 60 Hz
-Retiming capability allows for clean regenerated signals for transmission
-Maintains highest HDMI single link video resolution 4K2K@60Hz 4:4:4
-Remove noise generating by long HDMI cable for better video quality
-Extension length up to 20 meters on repeater source inpu

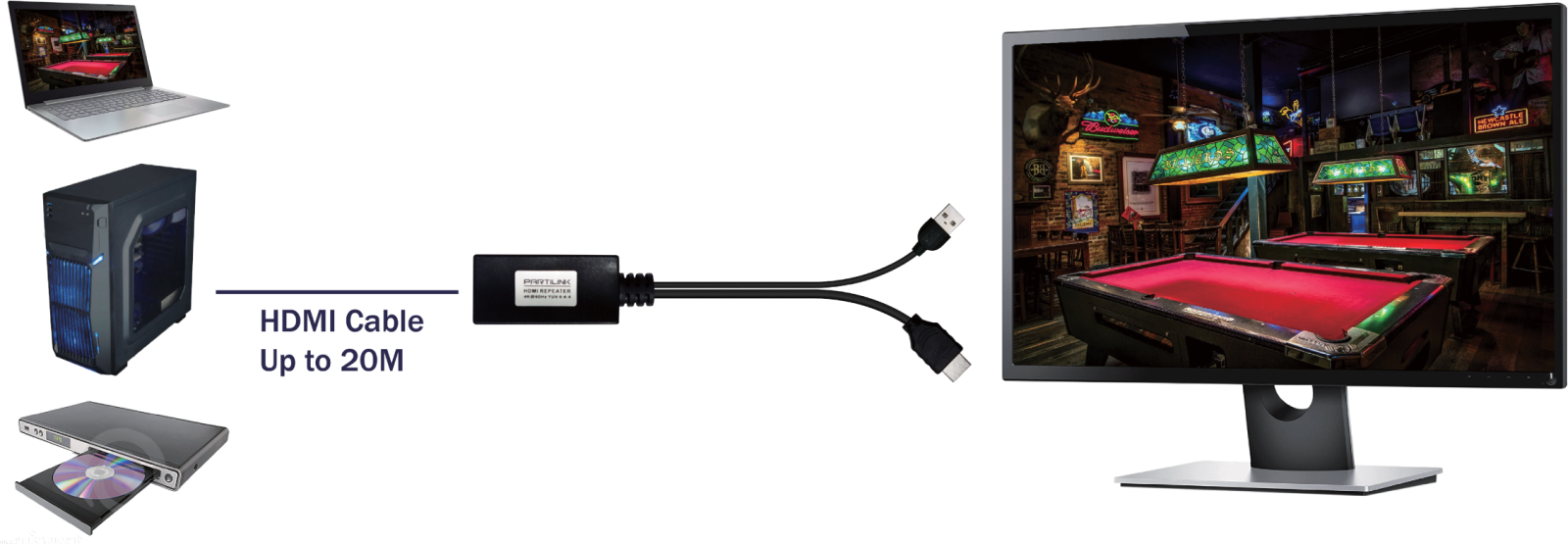

APPLICATION
|
MODEL NO. |
HRD-11 |
|
DESCRIPTION |
HDMI 2.0 Repeater Dongle (Booster) |
|
INPUT INTERFACE |
1 x HDMI Type A female Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4 |
|
OUTPUT INTERFACE |
Built-in 50cm HDMI cable with HDMI Type A male connector Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4 |
|
VIDEO BANDWIDTH |
18 Gbps |
|
HDCP VERSION |
1.4 and 2.2 compliant |
|
AUDIO |
Digital audio output over HDMI |
|
POWER |
Built-in 50cm USB cable with USB Type A male connector |
|
ENVIRONMENT |
Operating temperature 0~45℃ Operating humidity 20~90% Storage temperature -20~60℃ |
|
DIMENSION |
25 x 13.5 x 500 mm (including the pigtail 500mm, length ± 20) |
| FILE NAME | FILE FORMAT | SIZE | DATE | |
|---|---|---|---|---|
| DATASHEET _HRD-11_HDMI 2.0 REPEATER DONGLE PARTILINK4June2019 | 298 KB | 2019-06-04 |
