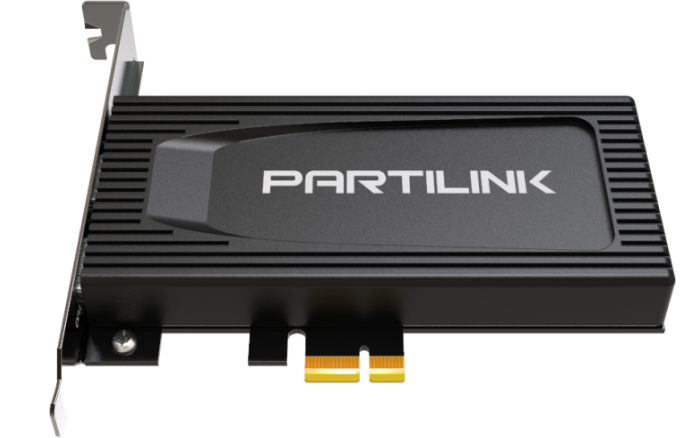

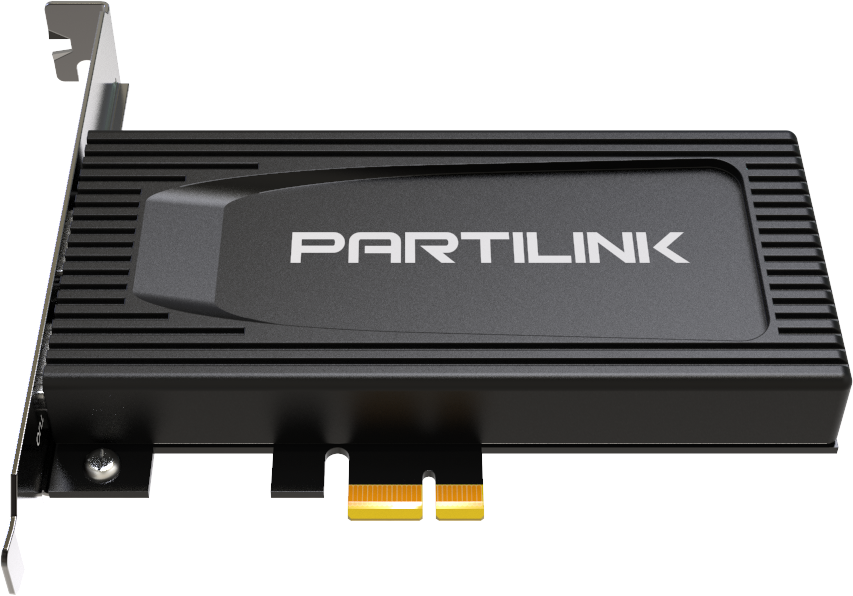

HDMI2.0 to 4K@30Hz PCIe Capture Card

The 4K HDMI Capture Mate for PC!

Ref: PCI-H01HP2

A PCIe capture card with 4K@60Hz HDMI input and capture, then uplink 4K@30Hz video to the slotted PC through the PCIe for filling, editing, streaming via the PC

Try me
Partilink PCI-H01HP2, HDMI 2.0 to 4K@30Hz PCIe Capture Card, is designed to capture 4K@60Hz video, then uplink 4K@30Hz data to the computer through the PCIe. It allows the user to capture 4K HDMI video from sources such as PS4, XBOX, Switch, camera …etc. for filing, re-editing and streaming via the PC.

It will not affect the performance of computer while maintaining a resolution up to 4K at 30Hz. with this 4K HDMI capture mate for PC, streaming media made easy to capture every sound and movement effectively and simultaneously.


FEATURES
  • Supports HDMI input resolution up to 3840x2160@60Hz and HDR
  • HDMI loop-out port supports resolution up to 3840x2160@60Hz and HDR
  • Video capture resolution up to 3840x2160@30Hz or 1920x1080p@120Hz
  • Supports deep color (36-bit color)
  • Supports PCIe X 1 (Gen4)
  • Compatible with third-party applications such as QuickTime, OBS, XSplit, vMix…etc.
APPLICATION
  • Gaming: capturing and editing the file for storage on PC, or live steaming to display in various media platform such as YouTube, FB, Instagram …etc.
  • Business: video conference, live streaming to promote and demonstrate product
  • Education: remote teaching and training

MODEL NO.

PCI-H01HP2

INPUT INTERFACE

HDMI 2.0 Type-A x 2

OUTPUT INTERFACE

PCIE x 1,

HDMI 2.0 Type-A x 1

INPUT/ OUTPUT (LOOPOUT) RESOLUTION

3840 x 2160p 60/50/30/25/24Hz

2560 x 1440p 144/60Hz

1920 x 1080p 240/144/120/60/50/30/25/24Hz

1920 x 1080i 60/50Hz

1280 x720p 60/50Hz

720 x 576p 50Hz

720 x480p 60Hz

720 (1440) x576i 50Hz

720 (1440) x480i 60Hz

640 x480p 60Hz

CAPTURE RESOLUTION

USB3.0 SuperSpeed

NV12

YUY2

3840x2160p                                 30 Hz

2560x1440p                                  60 Hz

1920x1080p            120/60/50/30/25 Hz

1280x720p                                    60 Hz

720x480p                                      60 Hz

720x576p                                      50 Hz

640x480p                                      60 Hz

2560x1440p                         50 Hz

1920x1080p         60/50/30/25 Hz

1280x720p                           60 Hz

720x480p                             60 Hz

720x576p                             50 Hz

640x480p                             60 Hz

USB2.0

Hi-Speed

1280x720p                                    30 Hz

720x576p                                      50 Hz

720x480p                                      60 Hz

640x480p                                      60 Hz

1280x720p                          30 Hz

720x576p                             50 Hz

720x480p                             60 Hz

640x480p                             60 Hz

COLOR SAMPLING

RGB, YUV (YCbCr444, YCbCr422, YCbCr420)

VIDEO FORMAT

NV12 , YUY2

UAC AUDIO OUTPUT

Stereo / 16-bit PCM encoded audio at 48KHz sampling rates

SYSTEM

REQUIREMENTS

CPU

i5 Dual Core 2.8GHz or higher

RAM

4GB or higher

OS

Windows 8 and above

MacOS 10.13 and above

ENVIRONMENT

Operating Temperature

0 ~ 45

Operating Humidity

20% ~ 90%

DIMENSION

120.9 x 133.7 x 21.6m (W x L x H)

WEIGHT

160 G

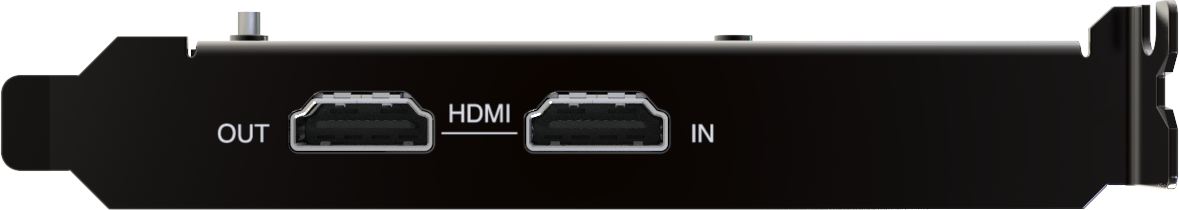

Interface Panel
