HDMI 2.0 MULTIVIEWER

QV41H
Ref: VP-QV41H
For simultaneous display of four HDMI 2.0/1.4 sources on one screen with output resolutions up to 4K UHD - 4K @60Hz 3840 × 2160 4:4:4

Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • 3d ready
  • 18 gbps (bandwidth)
  • HDMI 2.0
  • Stereo 192kbps
  • Front panel buttons
  • HDCP 2.2
  • User Friendly
  • No Virus Risk
  • TelNet Control
  • Scaler
  • Customized layout
  • Multiview
  • RemoteControl
  • Cascade 5 Pcs
  • Shipping Now
Try me

OVERVIEW

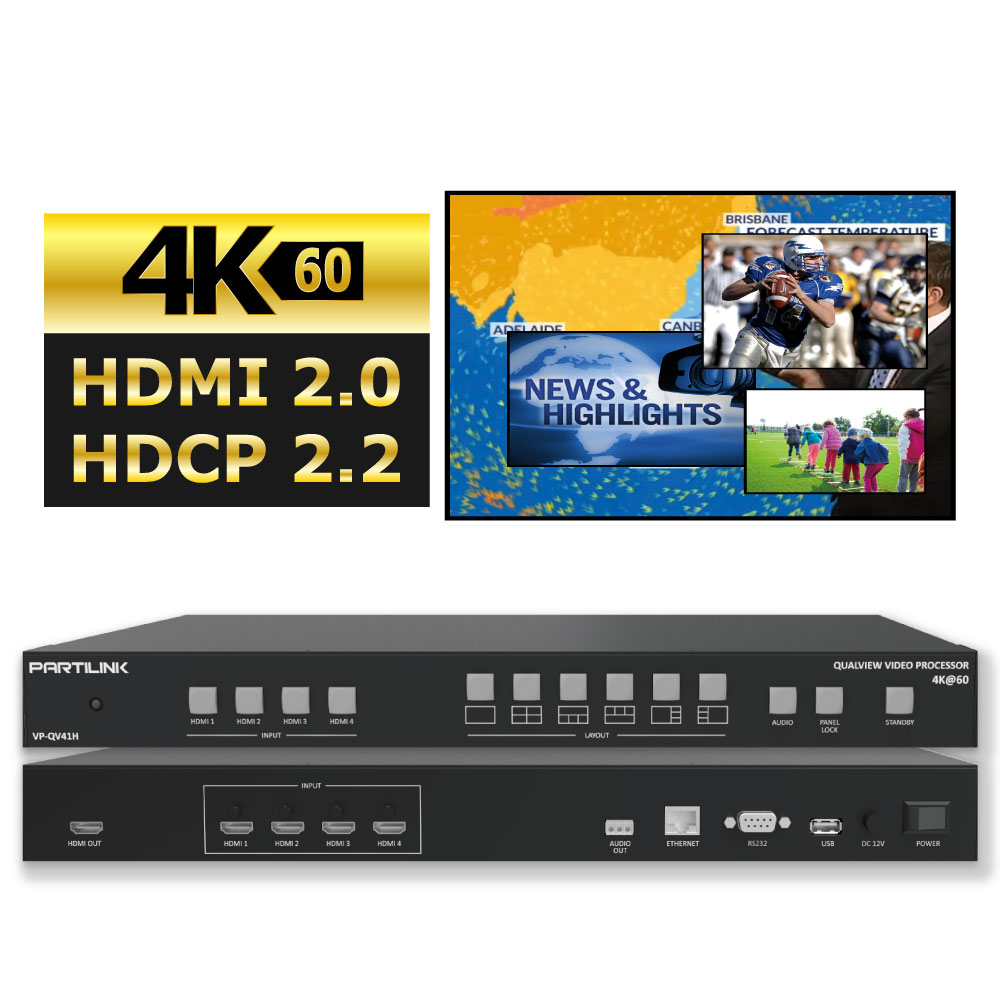

The Partilink VP-QV41H Multiview Video Processor is a user-friendly HDMI 2.0 video scaler and multiviewer
designed to view max. 4 video sources on one 4K@60Hz 4:4:4 display simultaneously. It handles any input resolution up to 4K@60Hz to output maximum 4k@60Hz or downscale the resolution, adjusts its aspect ratio to match the native resolution of your screen to display.

FEATURES
-
Fast switching between input channels and combined multiple source images on single monitor
-Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2 sources
-Input resolution up to 4K@60Hz, 4:4:4 color sampling
-
Output resolution up to 4K@60Hz, 4:4:4 color sampling

-Upscaling up to 4K@60Hz, 4:4:4 color sampling and able to downscale as well

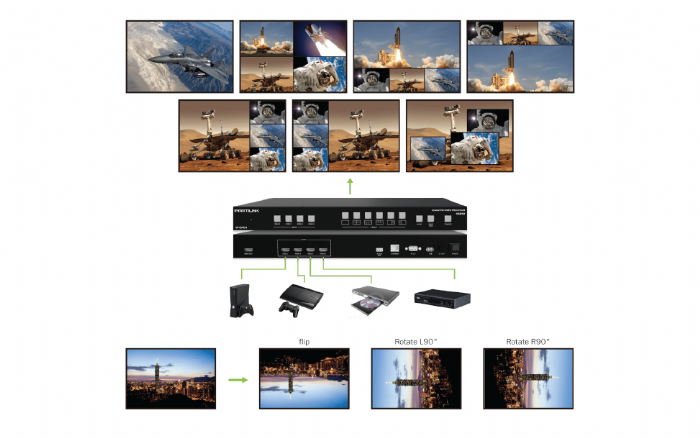

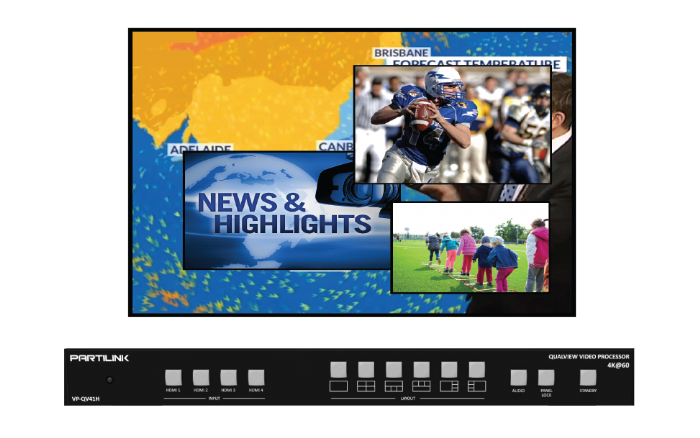

-PiP, PoP and multi-view layout configurations
-
14
different screen layouts by 6 preset screen layouts and extra 8 customized screen layouts

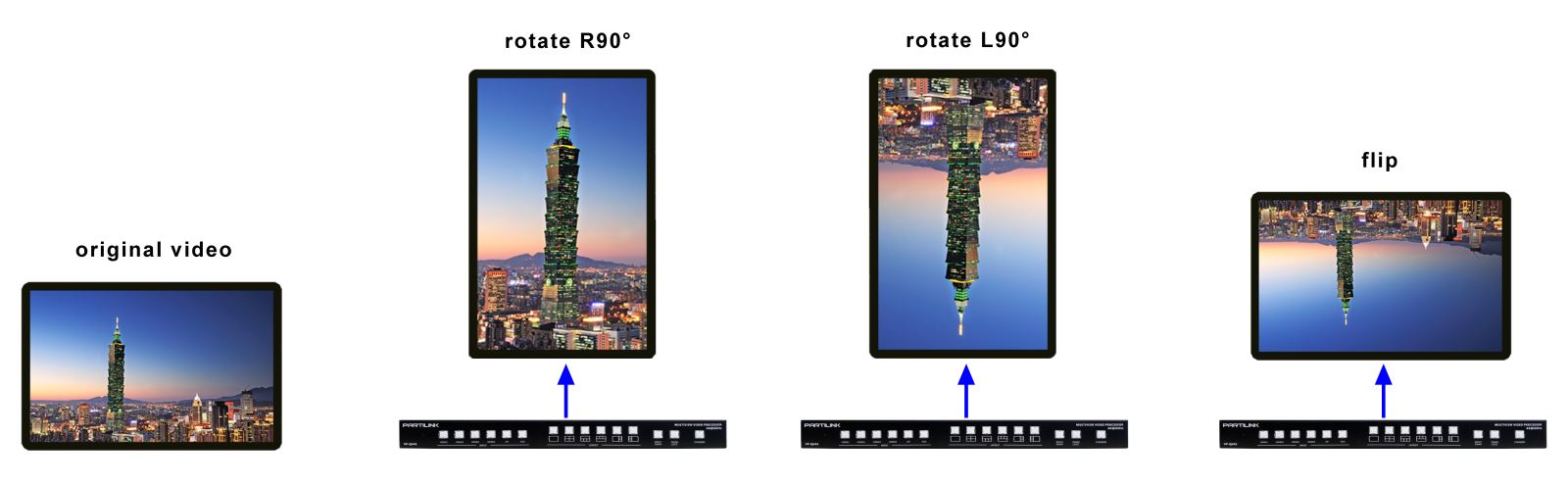

-Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen layout
-Stereo audio output
-
Control by front panel button, IR remote control, RS232/Telnet and Web UI control

-Firmware upgrade via USB port
APPLICATION
-
Hospitality in lobby, hospital, clinic
-Conference room presentation
-Advertising in shopping mall, supermarket, restaurant,
-Broadcast in airport, bus or train station, classroom, Casino
-Rental and staging
-Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
-Integrating with DVR, IP camera as a surveillance system
-Monitoring in bank and stock market

MODEL NO.

VP-QV41H

HARDWARE

System Structure

pure hardware

Operating System

no CPU and operating system

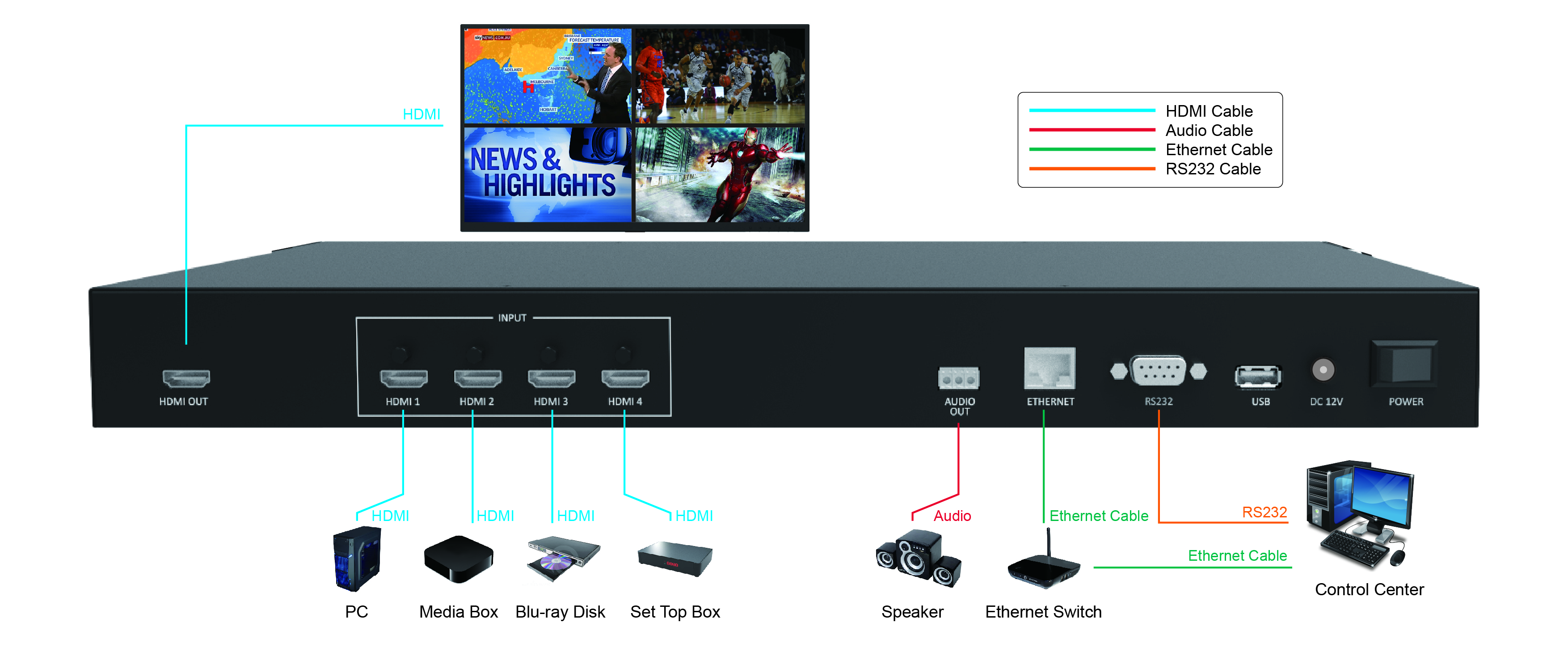

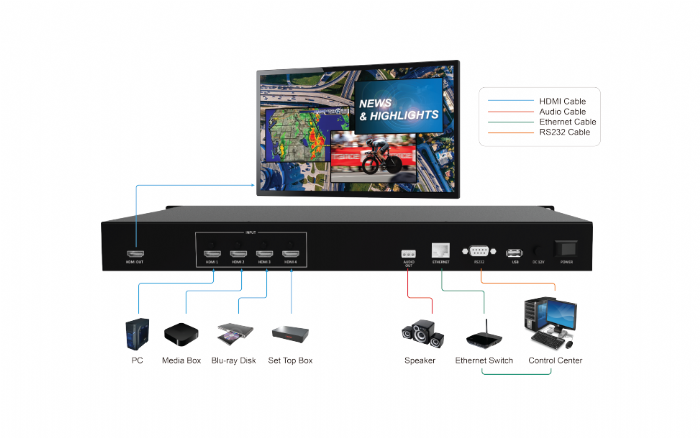

INPUT/ OUTPUT

Inputs

4 x HDMI 2.0 with locking

Output

1 x HDMI 2.0 with locking

Audio Output

terminal block 3 pole, stereo

IMAGE PROCESSING

Display Mode

full screen, quad view, PiP, PoP

Input Resolution

up to 3840 x 2160@60Hz, 4:4:4 color sampling

Max Output Resolution

up to 3840 x 2160@60Hz, 4:4:4 color sampling

Output Resolutions

3840x2160 - 60Hz, 50Hz, 30Hz              1920x1080 - 60Hz

1280x720 - 60Hz                                  720x480 - 60Hz

Output Color Depth

8 bpc (24 bit/px)

Scaler

scaling up to 4K@60Hz, 4:4:4 color sampling and downscaling as well

Video Bandwidth

up to 18 Gbps

HDMI Compliance

HDMI 1.4 and HDMI 2.0

HDCP Compliance

HDCP 1.4 and 2.2

CONTROL METHODS

Front Panel Buttons

4 x select HDMI 1,2,3,4 input and/or audio, 6 x display layout, 1 x Audio Selection, 1 x Panel lock, 1x Standby

IR

1 x IR remote control

RS232/ Telnet

1 x D9 female connector / compatible with third party control system

Ethernet Port

1 x RJ45

Web UI

browser / touch screen

STABILITY

Safety

hardware structure, no risk of virus interference

Running Time

no auto-reboot during 365 days/year, 7days/7, 24h/24

FIRMWARE

Possible Upgrade

1 x USB 2.0

LED INDICATOR

Input

blue backlight

Output

blue backlight

Panel Lock

blue backlight

Standby On

red backlight

Standby Off

green backlight

POWER

Internal Power Supply

DC 12V/2A, locking barrel connector

Power Consumption

15W

Power Adaptor

universal power adapter

ENVIRONMENT

Operating Temperature

0 °C~45°C

Operating Humidity

20~90% RH

Storage Temperature

-20 °C~60 °C

PHYSICAL

Dimensions

440.4 x 230 x 45 mm (L x W x H, standard 1U)

Fixing Components

Rear bracket, footpad and screws

Weight

3.0 KG
