HDMI to DP 4K60 CONVERTER

P4K2-H1D2
HDMI to DisplayPort Converter & 1x2 Distribution Amplifier Delivering Cinematic 4K Resolution & Supports Deep Color.



  • HDMI 2.0 Input (x1)
  • DisplayPort 1.2A Outputs (x2)
  • Superior video quality 4K60 (4:4:4)
  • 18Gbps Bandwidth
  • HDCP 2.2 & Earlier
  • Locking Power Connector & Power Adapter
  • Plug and play (PnP)
  • Compact & Slim design (SFF)

Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • 3d ready
  • 18 gbps (bandwidth)
  • HDMI 2.0
  • DP1.2a
  • Stereo 192kbps
  • HDCP 2.2
  • HDCP 1.4
  • picture on picture
  • Shipping Now
Try me

OVERVIEW

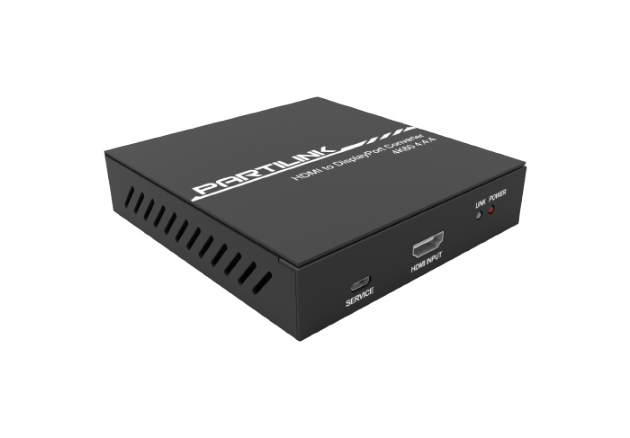

P4K2-H1D2 is a HDMI 2.0 to DisplayPort 1.2a converter (X1 HDMI to x2 DisplayPort).
It supports resolution up to 4Kx2K@60 4:4:4 color sampling.
Beside the converter function, i
t can be taken as a HDMI to DP 1x2 splitter

FEATURES
-
DisplayPort 1.2a & HDMI 2.0 compliant
-HDMI input supports video bandwidth up to 18Gbps.
-HDCP 1.4 / 2.2

-DisplayPort output supports link rate RBR/HBR/HBR2
-
Resolution up to 4Kx2K@60 4:4:4 8bits
-Stereo audio
-Firmware upgrade via USB port

APPLICATION

MODEL NO.

P4K2-H1D2

INPUT INTERFACE

1 x HDMI Type A female

Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4

OUTPUT INTERFACE

2 x DisplayPort female

Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4

AUDIO

Stereo, 32k~192kHz sampling rate

POWER

DC 12V/2A, locking barrel connector

ENVIRONMENT

Operating temperature 0~45°C Operating humidity 20~90% Storage temperature -20~60°C

DIMENSION

108 x 114 x 24.6 mm (W x L x H)

WEIGHT

356 G

FILE NAME FILE FORMAT SIZE DATE
DATASHEET_HDMI to DP CONVERTER _P4K2-H1D2 PARTILINK_4June2019 pdf 307 KB 2019-06-04 Download

Please fill in our online application form to receive a personalised Price offer

In addition to general contact information, please indicate:
- Product name &/or part number
- Quantity per product
- Lead time to delivery required
- Country of Delivery
- Company Website

Many Thanks !
